LensTip.com

Lens review

Canon EF 70-200 mm f/4L IS USM

9 October 2007
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

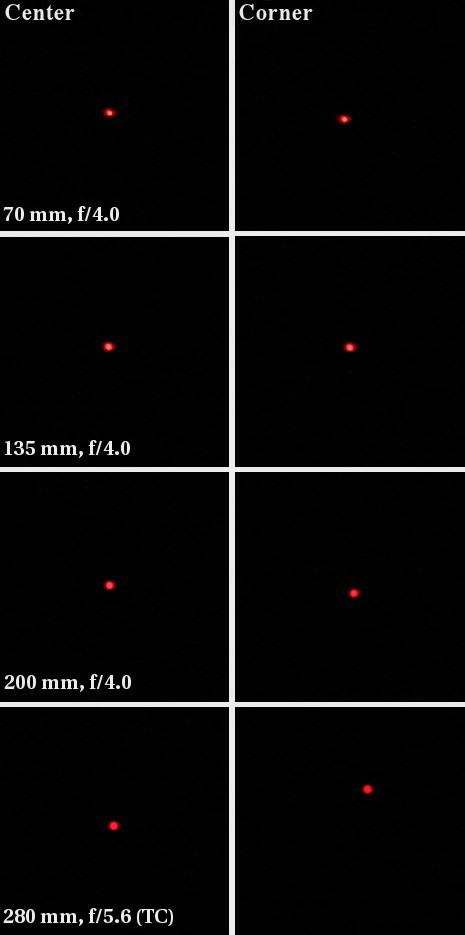

The lens corrects the coma very well. It is very hard to notice the coma’s influence on the diode picture at 135-200 mm. It is visible at 70 mm but the effect is very modest. The usage of the converter doesn’t result in any defect boom.

Canon EF 70-200 mm f/4L IS USM - Coma and astigmatism


The average astigmatism value for the 70-200 f/4L IS reached 5.7%. The defect was less noticeable as the focal length increased from 9% at 70 mm to 3.2% at 200 mm. When we add other optical combinations using the converter, the astigmatism increased to 5%. The overall outcome in this category is very good with a slight weakness at the 70 mm focal length.
