LensTip.com

Lens review

Leica Apo-Summicron-M 75 mm f/2.0 Asph

18 June 2010
Arkadiusz Olech

8. Vignetting

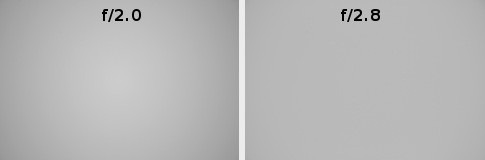

Wide angle M system lenses have high vignetting. Fortunately, in the case of telephoto lenses, the situation is much better because, although the distance of the sensor from the rear element is still small, it doesn’t force wide angles of light on outermost parts of the frame. In practice, the situation looks like in the pictures of evenly lit surface, which we presented below.

Leica Apo-Summicron-M 75 mm f/2.0  Asph - Vignetting




Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

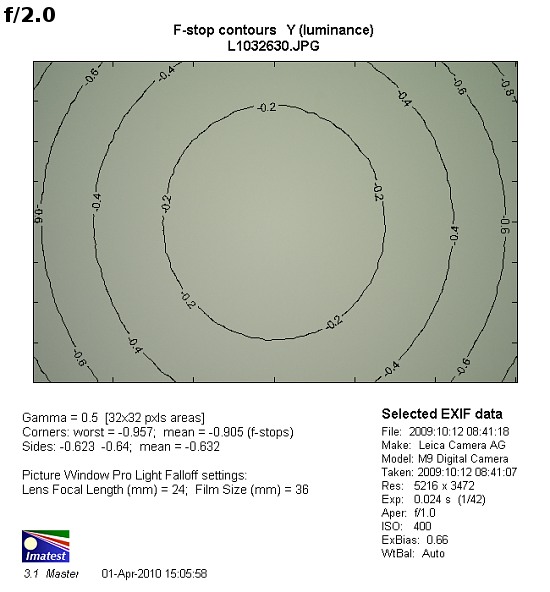

The measurements confirm our visual impressions. At the maximum relative aperture the vignetting is 27% (-0.91 EV) which is a moderate result for full frame. What’s more important, the problem practically disappears on stopping down the aperture to f/2.8 because then the brightness loss in the frame corners decreases to the level of 9%.


Leica Apo-Summicron-M 75 mm f/2.0  Asph - Vignetting
