LensTip.com

Lens review

Sigma 10-20 mm f/4-5.6 EX DC HSM

13 October 2010
Arkadiusz Olech

3. Build quality

As every product from the EX series marked with a golden stripe, the Sigma 10-20 mm makes a solid impression. Its housing feels comfortable in the hand and looks very stylishly, matte black contrasted with millions of shiny specks sealed in the housing. Its bayonet mount is of course made of metal.

Sigma 10-20 mm f/4-5.6 EX DC HSM - Build quality

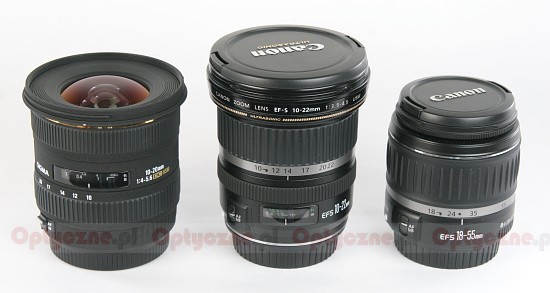

For its ultra wideangle parameters the Sigma is not big. The producer made it smaller at the expense of its fastness – here the lens distinctly lags behind its competitors. Perhaps it wasn’t such a senseless move after all, because working with a landscape lens we often don’t need huge amounts of light and equally often we support it using a tripod. The comparison between the tested Sigma and its immediate competitors, the Canon 10-22 mm and the kit EF-S 18-55 mm, is presented in the photo below.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Sigma 10-20 mm f/4-5.6 EX DC HSM - Build quality

Contrary to the Canon, the Sigma changes its dimensions on passing from one focal length to the other. The change is very slight, though and the lens expands by a bit over 1 cm when zooming from 10 to 20 mm.

What was put inside? With such dimensions and such a wide angle the construction can’t be simple and it isn’t. We deal here with 14 elements in 10 groups. As many as three of them are aspherical (two big front elements and the last one) and three others are made of low-dispersion SLD glass. Additionally the Sigma 10-20 mm features an aperture with six diaphragm blades which can close the lens down to f/22. You get sharp images from the distance of 24 cm.

Sigma 10-20 mm f/4-5.6 EX DC HSM - Build quality

The fact that the lens was equipped with the HSM mechanism is its other strength – the autofocus is supposed to work silently and efficiently. The focusing is internal so the outer element doesn’t rotate, making the instrument a joy to use with different kinds of filters and a petal-type lens hood, included in box, as well.

The lens is available for purchase in the Canon, Konica- Minolta, Nikon, Pentax and Sigma mounts.
