LensTip.com

Lens review

Panasonic G 14 mm f/2.5 ASPH.

16 November 2010
Arkadiusz Olech

4. Image resolution

The resolution test of the Panasonic 2.5/14, like that of the Panasonic 1.7/20, tested by us not so long ago, was based on RAW files from the Olympus E-PL1. This camera features a sensor very densely packed with pixels and a very weak AA filter so it can generate high MTF values – in fact the highest from all cameras used by us for testing lenses. Fortunately the E-PL1 doesn’t’ sharpen RAW files and its software influences both measurement coordinates in the same way so it is a quite good instrument for testing optics.

The measurement margin of error for the values, presented on the graph below, ranged from 0.6 to 1.5 lpmm.

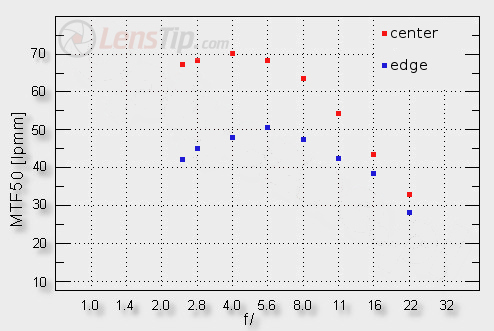

Panasonic G 14 mm f/2.5 ASPH. - Image resolution



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The results reached by the Panasonic 2.5/14 bring mixed feelings. Certainly we can find a lot of bright spots and the lens should be praised for them. Here I can mention the performance at the maximum relative aperture in the frame centre, where the lens gives very sharp images, high above the decency level which is set near 44-45 lpmm. Unfortunately the fastness of the lens doesn’t allow it to achieve such high MTF values as the 1.7/20 model. That latter could get to 75 lpmm whereas the device tested here reaches just 70 lpmm. As we mentioned it before, it is due to worse fastness. The 4/3 system lenses perform the best near f/4.0 aperture. When it comes to the Panasonic 2.5/14, that value is in the distance of only 1.3 EV from the maximum relative aperture so the influence of optical aberrations is still noticeable. On further stopping down that influence decreases but then diffraction makes itself felt.

A small 4/3 system sensor makes it possible to construct wide-angle lenses which fare really great on the edge of the frame. They are noticeably bigger, though, not like the “pancake” tested here. Most probably these small dimensions are the reason why the image quality on the edge of the frame doesn’t impress us much. Firstly it really lags behind the performance in the frame centre; what’s more at the maximum relative aperture we land a bit below the decency level. Fortunately it’s enough to stop the aperture down to f/2.8 to make this problem disappear. On further stopping down the image quality improves too but very slowly. The best results the lens reaches near f/5.6 where it exceeds a bit the level of 50 lpmm. It’s almost 20 lpmm lower than in the frame centre, though…

To sum up the lens deserves an excellent achievement grade for the frame centre resolution but for the performance on the edge I would give it only a pass mark plus.

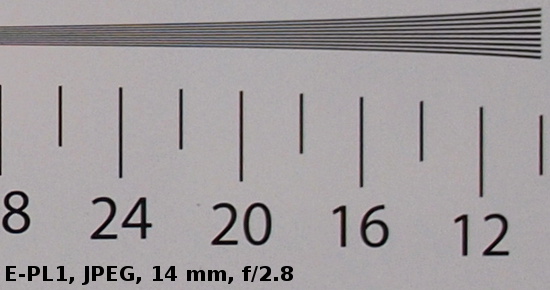

At the end of this chapter we present the crops of our test chart, taken from JPEG files which were saved along RAW files. We would like to remind here that the E-PL1, even if set on the lowest level of sharpening (which is called –2 in the menu), sharpens JPEG quite significantly (the MTFs measured on JPEGs are about 40% higher than those measured on corresponding RAW files).


Panasonic G 14 mm f/2.5 ASPH. - Image resolution
