LensTip.com

Lens review

Samsung NX 18-55 mm f/3.5-5.6 OIS

31 December 2010
Arkadiusz Olech

6. Distortion

As it was the case of the Sony E 18–55 mm f/3.5–5.6 OSS, the distortion measurements don’t impress us here as they are very similar to those of the Sony. At the widest angle we get very distinct barrel distortion amounting to –4.38% which near 30 mm becomes zero and already at 35 mm changes into pincushion of 1.01%. What’s worse it increases along with the increase of the focal length and at 55 mm it reaches a quite significant value of 1.64%. Distortion correction is evidently a problem for the designers of all mirrorless systems’ kit lenses.


Samsung NX
18–55 OIS
Sony E
18–55 OSS
Olympus M.Zuiko
14–42
Canon EF-S
18–55 IS
14–20 mm
−4.38%
−4.16%
−5.48%
−3.96%
30–35 mm
1.01%
2.16%
1.29%
−0.17%
42–55 mm
1.64%
1.52%
2.86%
0.42%




Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

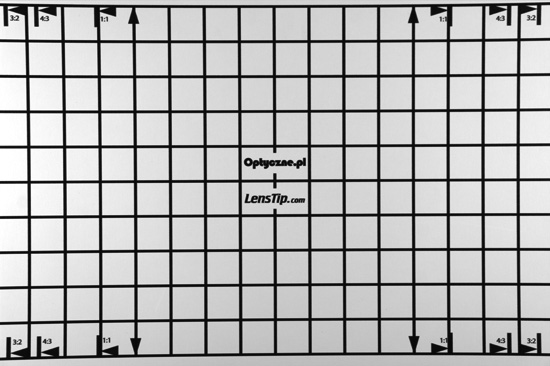

Samsung NX 18-55 mm f/3.5-5.6 OIS - Distortion

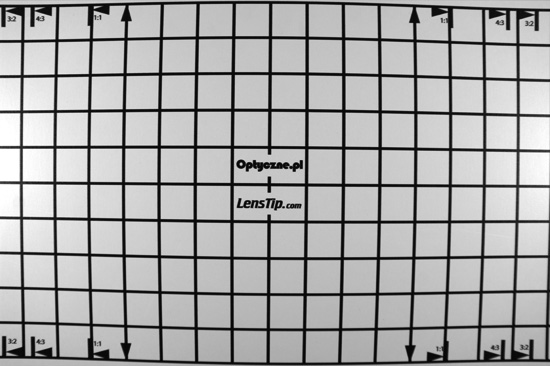

Samsung NX 18-55 mm f/3.5-5.6 OIS - Distortion

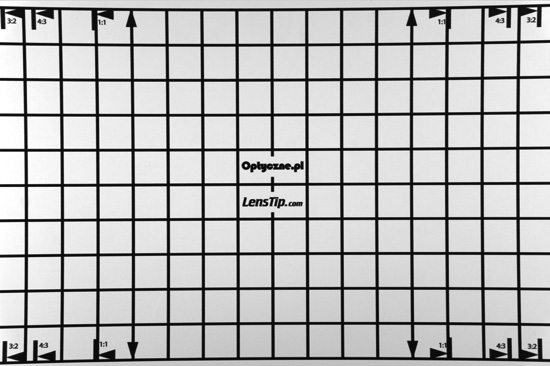

Samsung NX 18-55 mm f/3.5-5.6 OIS - Distortion
