LensTip.com

Lens review

Samsung NX 18-55 mm f/3.5-5.6 OIS

31 December 2010
Arkadiusz Olech

8. Vignetting

As it was done in the test of the Samsung NX 30 mm f/2.0 we must emphasize also here the fact that our measurements were based on RAW files. The Samsung NX10, used in the test, shows substantial differences between RAW and JPEG files – the latter are cropped and show a bit lower brightness loss in the frame corners.

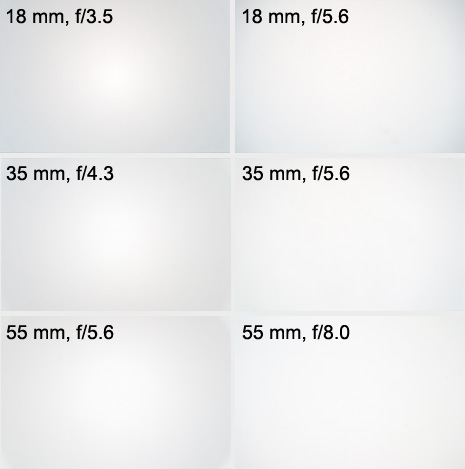

The crops below show test photos’ thumbnails for three focal lengths and aperture values near minimum.

Samsung NX 18-55 mm f/3.5-5.6 OIS - Vignetting


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

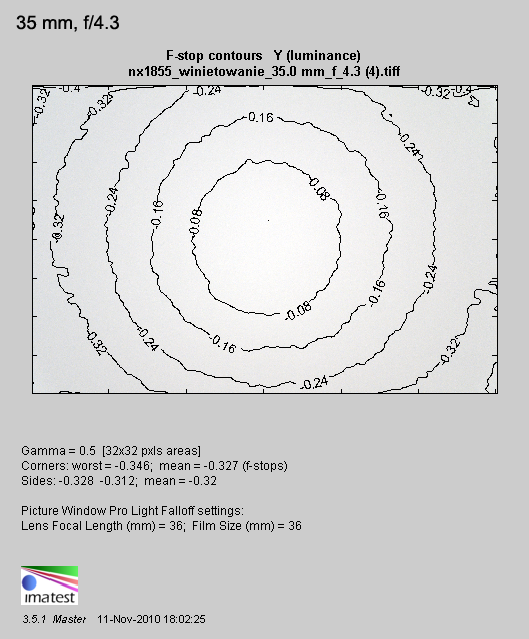

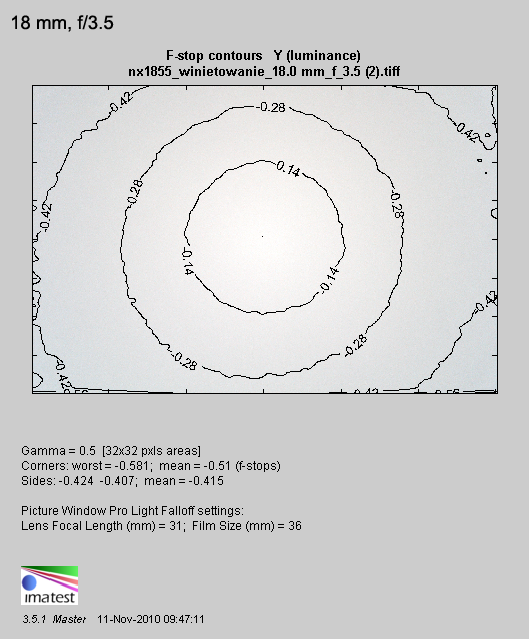

Vignetting is visible to the naked eye but it is also far from bothersome. Its highest level, amounting to 16% (-0.51 EV), can be seen at the widest angle and practically is independent of the value of the aperture used. With the increase of the focal length the vignetting decreases to 11% (−0.33 EV) at 35 mm and 8% (−0.25 EV) at 55 mm. Further stopping down makes the level of vignetting decrease for these focal lengths to 9% and 6% respectively by f/16.0 aperture.

Samsung NX 18-55 mm f/3.5-5.6 OIS - Vignetting

Samsung NX 18-55 mm f/3.5-5.6 OIS - Vignetting

Samsung NX 18-55 mm f/3.5-5.6 OIS - Vignetting
