8. Vignetting

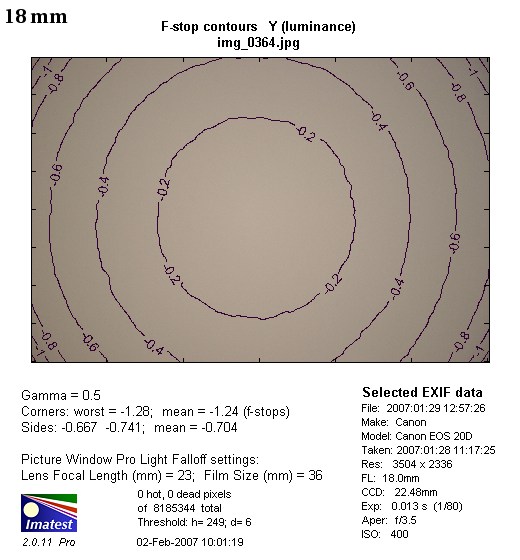

The situation is, unfortunately, similar to the situation with chromatic aberration: the shorter the focal length, the worse. At 18 mm focal length and open aperture the light fall off in the corners of the frame is as high as 25% (1.2 times the value of the diaphragm). There is very little improvement when we stop down the lens, and at f/8 the light fall off is still as high as 16% (0.52 the value of the diaphragm).

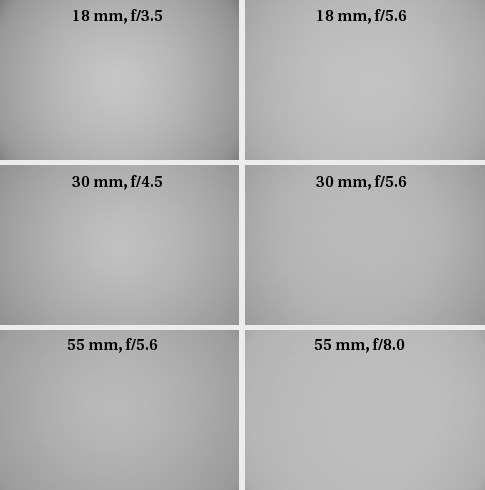

Canon EF-S 18-55 mm f/3.5-5.6 II - Vignetting

The situation is a bit better at the 30 mm focal length. The maximum light fall off in the corners of the frame is 24% (0.8 values of the frame) and stopping down the lens to f/8 makes the vignetting decrease to an acceptable level of 11% (0.34 times the value of the diaphragm).

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

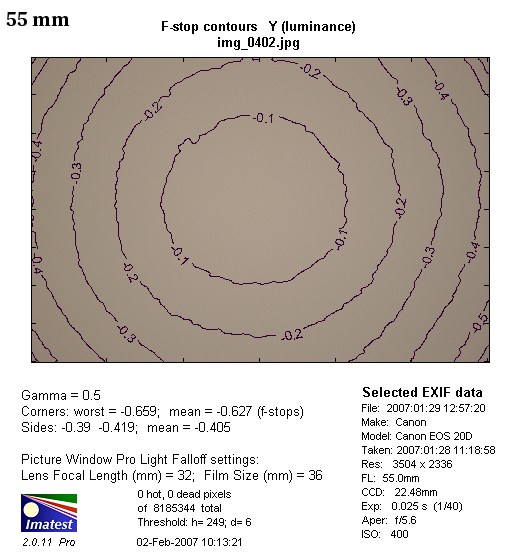

At 55 mm focal length the situation is satisfactory although on the other hand it is thanks to the f/5.6 aperture in this case. Here the vignetting is 19% (0.62 value of a diaphragm) and drops quickly to 12% at f/8 and 8deg at f/11.

There is a rumor that it is possible to get rid of the lens’s bayonet bushing, which makes it possible to mount the lens to all the EF system Canons, even those with a small frame film detector. I wonder how the 18 mm focal length vignetting would look like since it is so high with a small APS-C detector.
