Canon EF-S 18-55 mm f/3.5-5.6 IS II

25 May 2011
Arkadiusz Olech

8. Vignetting

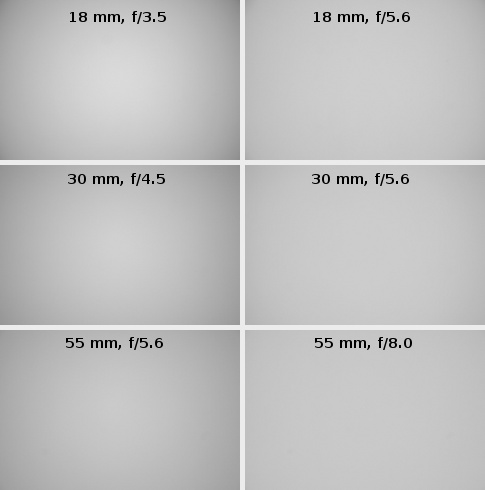

When it comes to the vignetting the Canon EF-S 18-55 mm f/3.5-5.6 IS at the beginning, in the middle and at the end of the focal range had the maximum results amounting to 39%, 24% and 20% respectively. Because of the change of the casing in this optical category we can expect certain noticeable changes in results. Let’s have a glance at the thumbnails of an uniformly lit surface.

Canon EF-S 18-55 mm f/3.5-5.6 IS II - Vignetting




Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

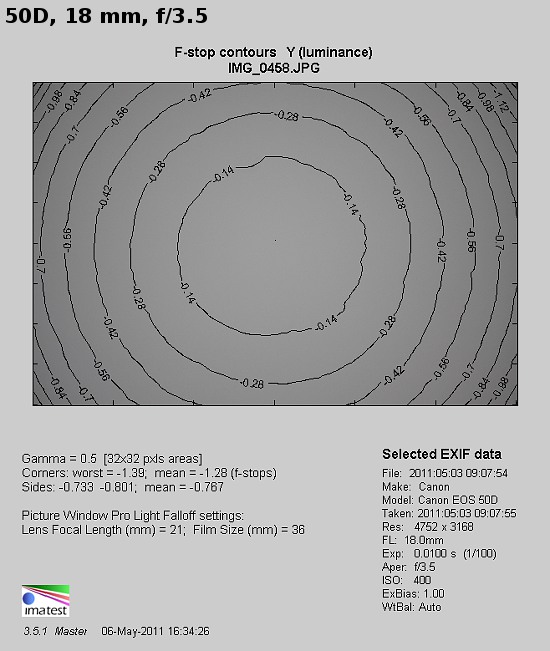

In the case of 18 mm focal length and by f/3.5 the vignetting is 36% (-1.28 EV). By f/4.0 that value descends to 30% (-1.03 EV) and by f/5.6 it amounts to 18% (-0.56 EV). The brightness loss in the frame corners becomes negligible only by f/8.0, where it is 13%. On further stopping down you can’t notice any significant, measurable drop of this aberration’s level.

At 30 mm and wide open the vignetting reaches 27% (-0.90 EV) and it decreases to 13% (-0.40 EV) by f/5.6 and to 9% (-0.28 EV) by f/8.0.

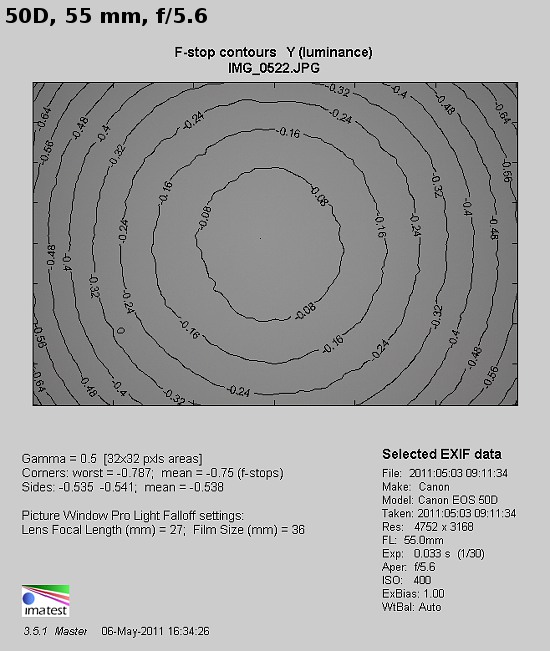

At the maximum focal length and by f/5.6 we get the result of 23% (-0.75 EV). If you apply f/8.0 you can reduce the vignetting to an imperceptible level of 8% (-0.25 EV)

Compared to the predecessor we can notice a slight decrease of the vignetting level at the shortest focal length and a slight increase for longer focal lengths. The differences are there but they are really slight and once again, can stem from not only the change of the casing but also from measurement errors and differences between particular specimens.

Canon EF-S 18-55 mm f/3.5-5.6 IS II - Vignetting

Canon EF-S 18-55 mm f/3.5-5.6 IS II - Vignetting
