6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Let’s remind here that in the case of the older 18-55 mm model, equipped with image stabilization, the distortion at 18, 35 and 55 mm focal lengths was respectively −3.96%, −0.17% and 0.42%. The results we got for the new kit are a bit better because at 18, 30 and 55 mm they amounted to −3.52%, −0.40% and 0.40% respectively. It is difficult to state unambiguously whether it is any improvement or the difference is again due to the quality dispersion. However, especially at the shortest focal length, the result is noticeably better. It isn’t caused by measurement errors because these, in the case of distortion, typically are on the level of 0.1% (0.2% at most in special cases).

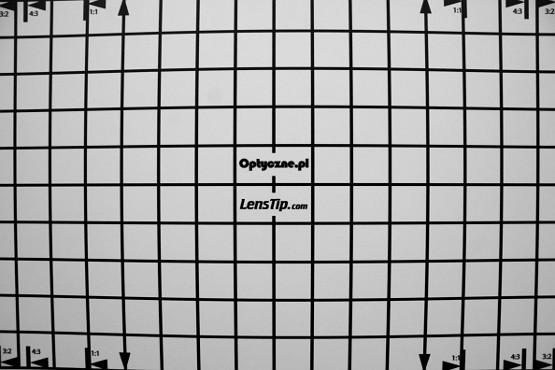

Canon 50D, 18 mm
Canon EF-S 18-55 mm f/3.5-5.6 IS II - Distortion

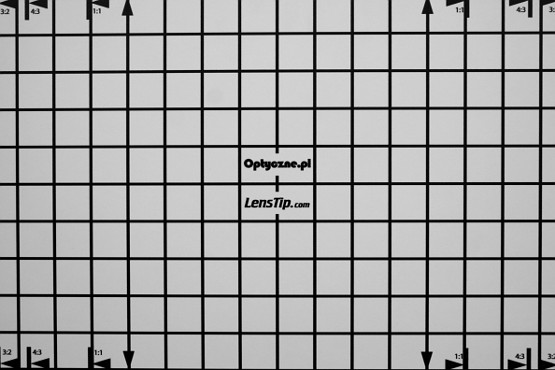

Canon 50D, 30 mm
Canon EF-S 18-55 mm f/3.5-5.6 IS II - Distortion

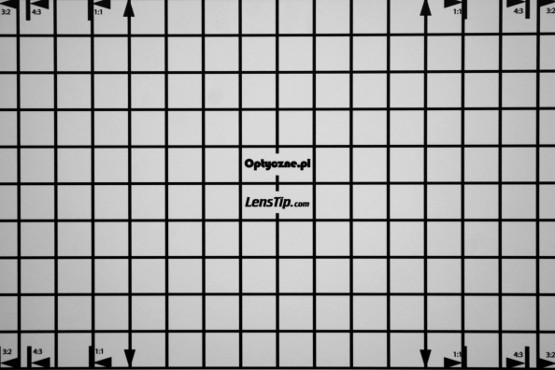

Canon 50D, 55 mm
Canon EF-S 18-55 mm f/3.5-5.6 IS II - Distortion
