Samsung NX 16 mm f/2.4

5 March 2012
Arkadiusz Olech

7. Coma, astigmatism and bokeh

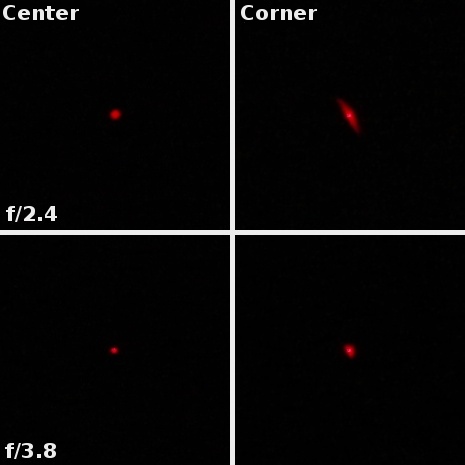

As you can notice in crops, shown below, at the maximum aperture the coma is very high and it influences significantly the image quality decrease of the edge of the frame. Fortunately on stopping down by 1 EV that aberration diminishes a lot.

Samsung NX 16 mm f/2.4 - Coma, astigmatism and bokeh

The astigmatism in the tested lens is negligible. An average difference between horizontal and vertical MTF50 function values amounted to just 2% which is an excellent result.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

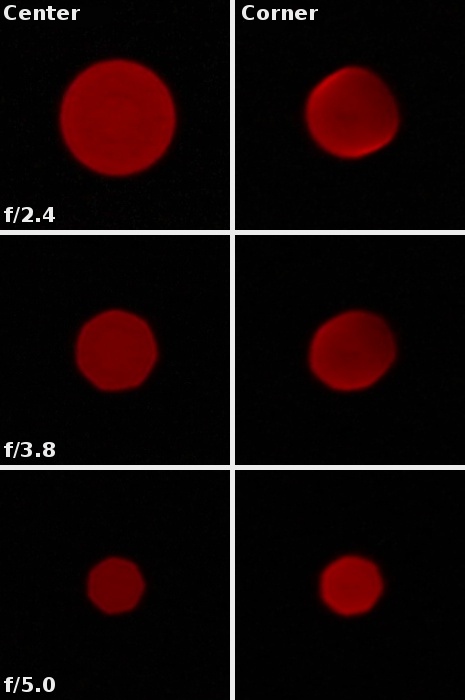

The photos below show a defocused image of a diode, positioned in the frame centre and in the corner. You can notice that in the frame corners the light is distributed very unevenly and it might suggest not very nice fuzzy areas.

Samsung NX 16 mm f/2.4 - Coma, astigmatism and bokeh
