LensTip.com

Lens review

Sigma 30 mm f/2.8 EX DN

29 March 2012
Arkadiusz Olech

8. Vignetting

On RAW and JPEG files the vignetting is very similar. The RAW results, presented below, are by about 1-2% higher than those reached on JPEG files. The difference stems from the fact that JPEG files compared to RAWs are slightly cropped, not because the camera body corrects that aberration.

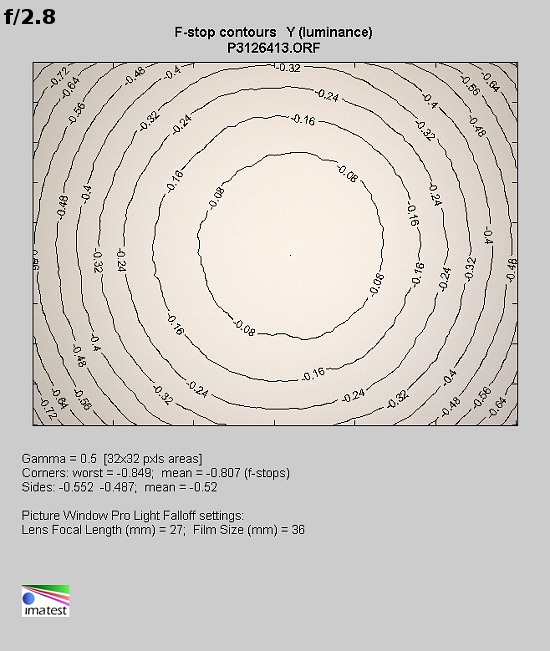

At the maximum relative aperture the vignetting is noticeable without any problems. The value of 24% (-0.81 EV) this lens reaches there is certainly not bothersome though. On applying f/4.0 aperture the level of that aberration decreases to 14% (-0.45 EV). By f/5.6 and f/8.0 the vignetting becomes imperceptible, amounting to 11% and 10% respectively.

You should remember that the presented files concern the Micro 4/3 sensor so the vignetting on a bigger APS-C detector will certainly be higher.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

JPEG RAW
f/2.8 f/2.8
Sigma 30 mm f/2.8 EX DN  - Vignetting Sigma 30 mm f/2.8 EX DN  - Vignetting
f/4.0 f/4.0
Sigma 30 mm f/2.8 EX DN  - Vignetting Sigma 30 mm f/2.8 EX DN  - Vignetting
f/5.6 f/5.6
Sigma 30 mm f/2.8 EX DN  - Vignetting Sigma 30 mm f/2.8 EX DN  - Vignetting



Sigma 30 mm f/2.8 EX DN  - Vignetting
