LensTip.com

Lens review

Voigtlander Nokton 17.5 mm f/0.95 Aspherical

26 September 2012
Arkadiusz Olech

8. Vignetting

We were very curious how the Nokton would fare in this category. Already the Voigtlander 0.95/25 showed a vignetting level of as much as 50% and here we deal with even more extreme parameters, which raise the standard significantly. Thumbnails below show that there are problems and quite serious ones.

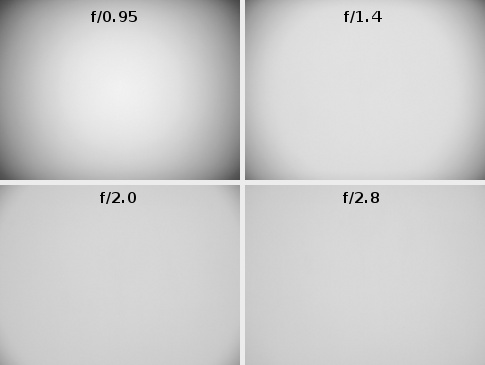

Voigtlander Nokton 17.5 mm f/0.95 Aspherical - Vignetting

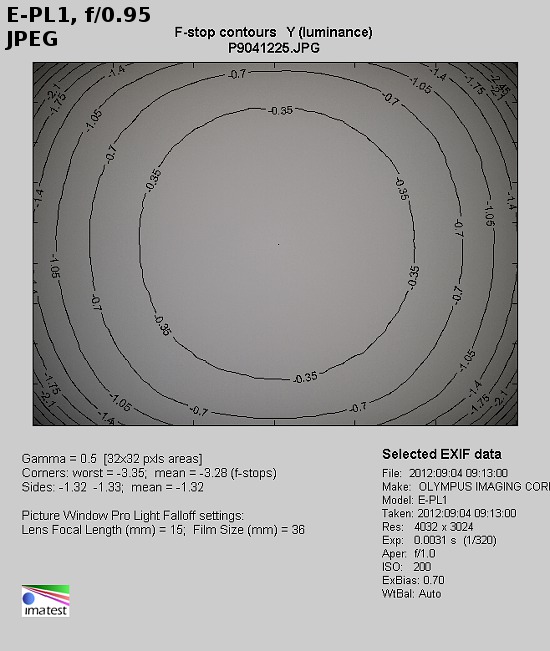

At the maximum relative aperture the brightness loss in the frame corners goes to an exceptionally high value of 68% (-3.28 EV). After using f/1.4 the vignetting is still huge, reaching 48% (-1.88 EV). That aberration becomes moderate on stopping down the lens to f/2.0, where it is 25% (-0.82 EV). You can speak about low or negligible level from f/2.8 aperture because the vignetting reaches just 11% (-0.33 EV) there.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Are these results really as weak as it seems at first glance? Let’s ponder over that question for a while. The Nokton 0.95/17.5 is a very good equivalent of 1.4/35 models for full frame. It provides the same angle of view and not much worse depth of field; it also allows us to improve the shutter speed (or use lower ISO). How fare 1.4/35 class lenses when it comes to vignetting on full frame? Their performance is very similar. A reputable L-series Canon lens has as much as 70% of light fall-off and the Nikkor 1.4/35G - 60%. The Samyang fared the best in this group, losing about 48% of its brightness.

Voigtlander Nokton 17.5 mm f/0.95 Aspherical - Vignetting
