Sigma C 17-70 mm f/2.8-4.0 DC Macro OS HSM

13 March 2013
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The immediate predecessor of the tested lens at the wide angle had a noticeable barrel distortion which value amounted to -3.28%. That aberration decreased quickly as the focal length increased, changed the sign and, in the 50-70 mm range reached the level of +1.1%. The new lens compares unfavorably with that performance. At 17 mm we get “barrel” of -4.13% so noticeably higher. At 24 mm you still see barrel deformations but smaller this time, reaching -0.92%. At 35 mm there is already pincushion distortion of 0.52% which increases to 0.88% at 50 mm. After passing to 70 mm the distortion still gets slightly higher, up to a value of 0.99%.

Introducing a new optical construction allowed to decrease the distortion level in the 50-70 mm range (still that effect is so slight that almost imperceptible) but it increased in the place where it is the most bothersome so at 17 mm. Out of the frying pan into the fire…

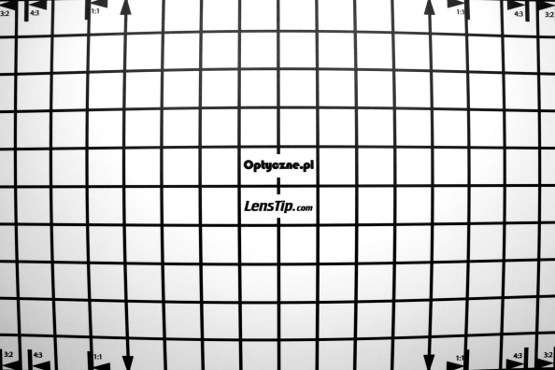

Canon 50D, 17 mm
Sigma C 17-70 mm f/2.8-4.0 DC Macro OS HSM - Distortion

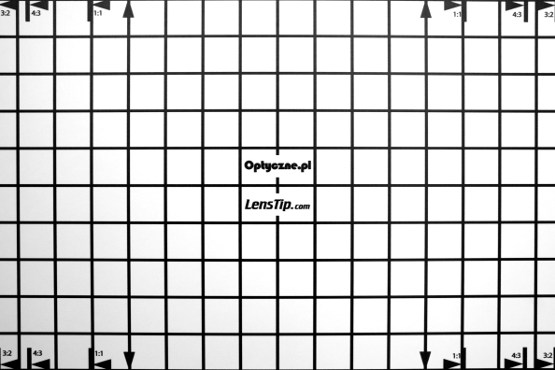

Canon 50D, 24 mm
Sigma C 17-70 mm f/2.8-4.0 DC Macro OS HSM - Distortion

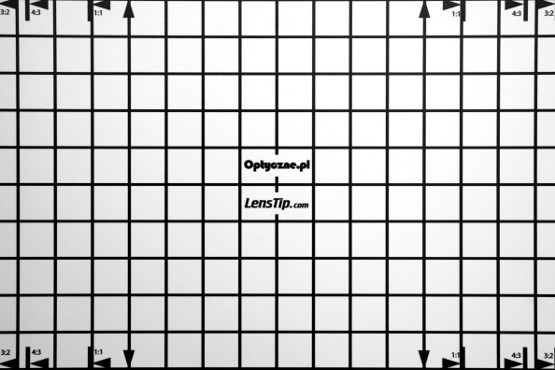

Canon 50D, 35 mm
Sigma C 17-70 mm f/2.8-4.0 DC Macro OS HSM - Distortion

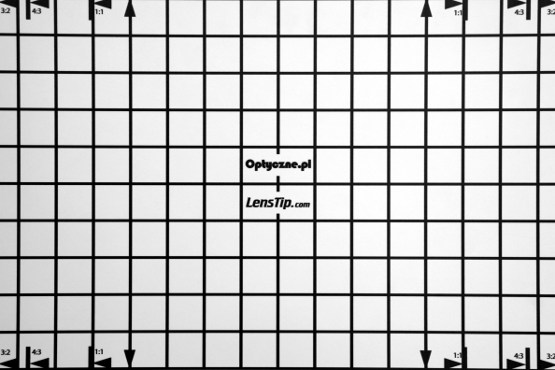

Canon 50D, 50 mm
Sigma C 17-70 mm f/2.8-4.0 DC Macro OS HSM - Distortion

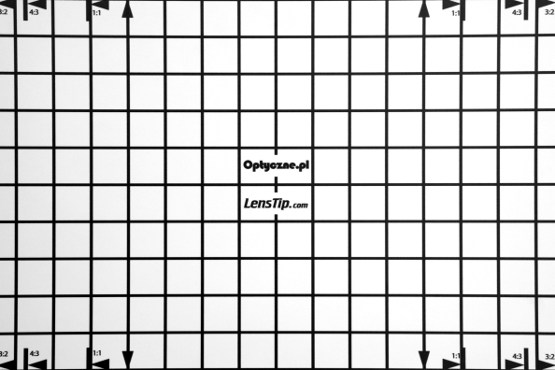

Canon 50D, 70 mm
Sigma C 17-70 mm f/2.8-4.0 DC Macro OS HSM - Distortion
