Fujifilm Fujinon XF 14 mm f/2.8 R

17 October 2013
Arkadiusz Olech

8. Vignetting

The Fujifilm X system cameras correct automatically the vignetting of JPEG files; that’s why we always check the level of this aberration in JPEG and RAW files at the same time. In the case of the Fujinon 2.8/14 the level of that aberration can be assessed by looking at the thumbnails below.

JPEG RAW
f/2.8 f/2.8
Fujifilm Fujinon XF 14 mm f/2.8 R - Vignetting Fujifilm Fujinon XF 14 mm f/2.8 R - Vignetting
f/4.0 f/4.0
Fujifilm Fujinon XF 14 mm f/2.8 R - Vignetting Fujifilm Fujinon XF 14 mm f/2.8 R - Vignetting
f/5.6 f/5.6
Fujifilm Fujinon XF 14 mm f/2.8 R - Vignetting Fujifilm Fujinon XF 14 mm f/2.8 R - Vignetting


The users of the JPEG format won’t have any serious reasons to complain – the vignetting here is medium at most. At the maximum relative aperture it reaches 24% (-0.78 EV) and it decreases slightly to 22% (-0.71 EV) on stopping down to f/4.0. A quite significant drop of vignetting can be observed when you pass from f/4.0 to f/5.6 where that aberration is just 16% (-0.52 EV) After further stopping down you don’t see any measurable change of the vignetting level – in the range from f/8 to f/16 we got values reaching near 15% (-0.47 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

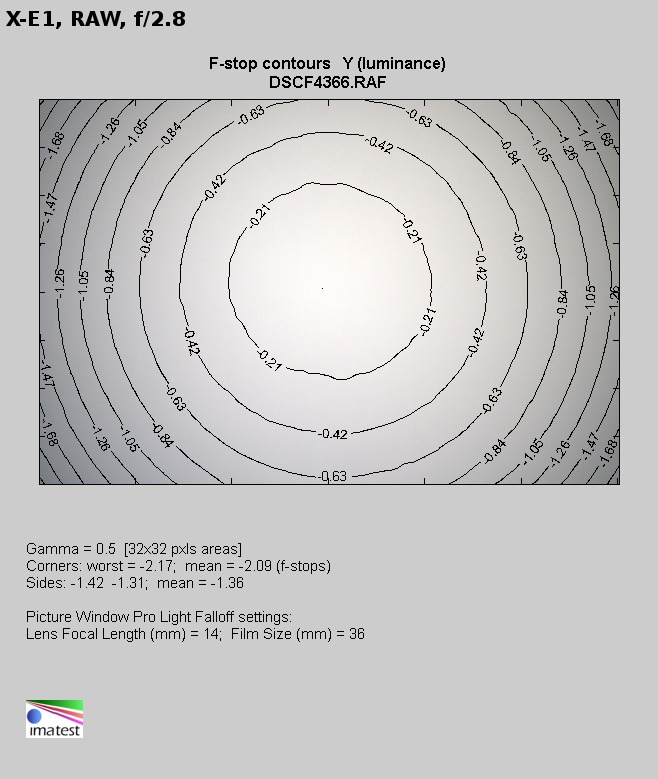

A much more serious situation can be observed in the case of RAW files. At the maximum relative aperture, in the frame corners, you lose as much as 51% of light (-2.09 EV). There are huge problems by f/4.0 as well, where the vignetting reaches 41% (-1.52 EV). By f/5.6 that aberration remains still visible, getting to 35% (-1.27 EV). Further stopping down doesn’t have any measurable influence on the vignetting because that aberration value stops at 34% (-0.19 EV).

Fujifilm Fujinon XF 14 mm f/2.8 R - Vignetting
