LensTip.com

Lens review

Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO

18 December 2013
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

The longitudinal chromatic aberration is corrected very well. The cast in defocused images is negligible and won’t be bothersome in real life photos at all.

Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Chromatic and spherical aberration

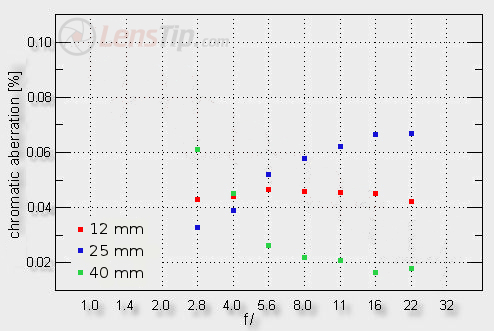

When it comes to the lateral chromatic aberration the situation is a bit better than the performance of the Panasonic which, at the shortest focal length, got results near 0.08-0.10%. The Olympus 12-40 mm at no combination of focal length and aperture exceeds the low level of 0.07. It is an excellent result. Its performance at the shorter focal length should be especially praised. In fast zoom lenses, with the angle of view of over 80 degrees, correcting the aberration at the shortest focal length so it reduced to an imperceptible level of 0.04-0.05% is no mean feat, something certainly worth emphasizing.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Chromatic and spherical aberration

Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Chromatic and spherical aberration



Spherical aberration

The first photo of this chapter shows no problem whatsoever with ‘focus shift’. The circles, created by defocusing light points, don’t have any distinct problems connected to the spherical aberration either. The only thing you can notice is a different appearance of the circle itself - in front of the focus the center is darker and behind the focus it becomes lighter.

Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Chromatic and spherical aberration
