Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO

18 December 2013
Arkadiusz Olech

6. Distortion

As long as you work with JPEG files or you develop the RAW files using the software provided by the producer, the distortion won’t be such a big problem. At 12 mm focal length you get slight barrel distortion, amounting to –1.02%. At higher focal lengths the problems are even less noticeable because at 25 mm the distortion level is –0.13% and at 40 mm it decreases to just –0.05%.

As our test concerns the performance of the lens itself we also checked how the optics dealt with distortion without any help; we did it by developing RAW files with the dcraw program which doesn’t correct automatically the geometric flaws of the lens. In that case, at the wide angle, you have to take into account a huge level of barrel distortion, reaching a level of –6.32%. For comparison, at the same focal length the Panasonic 12-35 mm f/2.8 got –6.54%, a tad higher result than that of the Olympus. With the increase of the focal length the distortion decreases: at 14 mm it still remains high, amounting to –5.11%, and at 25 mm it reaches just –0.60%. At higher focal lengths there is a sign change and at 40 mm you already see pincushion distortion of 0.80%.

It is an interesting fact that the Olympus, featuring a wider focal range that the Panasonic 12-35 mm, has better distortion results almost across the range. Unfortunately, though, it is clear the constructors didn’t even try to control distortion effectively, ceding that task completely to the software. We definitely don’t like such an approach because correcting such a high distortion level entails significant cropping of images.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Olympus E-PL1, 12 mm, JPEG
Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Distortion
Olympus E-PL1, 25 mm, JPEG
Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Distortion
Olympus E-PL1, 40 mm, JPEG
Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Distortion

Olympus E-PL1, 12 mm, RAW
Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Distortion

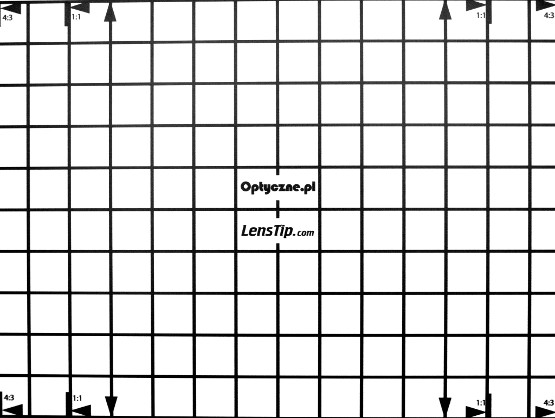

Olympus E-PL1, 25 mm, RAW
Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Distortion
Olympus E-PL1, 40 mm, RAW
Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Distortion
