Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO

18 December 2013
Arkadiusz Olech

7. Coma, astigmatism and bokeh

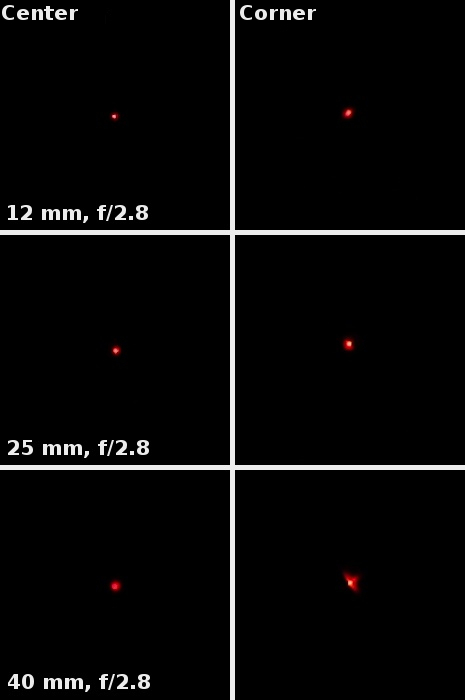

The coma seems to get bigger with the increase of the focal length. In the 12-25 mm range it remains low although at 25 mm it’s a bit higher than at 12 mm or so it seems. At the maximum focal length the coma spreads its wings, seriously limiting the image quality on the edge of the frame.

Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Coma, astigmatism and bokeh


The astigmatism doesn’t cause any serious problems. The average difference between horizontal and vertical MTF50 values amounted to 5.3% which we consider to be a low result.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

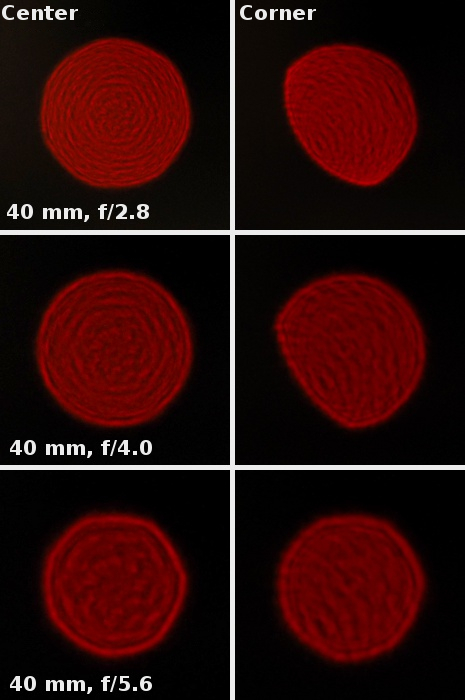

Defocused light points don’t look well. You can find many local extremes so the blur won’t look particularly attractive.

Olympus M.Zuiko Digital 12-40 mm f/2.8 ED PRO - Coma, astigmatism and bokeh
