Panasonic Leica DG Nocticron 42.5 mm f/1.2 Asph. P.O.I.S.

9 January 2014
Arkadiusz Olech

8. Vignetting

Fast lenses always have to fight hard in order to control vignetting. The Leica 1.2/42.5 is not free of that aberration either and the thumbnails shown below are the proof.

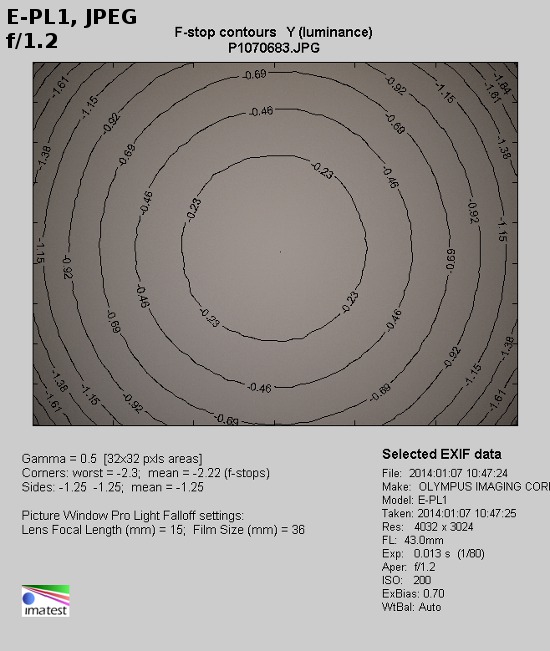

Panasonic Leica DG Nocticron 42.5 mm f/1.2 Asph. P.O.I.S. - Vignetting


At the maximum relative aperture the brightness loss in the frame corners reaches 54% (-2.23 EV) – a very weak result indeed. Even the vignetting level of the full frame Canon EF 85 mm f/1.2L USM II was by 1% lower! When you stop down the aperture to f/1.4 the vignetting decreases to 49% (-1.95 EV) which is still a huge value. The problem becomes moderate by f/2.0, where it amounts to 22% (-0.73 EV), and it disappears completely by f/2.8, where it is just 10% (-0.29 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The assessment in this category can’t be positive. If a lens, designed for a small Micro 4/3 sensor, has the same light fall-off as its equally fast full frame equivalent it is nothing to boast of.

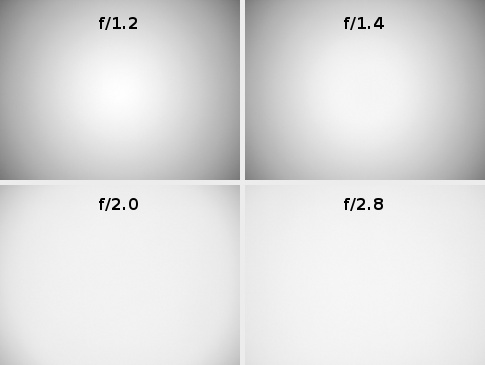

Panasonic Leica DG Nocticron 42.5 mm f/1.2 Asph. P.O.I.S. - Vignetting
