LensTip.com

Lens review

Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR

15 April 2014
Arkadiusz Olech

6. Distortion

When it comes to lenses starting with 16-18 mm focal length and ending somewhere over 100 mm the distortion correction is always difficult. The Nikon company didn’t manage to avoid that pitfall either. It would be easy to understand −4.40% “barrel” at the wide angle because it is really hard to make it vanish there. At longer focal lengths, though, the distortion should have been negligible and you can describe it as such only near 24 mm, where it gets to −0.32%. Already at 35 mm you deal with distinct “pincushion” of 1.78% which increases with the increase of the focal lengths. At 50 mm it is as high as 2.29% and at 70 mm it reaches 2.30%. Only at the very end of the range that aberration decreases and at 140 mm it is 1.99%.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Nikon D7000, 18 mm
Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR - Distortion

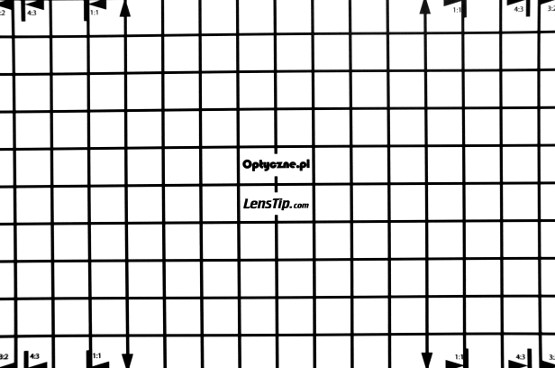

Nikon D7000, 24 mm
Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR - Distortion

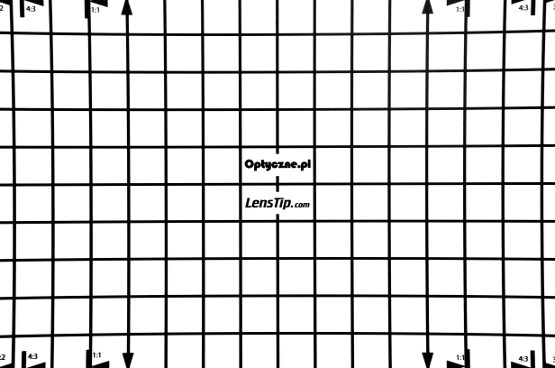

Nikon D7000, 35 mm
Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR - Distortion

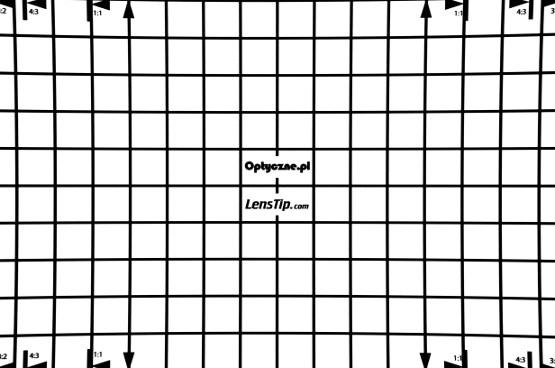

Nikon D7000, 50 mm
Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR - Distortion

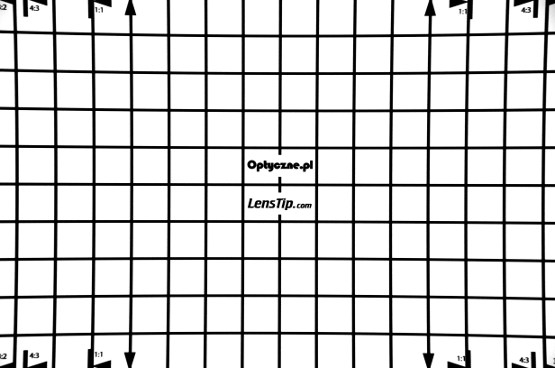

Nikon D7000, 70 mm
Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR - Distortion

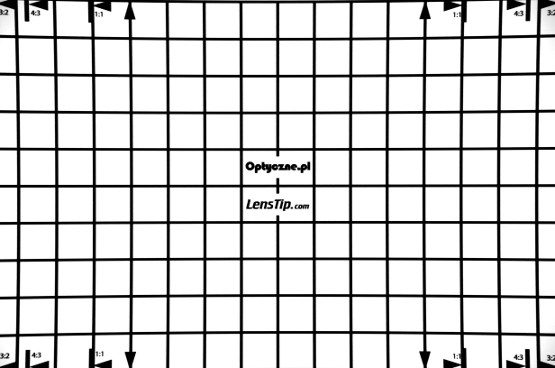

Nikon D7000, 140 mm
Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR - Distortion
