Fujifilm Fujinon XF 56 mm f/1.2 R

11 December 2014
Arkadiusz Olech

8. Vignetting

The Fujifilm X cameras correct the vignetting in JPEG files so we always check the level of that aberration in JPEG and RAW files as well. In the case of the Fujinon 1.2/56 the vignetting can be assessed by looking at the thumbnails below.

JPEG RAW
f/1.2 f/1.2
Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting
f/1.4 f/1.4
Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting
f/2.0 f/2.0
Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting
f/2.8 f/2.8
Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting


In JPEG files its level is noticeable only by f/1.2, f/1.4 and f/2.0, amounting respectively to 24% (−0.80 EV), 17% (−0.53 EV) and 16% (−0.50 EV). By f/2.8 the problem disappears almost completely, reaching just 5% (-0.16 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

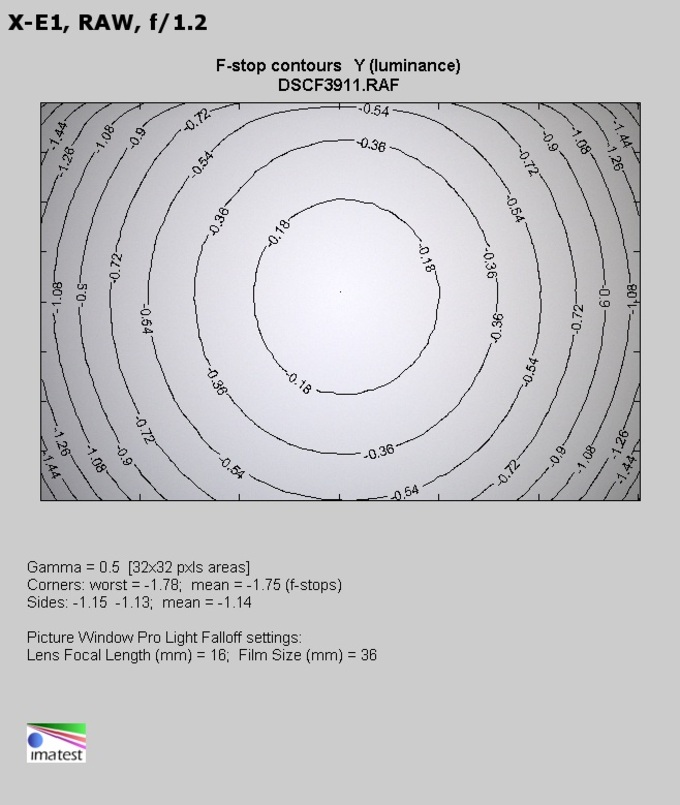

Much more problems can be observed in RAW files. At the maximum relative aperture you have to take into account the loss of 45% of light in the frame corners (-1.75 EV). That value decreases to 40% (-1.48 EV) on stopping down to f/1.4 and to 22% (-0.72 EV) after applying f/2.0 aperture. By f/2.8 there are no more vignetting issues as that aberration’s level reaches just 9% (-0.26 EV).

Although the results of the Fujinon in this category might seem significantly high, they are still looking good when compared to full frame 85 mm class lenses. The Fujinon is faster but at its maximum relative aperture its vignetting is on the same level as that of full frame devices by f/1.4-1.8. What’s more, its light fall-off disappears completely on stopping down the aperture to f/2.8 and its full frame rivals have to be stopped down to near f/4.0 to achieve a similar result.

Fujifilm Fujinon XF 56 mm f/1.2 R - Vignetting
