Yongnuo YN 50 mm f/1.8

26 January 2015
Arkadiusz Olech

4. Image resolution

The resolution test (meaning MTF50 function values) of the Yongnuo 50 mm f/1.8 lens was based on RAW files from the Canon EOS 5D Mk III. In the case of that reflex camera the decency level is situated aroung 30-32 lpmm and the best fixed-focal lenses can get as high as 44-47 lpmm.

Let’s check how the tested instrument compares here. Its performance in the frame centre, on the edge of the APS-C sensor and on the edge of full frame, depending on different aperture values, is presented in a picture below.

Yongnuo YN 50 mm f/1.8 - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


At first glance you can tell the Yongnuo performs noticeably worse than the Canon 1.8/50 II. Especially its performance by f/1.8 and f/2.0 is disappointing because the MTFs are distinctly below the decency level. In order to enjoy an acceptable image quality in the frame centre you have to stop down the tested lens to near f/2.5. In the case of the edge of the APS-C sensor you get sensible MTFs after stopping down the aperture to almost f/4.0 and on the edge of full frame you have to employ f/5.6. Such a performance can only be called weak; still in order to defend the Yongnuo a bit you should mention the fact that even such a lens as the Nikkor AF-S 50 mm f/1.8G had similar problems on the edges of both types of sensors.

Here the maximum results in fact remain our only consolation. The tested lens was able to reach 44 lpmm by f/5.6 and it is a value it shouldn’t be ashamed of, unobtainable by many zoom lenses, even those good ones, and a part of older “primes”. Of course you can also say that you don’t buy a fast lens in order to close it down to f/5.6 very often.

At the end of this chapter traditionally we present crops of our resolution testing chart, taken from JPEG files which were saved along RAW files used for the analysis above.

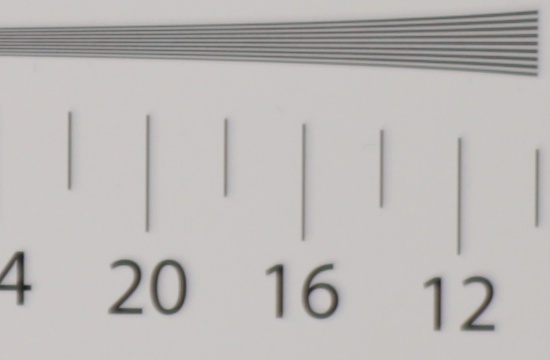

Canon 5D MkIII, JPEG, f/1.8
Yongnuo YN 50 mm f/1.8 - Image resolution

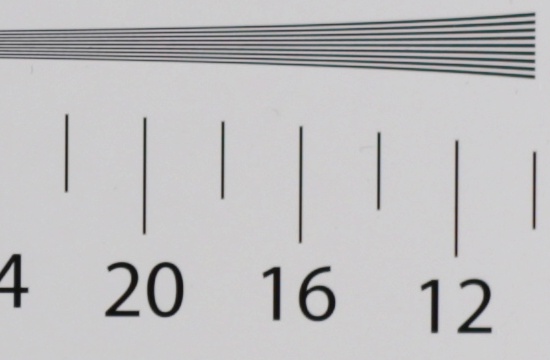

Canon 5D MkIII, JPEG, f/4.0
Yongnuo YN 50 mm f/1.8 - Image resolution
