LensTip.com

Lens review

Yongnuo YN 50 mm f/1.8

26 January 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

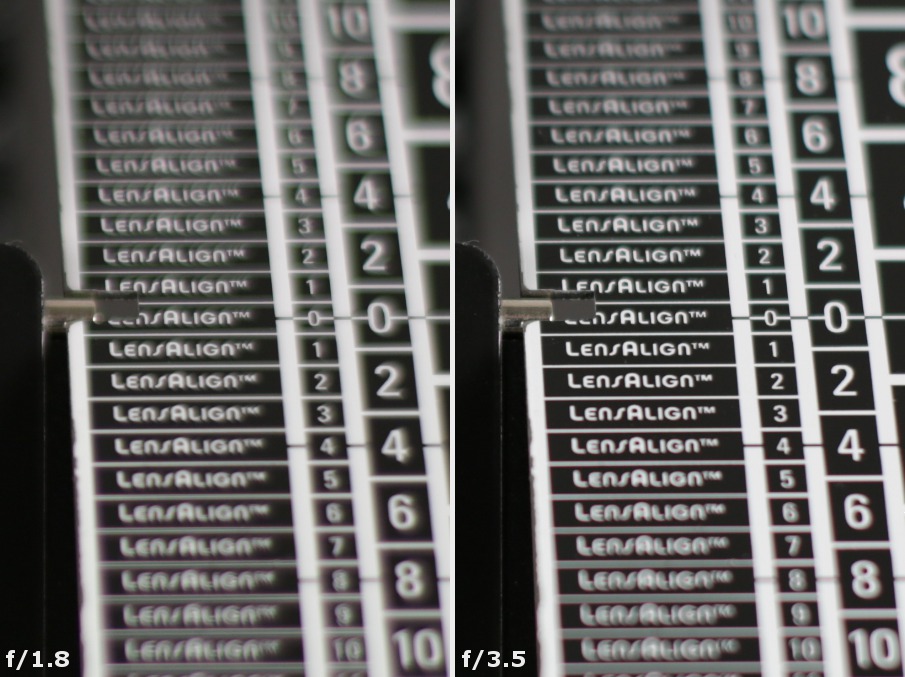

The longitudinal chromatic aberration of the tested lens is almost invisible. It is an interesting result, different from that of the Canon 1.8/50 II, where the aberration, although not very high, was definitely more pronounced.

Yongnuo YN 50 mm f/1.8 - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


When it comes to the lateral chromatic aberration the situation is reversed. For the Canon it reached maximally 0.05% and decreased on stopping down. The Yongnuo results are two times higher – mind you it doesn’t mean the situation is bad. Even at the maximum relative aperture the values can be described as medium and on stopping down they decrease to low levels. To tell you the truth the Yongnuo fares similarly to the Nikkor AF-S 50 mm f/1.8G which had the lateral aberration on a level of 0.08% no matter what aperture you used.

Yongnuo YN 50 mm f/1.8 - Chromatic and spherical aberration


When it comes to correcting both types of chromatic aberration the Yongnuo YN 50 mm f/1.8 deserves our praise. As you see it is possible to eliminate that aberration even if you deal with just a simple, 6-element construction.

Canon 5D III, f/1.8 Canon 5D III, f/8.0
Yongnuo YN 50 mm f/1.8 - Chromatic and spherical aberration Yongnuo YN 50 mm f/1.8 - Chromatic and spherical aberration



Spherical aberration

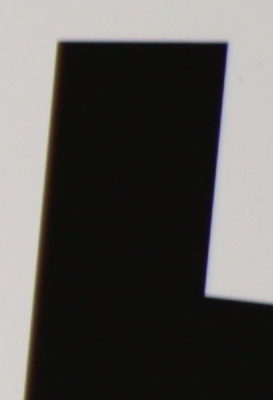

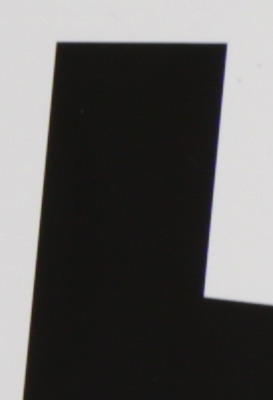

The Yongnuo YN 50 mm f/1.8 didn’t have any „focus shift” effect so the level of spherical aberration of the lens can’t be very high. The light circles we got in front of and behind the focus differ from each other but still the situation is dissimilar to that of the Canon - its circles showed a more classic influence of spherical aberration.

Canon 5D III, f/1.8, in front of Canon 5D III, f/1.8, behind
Yongnuo YN 50 mm f/1.8 - Chromatic and spherical aberration Yongnuo YN 50 mm f/1.8 - Chromatic and spherical aberration
