Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR

18 April 2015
Arkadiusz Olech

8. Vignetting

In the case of the JPEG files the vignetting is corrected by the software of the camera so that aberration shouldn’t be very bothersome. At a combination of 16 mm focal length and f/2.8 aperture you have to take into account 17% of loss of light in the frame corners (-0.54 EV). The vignetting becomes practically invisible by f/4.0 where it amounts to just 11% (−0.35 EV).

There are even less problems in the middle of the focal range because a vignetting level, reaching just 11% (−0.33 EV), can be visible only with the lens wide open.

The maximum focal length is the most problematic: by f/2.8 there is 20% (−0.66 EV) of loss of light. On stopping down to f/4.0 the vignetting decreases to 12% (−0.38 EV), and by f/5.6 it disappears practically completely(7%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Still the real situation can be observed only by analyzing RAW files developed with independent software. The thumbnails below give you some ideas about the true vignetting performance.

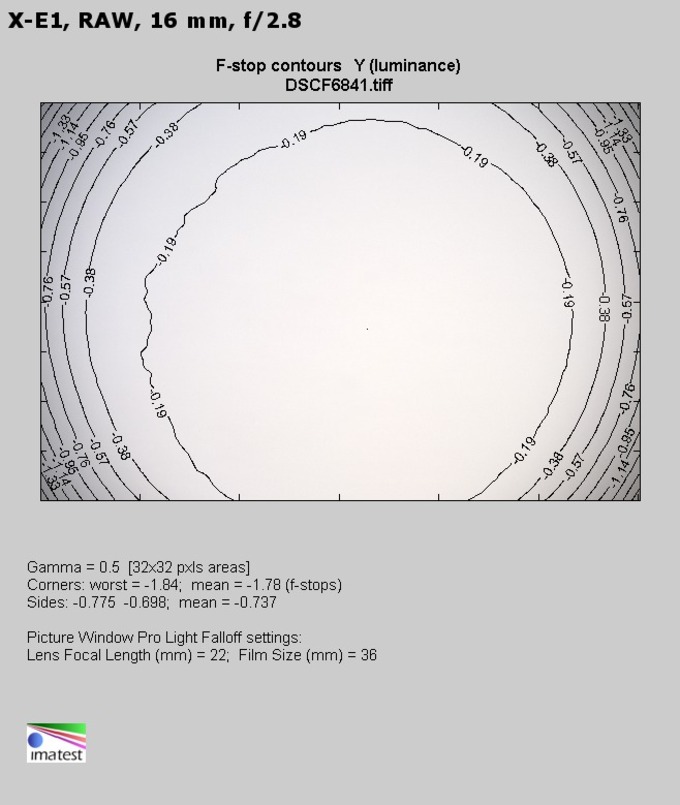

16 mm, f/2.8 16 mm, f/4.0
Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting

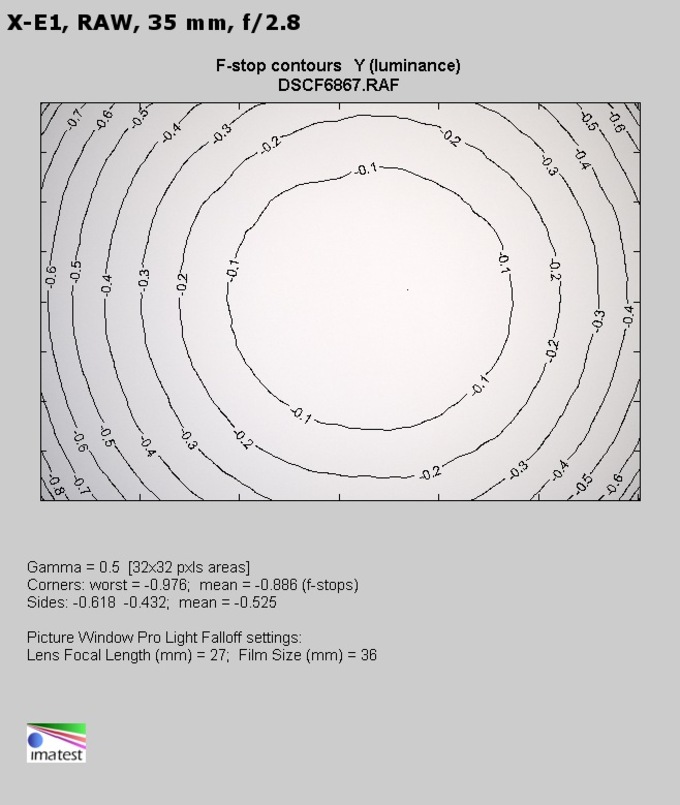

35 mm, f/2.8 35 mm, f/4.0
Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting

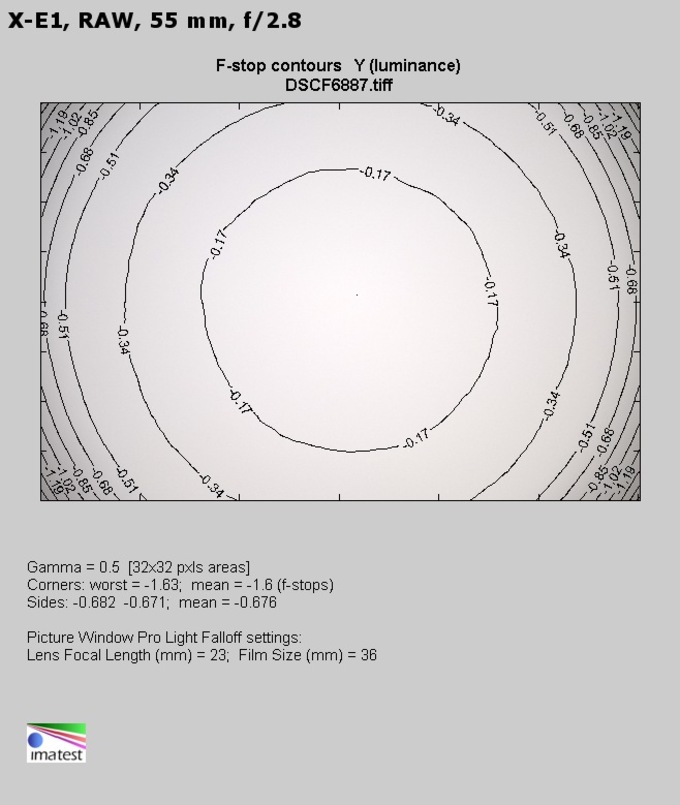

55 mm, f/2.8 55 mm, f/4.0
Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting


At a difficult combination of wide angle and f/2.8 you have to take into account 46% (−1.78 EV) of brightness loss. It’s a lot. The rival instruments produced by Canon, Nikon and Sigma fared a bit better here but their task was a bit easier too as they all start from the 17 mm focal length. If you look at the Tokina and the Sony with 16 mm as the shortest focal length the results of the Fujinon are actually slightly better because the vignetting of those rival lenses reached 49%.

On stopping down the aperture to f/4.0 you can limit the vignetting to a still distinct level of 34% (−1.18 EV). Even by f/5.6 and f/8.0 that aberration remains noticeable as it gets to, respectively, 24% (−0.78 EV) and 19% (−0.62 EV).

A bit better situation can be observed in the middle of the focal range. At the maximum relative aperture the vignetting is 26% (−0.89 EV) and it decreases to 18% (−0.57 EV), on stopping down the lens to f/4.0. The problem disappears almost completely by f/5.6 where that aberration reaches just 12% (−0.38 EV).

At the maximum focal length you can observe another increase of vignetting. By f/2.8 we got a value of 42% (−1.60 EV), and by f/4.0 it was 29% (−1.01 EV). On stopping down the lens to f/5.6, the vignetting level becomes lower (17% so −0.55 EV), and after further limiting the aperture to f/8.0 it decreases to 11% (−0.35 EV).

Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting

Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting

Fujifilm Fujinon XF 16-55 mm f/2.8 R LM WR - Vignetting
