6. Distortion

As long as you work on the small APS-C sensor the distortion won’t be a problem; you can notice its influence only at the wide angle, where you have to deal with 1.80% barrel. At 35 mm the deformations decrease to −0.28%, then they change the sign and at 50 mm they are already +0.17% pincushion. At the maximum focal length they reach a level of +0.31% so still remain practically imperceptible.

Full frame is far more demanding in this category, especially at the wide angle and, unfortunately, the performance of the lens is rather mediocre there. An average result, amounting to −3.21%, doesn’t perhaps look very badly but it is an average from all over the frame. If you look closely at images we got at 24 mm you see that they feature moustache distortion. After taking the second measurement of an area marked as 1:1, where you can detect pincushion distortion only, the result increased to −4.18%.

Fortunately bigger focal lengths don’t give you any reasons to complain. At 35 mm the distortion decreases to −0.67%, then it changes the sign and at 50 mm it reaches already +0.42%. The 70 mm focal length makes it increase further to +0.79%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

We complained a bit in this chapter but, in order to keep the proper point of reference, you might remind yourself here that the expensive Canon EF 24-70 MM f/2.8L II USM had a result of −3.85% at the wide angle – very similar to the result of the tested lens.

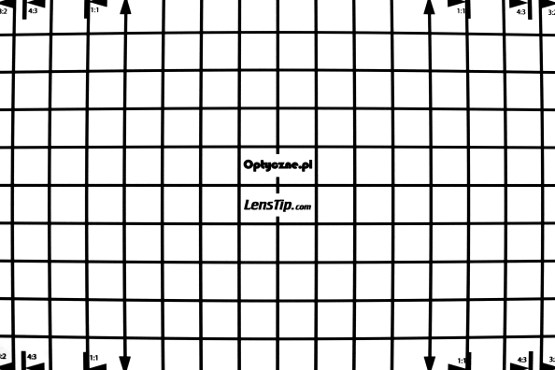

50D, 24 mm
Canon EF 24-70 mm f/4L IS USM - Distortion

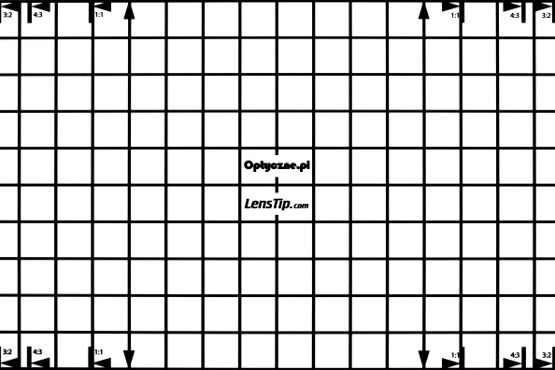

50D, 35 mm
Canon EF 24-70 mm f/4L IS USM - Distortion

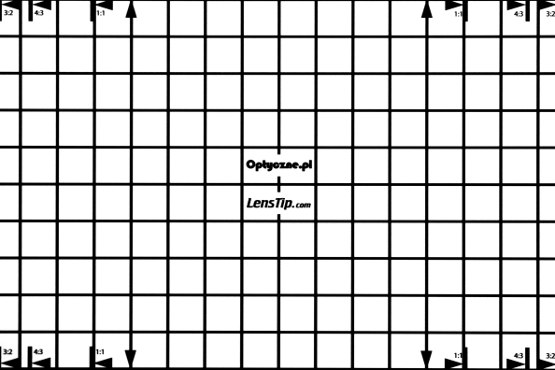

50D, 50 mm
Canon EF 24-70 mm f/4L IS USM - Distortion

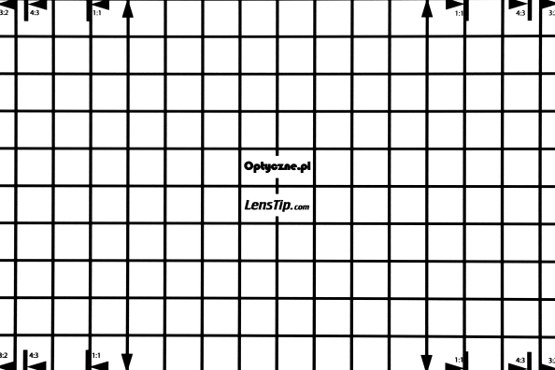

50D, 70 mm
Canon EF 24-70 mm f/4L IS USM - Distortion

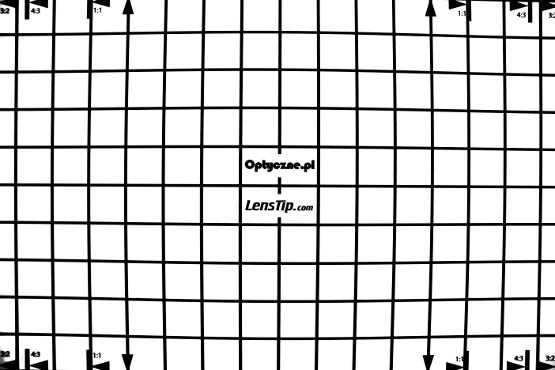

1Ds MkIII, 24 mm
Canon EF 24-70 mm f/4L IS USM - Distortion

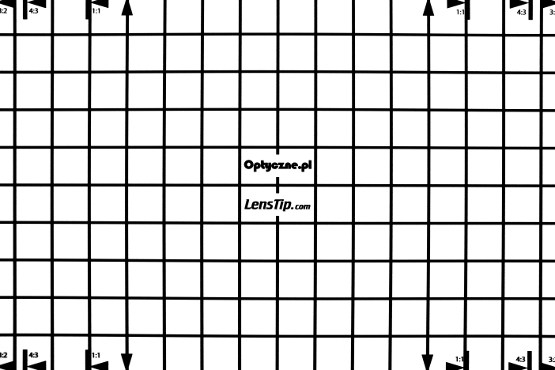

1Ds MkIII, 35 mm
Canon EF 24-70 mm f/4L IS USM - Distortion

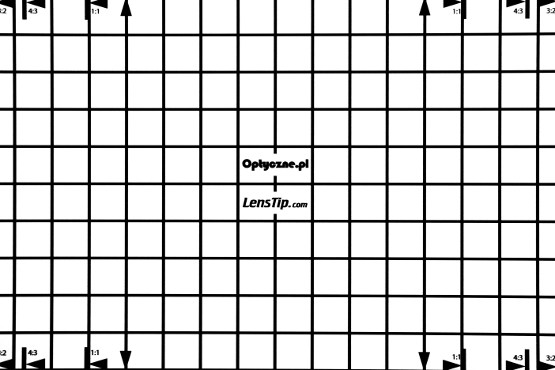

1Ds MkIII, 50 mm
Canon EF 24-70 mm f/4L IS USM - Distortion

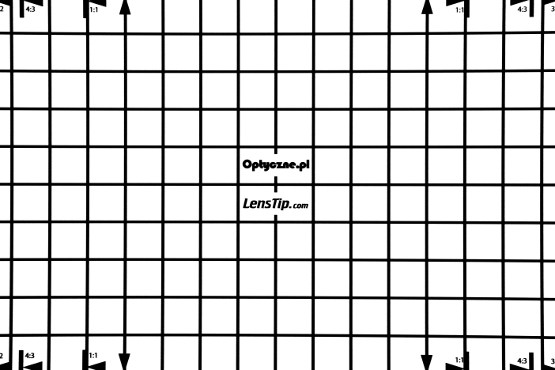

1Ds MkIII, 70 mm
Canon EF 24-70 mm f/4L IS USM - Distortion
