Canon EF 24-70 mm f/4L IS USM

22 May 2015
Arkadiusz Olech

8. Vignetting

First let’s check how the Canon 24-70 mm performs in this category on a small sensor of the Canon 50D. Appropriate thumbnails are presented below.

Canon 50D, 24 mm, f/4.0 Canon 50D, 24 mm, f/5.6
Canon EF 24-70 mm f/4L IS USM - Vignetting Canon EF 24-70 mm f/4L IS USM - Vignetting
Canon 50D, 45 mm, f/4.0 Canon 50D, 45 mm, f/5.6
Canon EF 24-70 mm f/4L IS USM - Vignetting Canon EF 24-70 mm f/4L IS USM - Vignetting
Canon 50D, 70 mm, f/4.0 Canon 50D, 70 mm, f/5.6
Canon EF 24-70 mm f/4L IS USM - Vignetting Canon EF 24-70 mm f/4L IS USM - Vignetting


There are no reasons to worry here and our measurements confirm it too. At a difficult combination of wide angle and the maximum relative aperture the vignetting is almost imperceptible, reaching only 11% (−0.33 EV) and it disappears completely on stopping down to f/5.6, where it is just 9% (−0.27 EV).

A bit bigger chances to notice that aberration you get at the 45 mm focal length where, at the maximum relative aperture, you deal with a brightness loss in the frame corners of 16% (−0.51 EV). That problem disappears already by f/5.6, where we recorded a value of just 8% (−0.24 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Further vignetting increase can be noticed at the maximum focal length where, by f/4.0, that aberration reaches 20% (−0.65 EV). By applying the f/5.6 aperture you can make the problem disappear completely as then it gets to just 6% (−0.20 EV).

Now let’s progress to the performance on full frame. The appropriate thumbnails can be found below.

Canon 5D MkIII, 24 mm, f/4.0 Canon 5D MkIII, 24 mm, f/5.6
Canon EF 24-70 mm f/4L IS USM - Vignetting Canon EF 24-70 mm f/4L IS USM - Vignetting
Canon 5D MkIII, 45 mm, f/4.0 Canon 5D MkIII, 45 mm, f/5.6
Canon EF 24-70 mm f/4L IS USM - Vignetting Canon EF 24-70 mm f/4L IS USM - Vignetting
Canon 5D MkIII, 70 mm, f/4.0 Canon 5D MkIII, 70 mm, f/5.6
Canon EF 24-70 mm f/4L IS USM - Vignetting Canon EF 24-70 mm f/4L IS USM - Vignetting

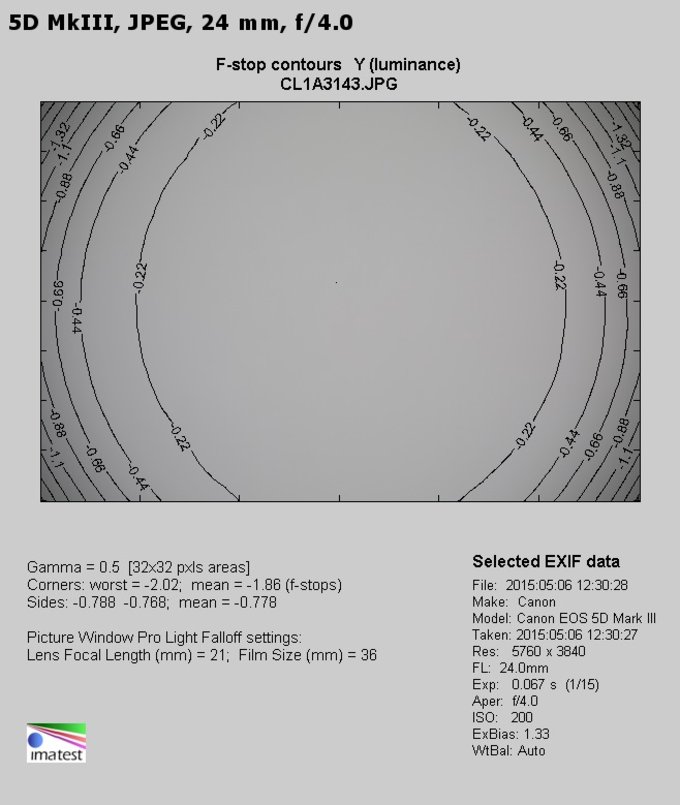

The situation is no longer so rosy and for understandable reasons. At the 24 mm focal length and by f/4.0 aperture you have to deal with a high vignetting level, amounting to 47% (−1.86 EV). It is especially painful as the vignetting doesn’t react to stopping down as fast as it should. By f/5.6 the aberration is 34% (−1.20 EV) and by f/8.0 it reaches a still bothersome level of 29% (−1.01 EV). Even after employing f/11 and f/16 apertures you don’t see this problem disappear completely as you have to take into account a vignetting level amounting to, respectively, 25% (−0.82 EV) and 20% (−0.64 EV).

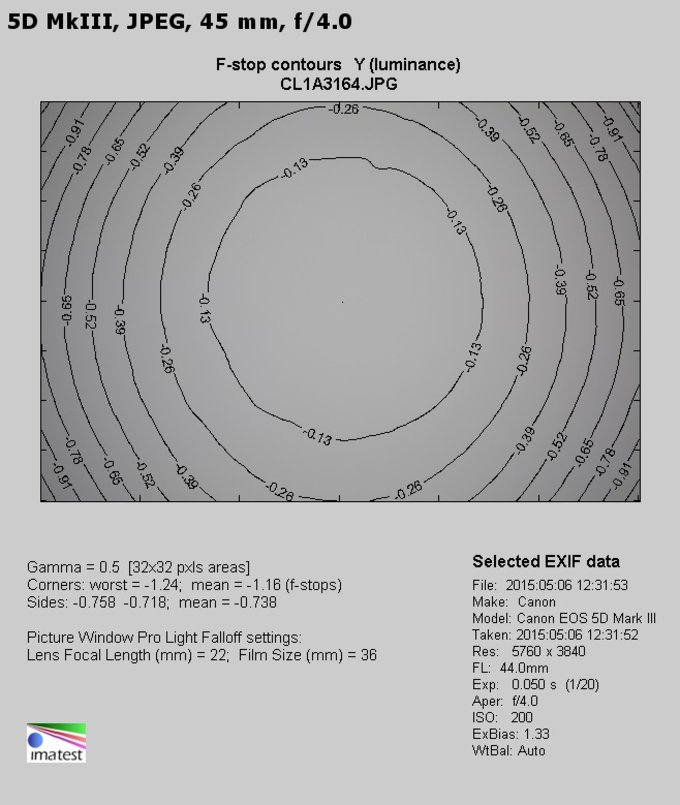

There are definitely less problems in the middle of the focal range where, with the lens wide open, the light fall-off in the frame corners is 33% (−1.16 EV); it decreases to a not bothersome level of 16% (−0.51 EV) on stopping down the aperture to f/5.6. By f/8.0 the vignetting reaches 12% (−0.39 EV) and further stopping down doesn’t cause any measurable changes of the level of that aberration.

After passing to the maximum focal length the vignetting level increases again and, at the maximum relative aperture, it reaches 42% (−1.57 EV). By f/5.6 that aberration decreases to 23% (−0.75 EV), and by f/8.0 it becomes practically imperceptible, amounting to 11% (−0.35 EV).

Canon EF 24-70 mm f/4L IS USM - Vignetting

Canon EF 24-70 mm f/4L IS USM - Vignetting

Canon EF 24-70 mm f/4L IS USM - Vignetting
