Tokina AT-X PRO DX 11-20 mm f/2.8

8 September 2015
Arkadiusz Olech

6. Distortion

Lenses in the style of the Tokina 11–16 mm or the 11–20 mm tested here, use rectilinear projection which doesn’t curve straight lines that much, providing a narrower field of view at a given focal length than the projection used in a ‘fisheye’ lens. Still it causes strong deformations in the corners of the frame. It’s good to go back to your geography class and remind here the world map as the gnomonic projection, where the meridians and parallels are shown as straight lines. Although the surface deformation of countries and continents around the equator and the tropics was not very distinct, it was always weird to see the huge size of Greenland next to the North Pole, which looked completely different on your ordinary globe.

Most of ultra wide angle lenses tested on small sensors have barrel distortion of around −2% at the widest angle and then it usually decreases below −1% at the longer end of the focal range. The Tokina 11-16 mm II didn’t impress us in this category because at 11 mm it had a noticeable level of barrel distortion amounting to −2.95%. We were very curious how the 11-20 mm model would fare here; it is known that the increase of the focal range makes it more difficult to correct distortion.

The result at the widest angle worsened a bit and it amounts to −3.15% now. Still it is a small and completely acceptable price to pay for the increase of the focal length. The rivals, though, are better in this category.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The problems disappear when you pass to the higher focal lengths. At 16 mm you get a distortion level of −0.73%, and at 20 mm that of −0.21%. Those values shouldn’t bother you at all.

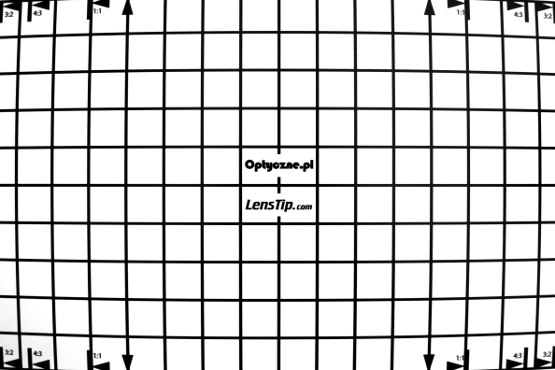

Canon 50D, 11 mm
Tokina AT-X PRO DX 11-20 mm f/2.8 - Distortion
Canon 50D, 16 mm
Tokina AT-X PRO DX 11-20 mm f/2.8 - Distortion

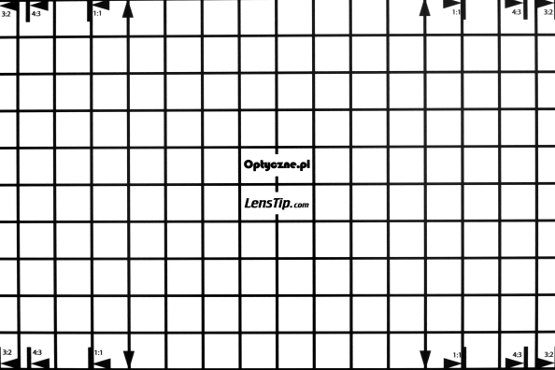

Canon 50D, 20 mm
Tokina AT-X PRO DX 11-20 mm f/2.8 - Distortion
