Lens review

Tokina AT-X PRO DX 11-20 mm f/2.8

8 September 2015
Arkadiusz Olech

8. Vignetting

Let’s glance at those thumbnails and check how the Tokina fares in the vignetting category on the sensor of the Canon 50D.

Canon 50D, 11 mm, f/2.8 Canon 50D, 11 mm, f/4.0
Tokina AT-X PRO DX 11-20 mm f/2.8 - Vignetting Tokina AT-X PRO DX 11-20 mm f/2.8 - Vignetting
Canon 50D, 16 mm, f/2.8 Canon 50D, 16 mm, f/4.0
Tokina AT-X PRO DX 11-20 mm f/2.8 - Vignetting Tokina AT-X PRO DX 11-20 mm f/2.8 - Vignetting
Canon 50D, 20 mm, f/2.8 Canon 50D, 20 mm, f/4.0
Tokina AT-X PRO DX 11-20 mm f/2.8 - Vignetting Tokina AT-X PRO DX 11-20 mm f/2.8 - Vignetting

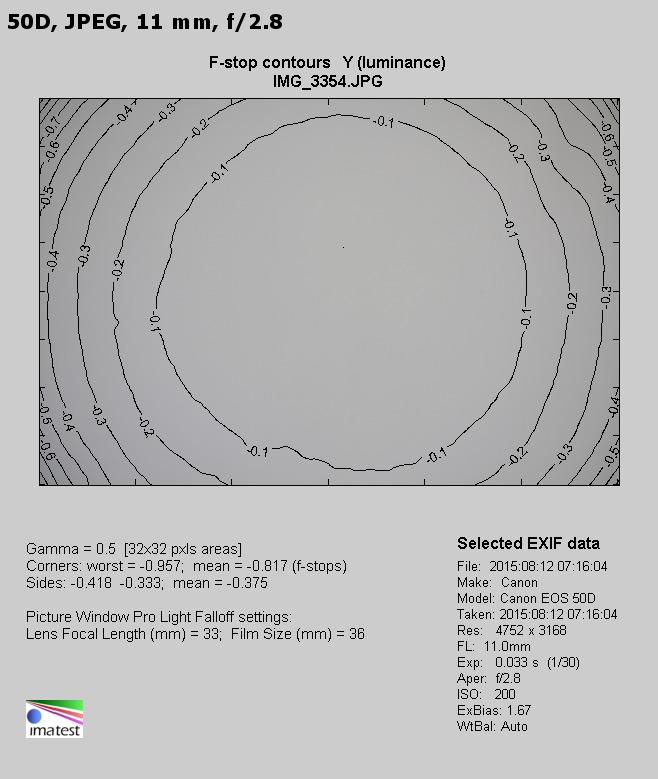

At the most difficult combination of 11 mm and f/2.8 the brightness loss in the frame corners amounts to 25% (−0.82 EV). It is a better result than that of the Tokina 11–16 mm which reached a level of 33%, and still it compared favourably with its rivals. On stopping down to f/4.0 you see the vignetting decrease to 15% (−0.47 EV), and by f/5.6 it becomes almost imperceptible (11% and −0.34 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

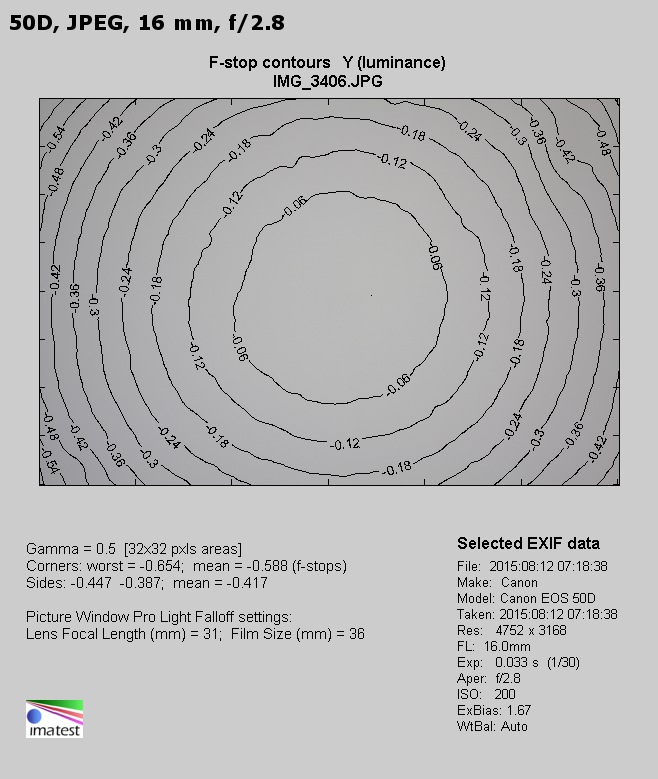

The middle of the focal range is simply sensational. It would be difficult to notice any traces of vignetting even by f/2.8 where it reaches 18% (−0.59 EV). By f/4.0 and f/5.6 apertures it is respectively 13% (−0.40 EV) and 10% (−0.30 EV).

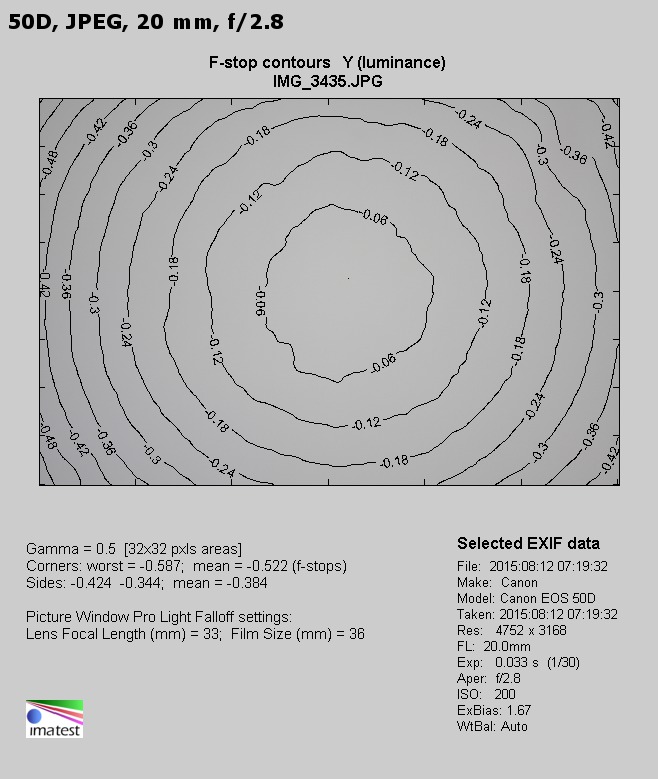

Practically there are no problems at the maximum focal length either; by f/2.8 the vignetting reaches 16% (−0.52 EV) and it decreases to 12% (−0.38 EV) on stopping down the lens to f/4.0. By f/5.6 that aberration already becomes imperceptible (8% and −0.25 EV).

The performance in this category should be assessed very positively. Compared to its predecessor the tested lens has a wider focal range and its aperture fastness remained on a very high level, that of f/2.8, especially for an UWA device. We were afraid that it might have an adverse effect on vignetting but the Tokina surprised us very positively here and the new model, more difficult to correct, controls that aberration even better than the old one – a round of applause! You have to pay for this excellent performance though – the filter thread diameter, compared to the 11-16 mm model, increased from 77 to 82 mm.
