Lens review

Canon EF 11-24 mm f/4L USM

8 October 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

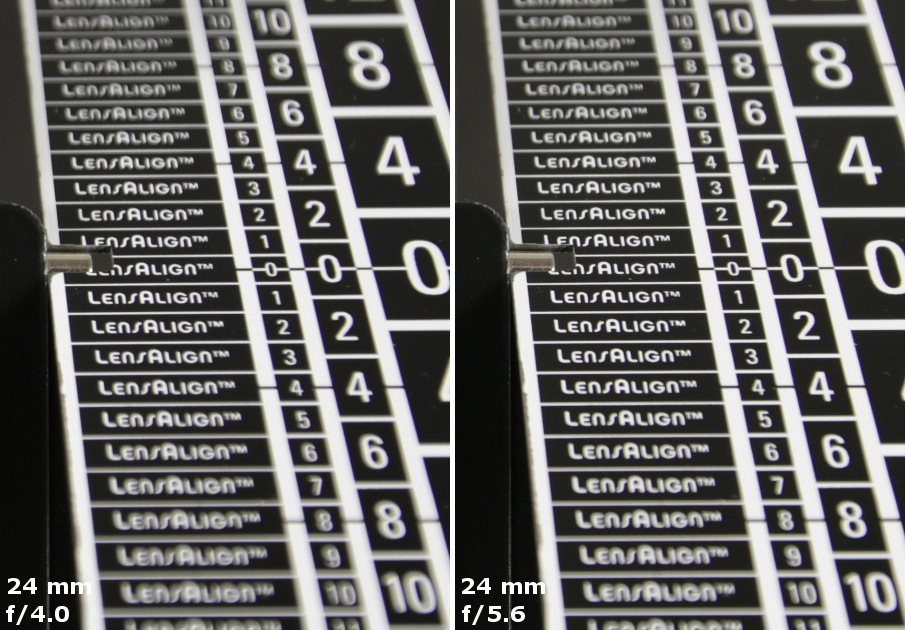

The photos below prove clearly that the tested lens doesn’t have any problems with the correction of the longitudinal chromatic aberration so it can be only praised in this category.

Canon EF 11-24 mm f/4L USM - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

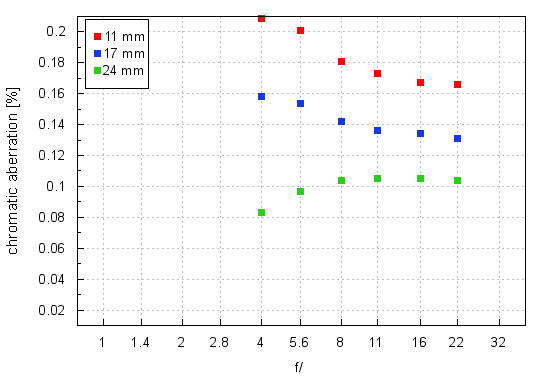

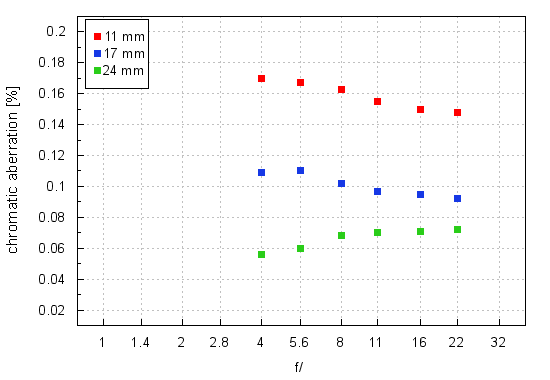

The situation with the lateral chromatic aberration is quite different, though. One look at graphs, shown below (first for the edge of the APS-C sensor, the second one for the edge of full frame), and everything is explained pretty clearly.

Canon EF 11-24 mm f/4L USM - Chromatic and spherical aberration

Canon EF 11-24 mm f/4L USM - Chromatic and spherical aberration


At 11 mm focal length that aberration can reach a very high level of 0.20% and, although it decreases on stopping down, that situation never improves enough to be called at least decent. The image improves when you pass to the 17 mm focal length but also in that place the aberration level should be called high – especially near the maximum relative aperture. Only at 24 mm you can speak about moderate values of that aberration.

It is pretty clear the lateral chromatic aberration contributes a lot to the worsening of the optical properties of the tested lens.

As a kind of consolation you can add that the Sigma 12-24 mm II at the shortest focal length also had the aberration amounting to 0.2% - on both types of detectors to boot.

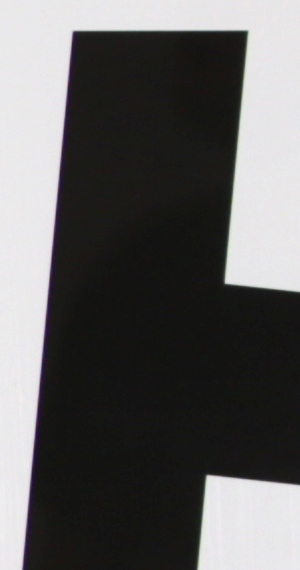

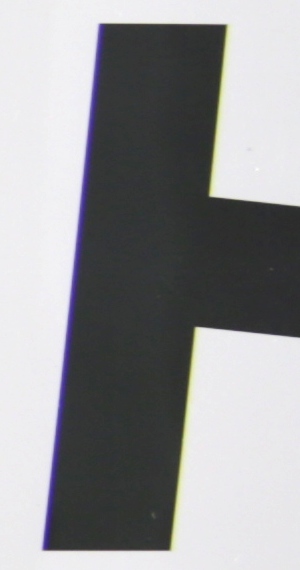

Canon 5D III, 11 mm, APS-C, f/4.0 Canon 5D III, 24 mm, FF, f/4.0
Canon EF 11-24 mm f/4L USM - Chromatic and spherical aberration Canon EF 11-24 mm f/4L USM - Chromatic and spherical aberration


Spherical aberration

The Canon 11–24 mm didn’t have any focus shift effect but its extreme parameters made it very difficult for us to get circles of light of a sensible size both in front of and behind the focal point. Still what we managed to depict doesn’t look bad. There are simply no reasons to think that the tested lens corrects the spherical aberration in a bad way.

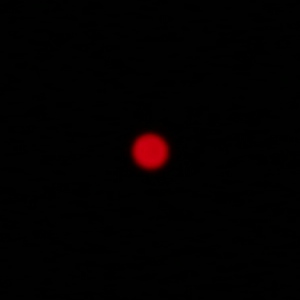

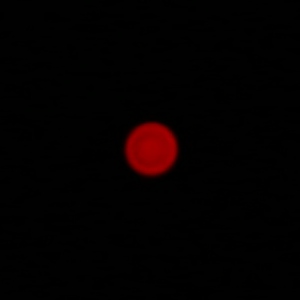

Canon 5D MkIII, 24 mm, f/4.0, in front of Canon 5D MkIII, 324 mm, f/4.0, behind
Canon EF 11-24 mm f/4L USM - Chromatic and spherical aberration Canon EF 11-24 mm f/4L USM - Chromatic and spherical aberration
