LensTip.com

Lens review

Nikon Nikkor AF-S DX 16-80 mm f/2.8-4E ED VR

7 November 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

The tested lens corrects the longitudinal chromatic aberration very well. You really have to take a closer look at defocused images to notice a very slight cast.

Nikon Nikkor AF-S DX 16-80 mm f/2.8-4E ED VR - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

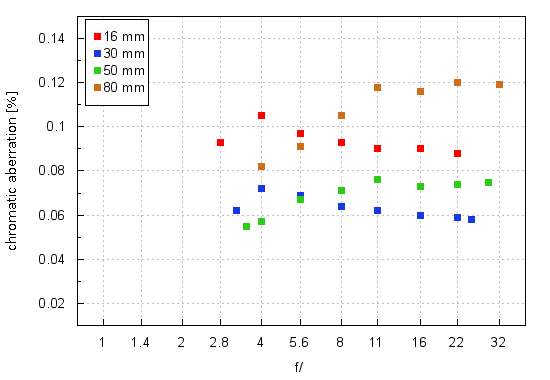

The lateral chromatic aberration is another matter as the graph below shows pretty clearly.

Nikon Nikkor AF-S DX 16-80 mm f/2.8-4E ED VR - Chromatic and spherical aberration


The biggest amount of problems you encounter at the maximum focal length where, on stopping down of the aperture, you see values of near 0.12% which are, according to our scale, in the upper part of the medium level. At 16 mm there are medium values of that aberration as well. In the middle of the range the aberration is the lowest and keeps a low level.

However the summary of this chapter should be only positive, especially if you take into account the fact that this lens’s parameters are difficult to correct. Low or medium problems with both longitudinal and lateral chromatic aberration mean it won’t seriously bother you anywhere.

Nikon D7000, RAW, 50 mm, f/3.5 Nikon D7000, RAW, 80 mm, f/11.0
Nikon Nikkor AF-S DX 16-80 mm f/2.8-4E ED VR - Chromatic and spherical aberration Nikon Nikkor AF-S DX 16-80 mm f/2.8-4E ED VR - Chromatic and spherical aberration


Spherical aberration

First photos of this chapter show clearly that the lens doesn’t have any problems with the focus shift. Circles of light we got in front of and behind the focus are perhaps not identical but also devoid of really alarming features. It allows us to say the Nikkor 16-80 mm doesn’t have any visible problems with the correction of spherical aberration.

Nikon D7000, 80 mm, f/4.0, in front of Nikon D7000, 80 mm, f/4.0, behind
Nikon Nikkor AF-S DX 16-80 mm f/2.8-4E ED VR - Chromatic and spherical aberration Nikon Nikkor AF-S DX 16-80 mm f/2.8-4E ED VR - Chromatic and spherical aberration
