LensTip.com

Lens review

Olympus M.Zuiko Digital 7-14 mm f/2.8 ED PRO

9 February 2016
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

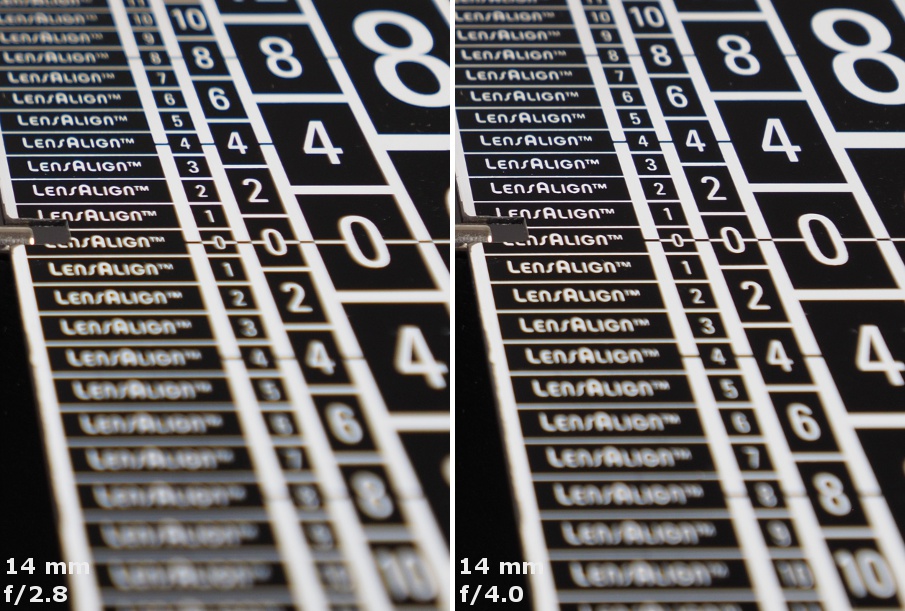

The longitudinal chromatic aberration is not corrected in a perfect way and the photos below prove that much. You can notice slight coloration of the off-focus images; fortunately that effect is not especially pronounced.

Olympus M.Zuiko Digital 7-14 mm f/2.8 ED PRO - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

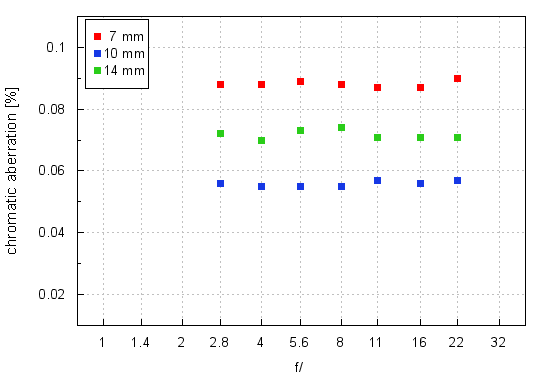

A graph below presents the performance of the lateral chromatic aberration at individual focal lengths.

Olympus M.Zuiko Digital 7-14 mm f/2.8 ED PRO - Chromatic and spherical aberration


The highest level of that aberration can be seen at the shortest focal length, reaching 0.09% . Still that value constitute a borderline between low and medium levels so it would be difficult to complain. At the longer focal lengths the situation is even better – at 10 mm the results we got didn’t exceed 0.06% and at 14 mm they kept near 0.07%.

The performance of the tested lens in this category should be assessed very positively, especially if you take into account the fact that its parameters are difficult to obtain and correct.

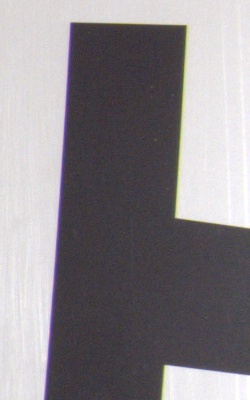

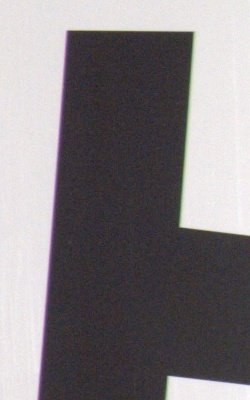

E-PL1, RAW, 7 mm, f/8.0 E-PL1, RAW, 10 mm, f/5.6
Olympus M.Zuiko Digital 7-14 mm f/2.8 ED PRO - Chromatic and spherical aberration Olympus M.Zuiko Digital 7-14 mm f/2.8 ED PRO - Chromatic and spherical aberration


Spherical aberration

First photos in this chapter clearly show the lens doesn’t have any problems with the “focus shift” effect. The circles of light we got in front of and behind the focal point are perhaps not completely identical but they lack really disturbing features as well. It makes us say the Olympus 7-14 mm doesn’t have any noticeable problems with the spherical aberration correction.

E-M10, 14 mm, f/2.8, in front of E-M10, 14 mm, f/2.8, behind
Olympus M.Zuiko Digital 7-14 mm f/2.8 ED PRO - Chromatic and spherical aberration Olympus M.Zuiko Digital 7-14 mm f/2.8 ED PRO - Chromatic and spherical aberration
