8. Vignetting

When you work on a small sensor of the Nikon D7000 the vignetting is not bothersome almost at all; in fact you can notice it only at the longest focal length. The thumbnails below are the proof of it.

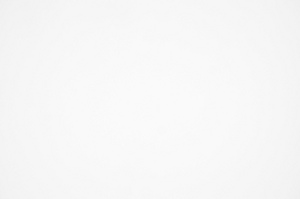

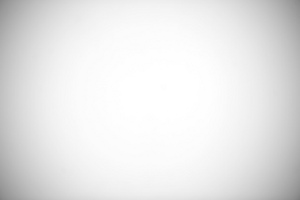

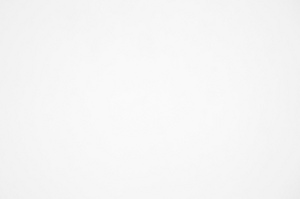

Nikon D7000, 24 mm, f/2.8 Nikon D7000, 24 mm, f/4.0
Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting

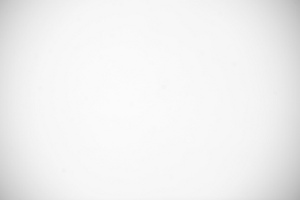

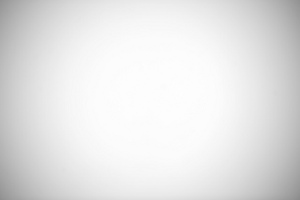

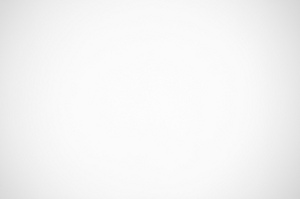

Nikon D7000, 45 mm, f/2.8 Nikon D7000, 45 mm, f/4.0
Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting

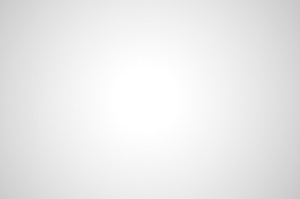

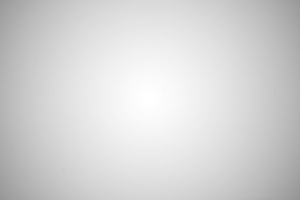

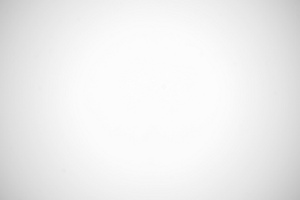

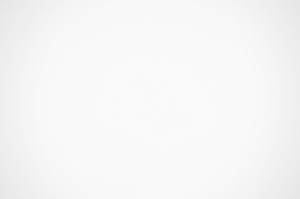

Nikon D7000, 70 mm, f/2.8 Nikon D7000, 70 mm, f/4.0
Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting


At a very difficult combination of 24 mm and f/2.8 aperture the vignetting is practically imperceptible, amounting to just 12% (−0.37 EV). The change of aperture to f/4.0 makes it decrease to 5% (−0.15 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The middle of the focal range is very similar: by f/2.8 the vignetting reaches 14% (−0.44 EV), and by f/4.0 it is just 4% (−0.12 EV).

Using the maximum focal length and the f/2.8 aperture entails a brightness loss of 22% (−0.72 EV). The problem stops being important after stopping down to f/4.0 where the vignetting level reaches just 8% (−0.24 EV).

Now let’s check how the situation looks on full frame.

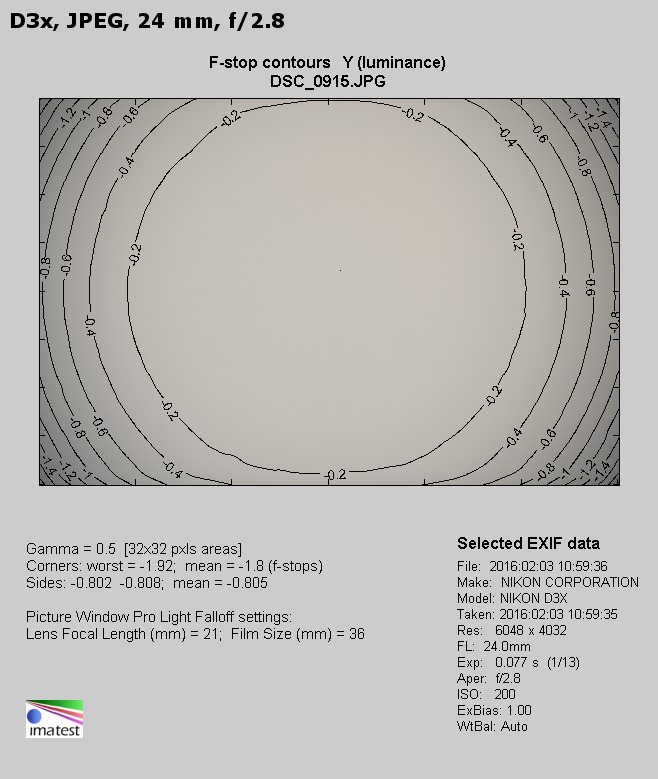

Nikon D3x, 24 mm, f/2.8 Nikon D3x, 24 mm, f/4.0
Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting

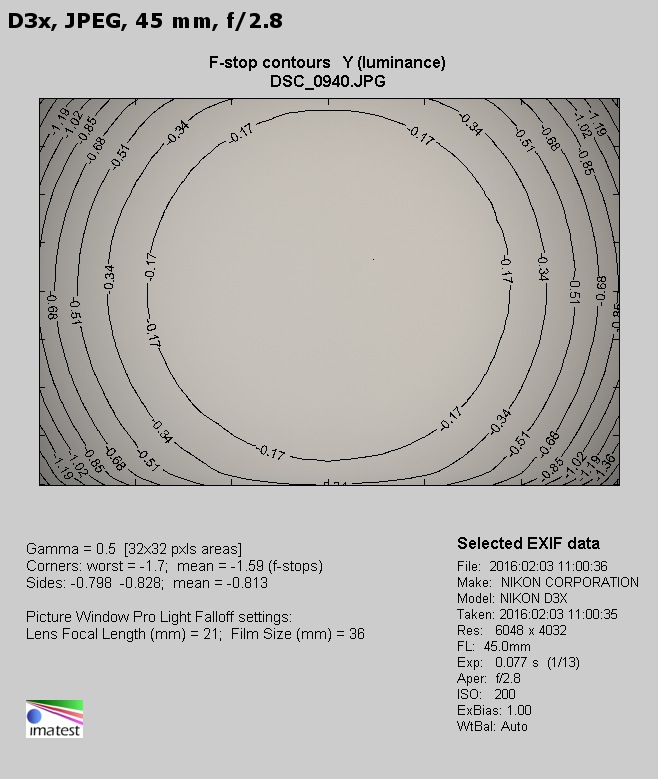

Nikon D3x, 45 mm, f/2.8 Nikon D3x, 45 mm, f/4.0
Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting

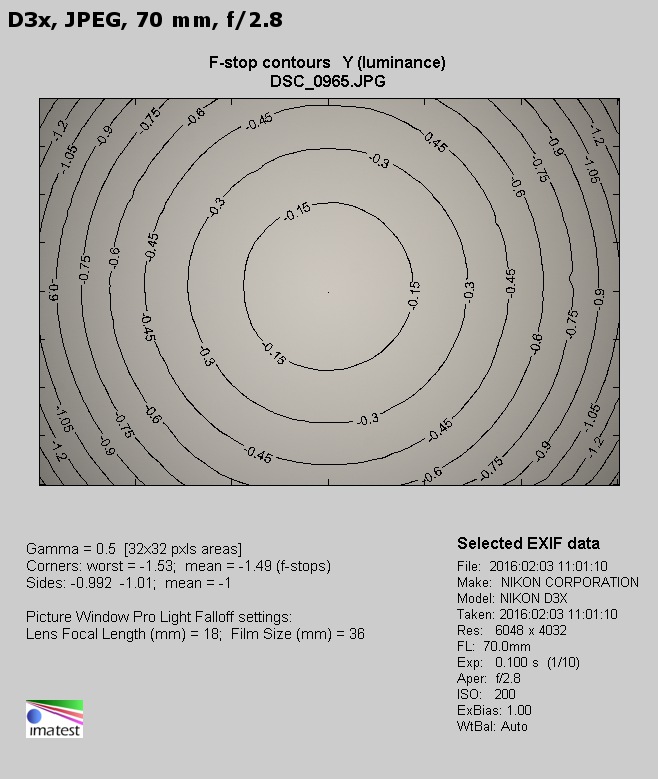

Nikon D3x, 70 mm, f/2.8 Nikon D3x, 70 mm, f/4.0
Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting Nikon Nikkor AF-S 24-70 mm f/2.8E ED VR - Vignetting


If you join the wide angle and f/2.8 you have to take into account a loss of light of 46% (−1.80 EV) in the frame corners. It is a lot but still you have to take into account the results of other lenses with the same parameters in this category. The new Nikon compares favourably here as it fares only a tad worse than its predecessor but better than many of its rivals, the new, expensive Canon 24-70 mm f/2.8 II among them.

By f/4.0 the vignetting decreases to a level of 32% (−1.11 EV), and by f/5.6 it is 23% (−0.75 EV). Further stopping down doesn’t have any significant influence over that aberration because by f/8.0 its level amounts to 19% (−0.61 EV), and by f/11 it reaches just 14% (−0.45 EV).

In the middle of the focal range the problems are even less pronounced. By f/2.8 the vignetting gets to 42% (−1.59 EV) and by f/4.0 it decreases to 25% (−0.85 EV). By f/5.6 and f/8.0 apertures the vignetting stops being bothersome, amounting respectively to 13% (−0.41 EV) and 7% (−0.21 EV).

In the case of the 70 mm focal length and the maximum relative aperture the brightness loss in the frame corners amounts to 40% (−1.49 EV). That aberration decreases to 23% (−0.77 EV) on stopping down the aperture to f/4.0 and to 15% (−0.48 EV) when you employ f/5.6. By f/8.0 the problem stops being visible as the vignetting drops to merely 10% (−0.32 EV).
