LensTip.com

Lens review

Tokina AT-X PRO FX SD 16-28 mm f/2.8 (IF)

10 May 2016
Arkadiusz Olech

6. Distortion

While working with the smaller APS-C/DX sensor you don’t have to bother with geometric deformations at all. Across the whole focal range you deal with barrel distortion but its level is slight, almost imperceptible. The results we got at 16, 22 and 28 mm amounted respectively to −1.38%, −0.33% and −0.01%.

There are more issues on full frame but the situation is not bad for a wide angle lens. Of course the worst result you see at the shortest focal length where the distortion reaches −3.94%. In the middle of the range it decreases to a slight level of −1.31%, and by 28 mm it becomes practically imperceptible, reaching only −0.27%.

The result of almost −4% is perhaps not exactly low but if you remember that the Tamron 15–30 mm at the shortest focal length reached a level of −5.81% you might assess it a bit differently. On the other hand the Tamron’s task was definitely more difficult due to its wider focal range.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Canon 50D, 16 mm
Tokina AT-X PRO FX SD 16-28 mm f/2.8 (IF) - Distortion
Canon 50D, 22 mm
Tokina AT-X PRO FX SD 16-28 mm f/2.8 (IF) - Distortion
Canon 50D, 28 mm
Tokina AT-X PRO FX SD 16-28 mm f/2.8 (IF) - Distortion

Canon 5D III, 16 mm
Tokina AT-X PRO FX SD 16-28 mm f/2.8 (IF) - Distortion
Canon 5D III, 22 mm
Tokina AT-X PRO FX SD 16-28 mm f/2.8 (IF) - Distortion

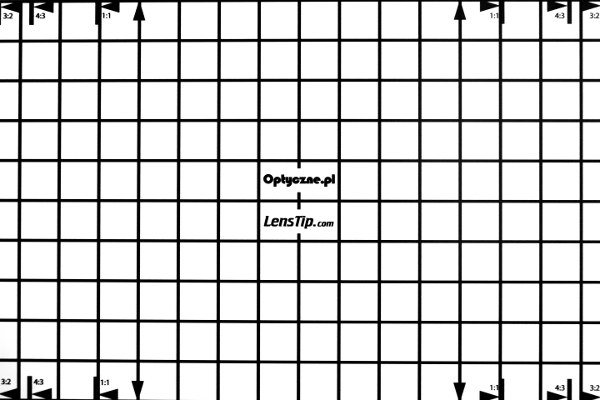

Canon 5D III, 28 mm
Tokina AT-X PRO FX SD 16-28 mm f/2.8 (IF) - Distortion
