Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS

24 May 2016
Arkadiusz Olech

6. Distortion

Fuji belongs to those producers which support the distortion correction of their lenses by software of a camera. In a case of a telephoto 100-400 mm device designed for APS-C sensors the optics engineers might have been tempted to try and correct that aberration with the optics. Well, it’s pretty clear they weren’t.

When it comes to JPEG files the distortion is corrected perfectly – the results we got at 100, 200, 300 and 400 mm amount to respectively: +0.01%, −0.01%, 0.00%, +0.04%. As you see you might safely assume at every focal length the distortion is more or less zero.

The situation in RAW files is quite different, though. Here at every focal length you deal with similar and distinct pincushion distortion which is easy to spot. The results we got at 100, 200, 300 and 400 mm are respectively: :+2.09%, +2.29%, +2.24% and +2.21%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Fujinon X-E1, JPEG, 100 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion

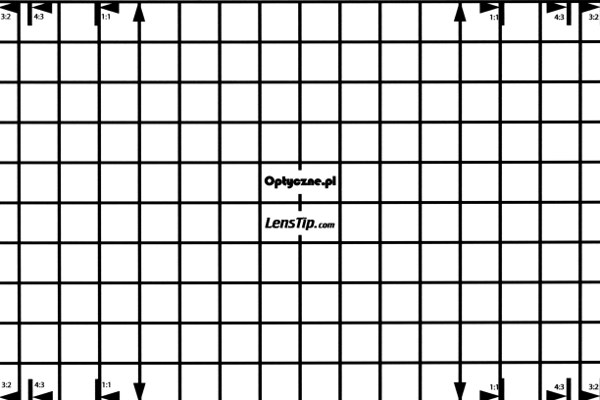

Fujinon X-E1, JPEG, 200 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion

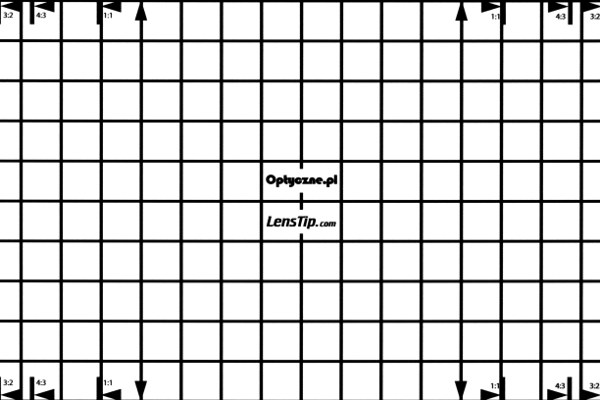

Fujinon X-E1, JPEG, 300 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion

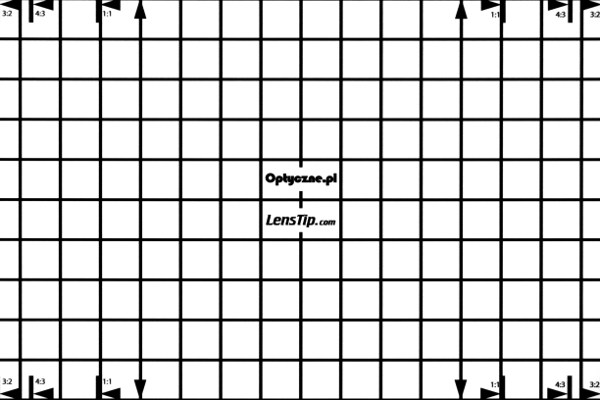

Fujinon X-E1, JPEG, 400 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion

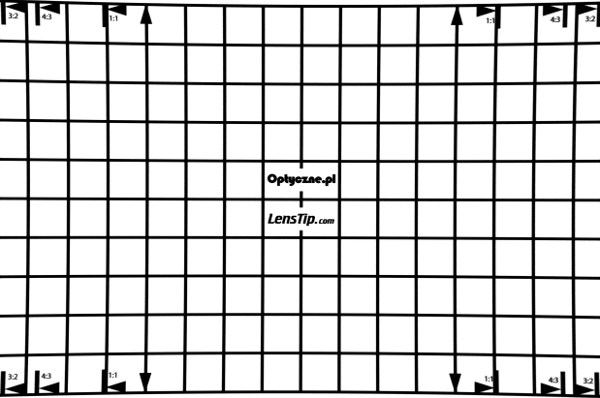

Fujinon X-E1, RAW, 100 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion
Fujinon X-E1, RAW, 200 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion

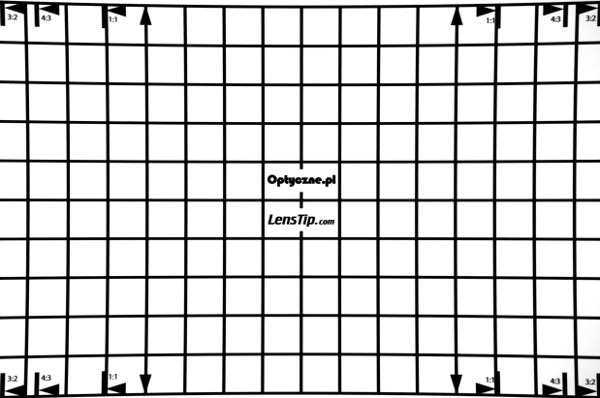

Fujinon X-E1, RAW, 300 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion
Fujinon X-E1, RAW, 400 mm
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Distortion
