7. Coma, astigmatism and bokeh

Thumbnails below show clearly that the tested lens doesn’t have any noticeable problems with the coma correction. The images of the diode are very much alike in the centre and in the frame corner no matter what focal length you employ.

X-E1, 100 mm, f/4.5, center X-E1, 100 mm, f/4.5, corner
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh
X-E1, 200 mm, f/5.0, center X-E1, 200 mm, f/5.0, corner
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh
X-E1, 300 mm, f/5.2, center X-E1, 300 mm, f/5.2, corner
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh
X-E1, 400 mm, f/5.6, center X-E1, 400 mm, f/5.6, corner
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh


The astigmatism, understood as an average difference between horizontal and vertical MTF50 values, amounted to 12% and it is a medium result. It’s also worth mentioning that the astigmatism is the highest at both ends of the focal range and a bit lower in the middle.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

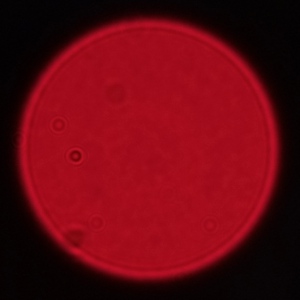

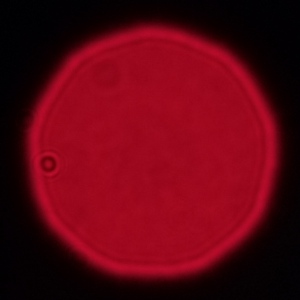

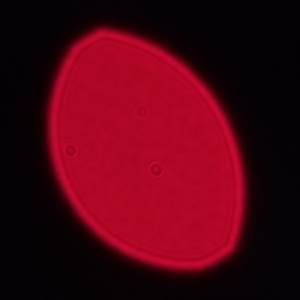

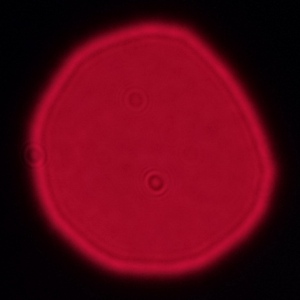

Defocused circles of light look quite nice for a zoom lens. The light spread in the middle is even. Only the rim on the edge might annoy you as its intensity increases with stopping down of the aperture. At the maximum relative aperture you also can notice a significant influence of mechanical vignetting.

X-E1, 300 mm, f/5.2, center X-E1, 300 mm, f/5.2, corner
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh
X-E1, 300 mm, f/7.1, center X-E1, 300 mm, f/7.1, corner
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh
X-E1, 300 mm, f/10.0, center X-E1, 300 mm, f/10.0, corner
Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh Fujifilm Fujinon XF 100-400 mm f/4.5-5.6 R LM OIS - Coma, astigmatism and bokeh
