5. Chromatic and spherical aberration

Chromatic aberration

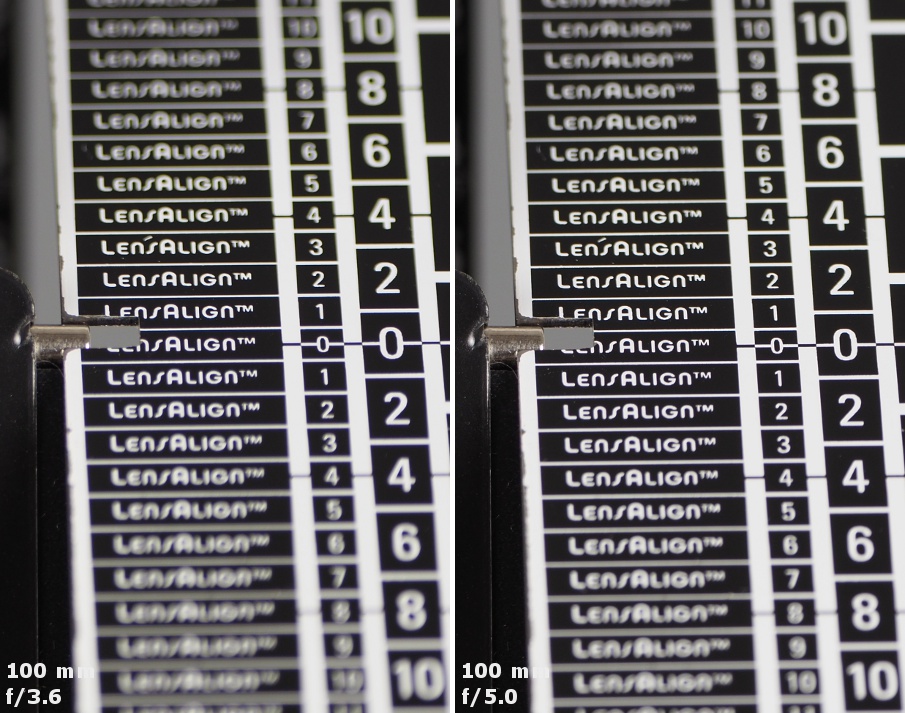

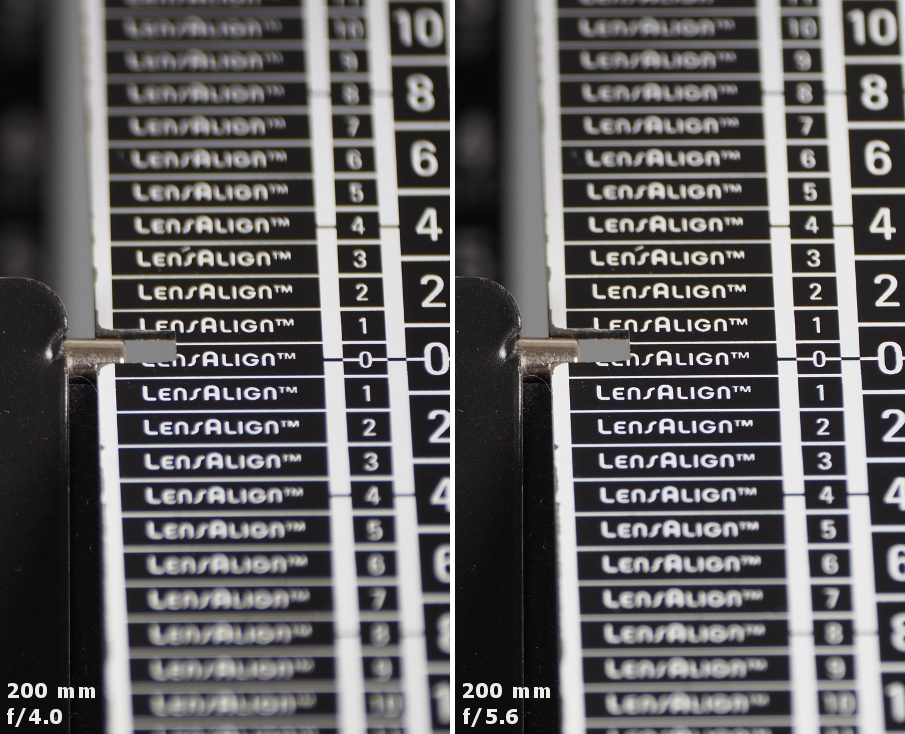

The Panasonic Leica DG Vario-Elmarit 50–200 mm f/2.8–4 ASPH. doesn’t have any problems with longitudinal chromatic aberration as photos below show pretty well. You can notice some colouring of images, especially at 200 mm, but the effect is not especially distinct and it would be difficult to notice it in real life photos.

Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration

Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration


The graph below shows the Panaleica’s 50-200 mm performance when it comes to the lateral chromatic aberration correction.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration


Most problems you’ll experience at the shortest focal length, where the results are close to medium level. At 200 mm the lens fares a bit better and in the middle of the focal range the problem practically disappears, with the aberration being very low no matter what aperture you employ.

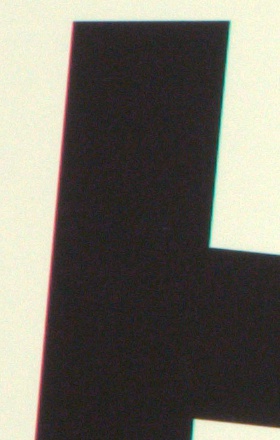

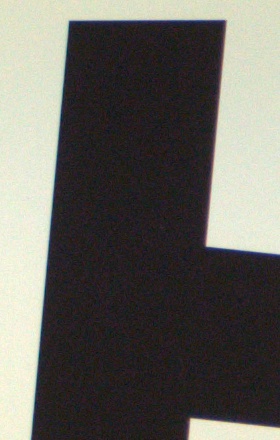

E-M5 II, RAW, 50 mm, f/11.0 E-M5 II, RAW, 150 mm, f/3.9
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration


Spherical aberration

In first photos of this chapter it is clear the lens doesn’t show any ‘focus shift’ effect. The circles we got in front of and bahind the focus aren’t identical but they also don’t feature any distinct differences. It indicates lack of significant problems with spherical aberration correction.

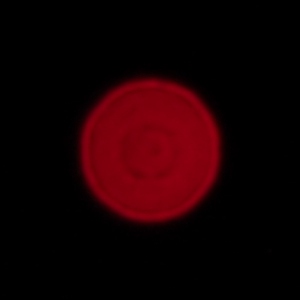

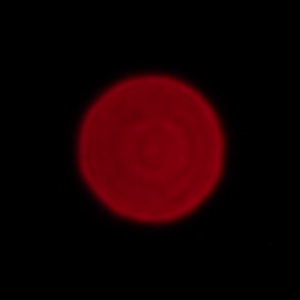

Olympus E-M5 II, 100 mm, f/3.6, in front of Olympus E-M5 II, 100 mm, f/3.6, behind
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration

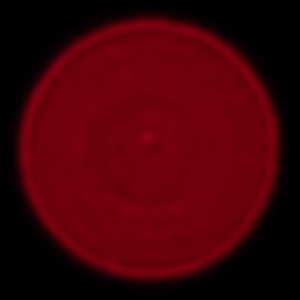

Olympus E-M5 II, 200 mm, f/4.0, in front of Olympus E-M5 II, 200 mm, f/4.0, behind
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Chromatic and spherical aberration
