LensTip.com

Lens review

Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH.

25 June 2018
Arkadiusz Olech

7. Coma, astigmatism and bokeh

The Panasonic Leica DG Vario-Elmarit 50–200 mm f/2.8–4 ASPH. correct the coma very efficiently. You can still notice some slight deformations of diode images but only at the shortest focal length but they can hardly be called problematic. In this category the lens deserves to be assessed very highly.

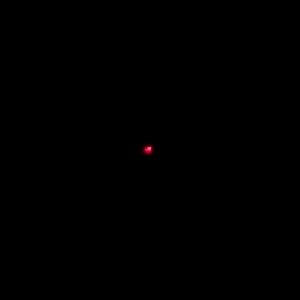

E-M5 II, 50 mm, f/2.8, center E-M5 II, 50 mm, f/2.8, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh
E-M5 II, 100 mm, f/3.6, center E-M5 II, 100 mm, f/3.6, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

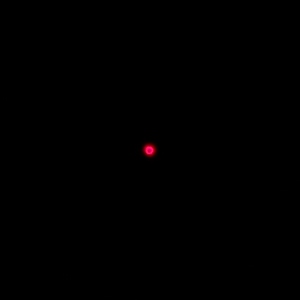

E-M5 II, 150 mm, f/3.9, center E-M5 II, 150 mm, f/3.9, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

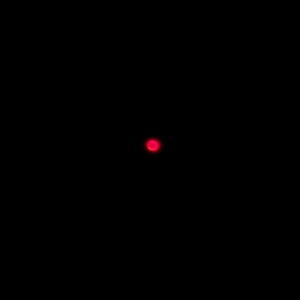

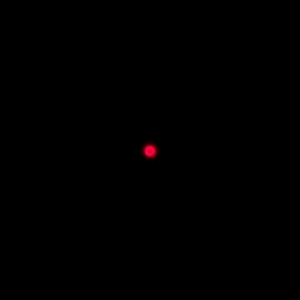

E-M5 II, 200 mm, f/4.0, center E-M5 II, 200 mm, f/4.0, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh


In the case of the Panaleica 50-200 mm astigmatism, understood as an average difference between horizontal and vertical MTF50 values, amounted to 9.5% and such a value can be called medium. It’s worth adding that the 100 mm and the 200 mm focal lengths influence that result the most and the 50 mm focal length contributes the least to its value.

Out-of-focus areas provided by the Panaleica look sensibly well but still you can find several reservations. There is a distinct rim around the circles, you can also notice slightly accented concentric rings, stemming most likely from the presence of aspherical elements. Mechanical vignetting makes itself felt only at the maximum relative aperture for a change.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

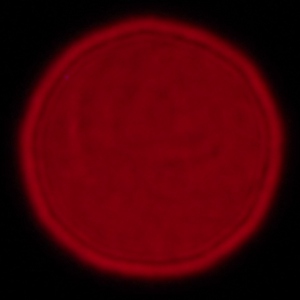

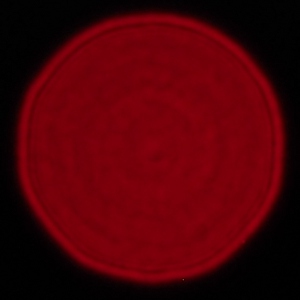

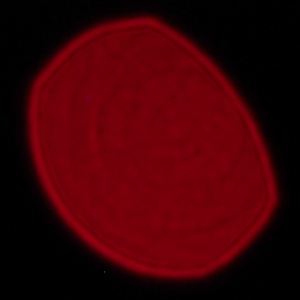

E-M5 II, 100 mm, f/3.6, center E-M5 II, 100 mm, f/3.6, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

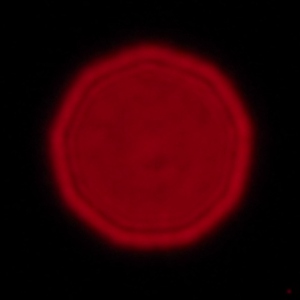

E-M5 II, 100 mm, f/5.0, center E-M5 II, 100 mm, f/5.0, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

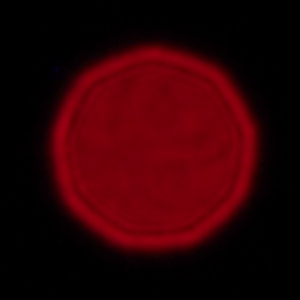

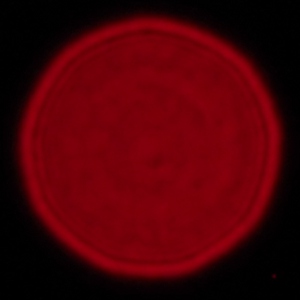

E-M5 II, 100 mm, f/7.1, center E-M5 II, 100 mm, f/7.1, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

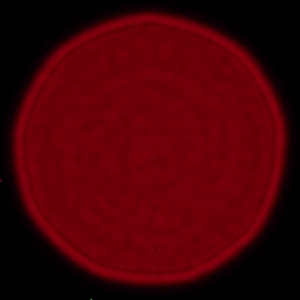

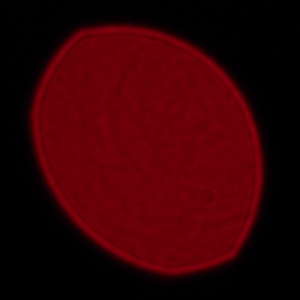

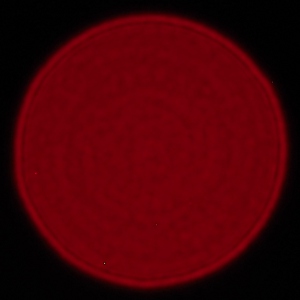

E-M5 II, 200 mm, f/4.0, center E-M5 II, 200 mm, f/4.0, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

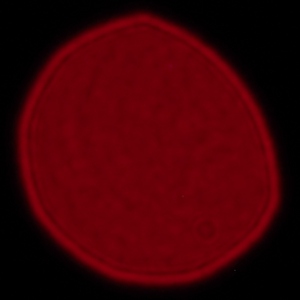

E-M5 II, 200 mm, f/5.6, center E-M5 II, 200 mm, f/5.6, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

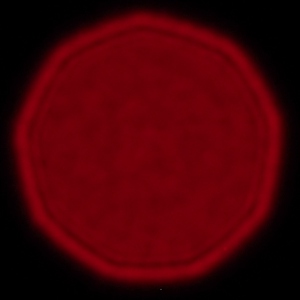

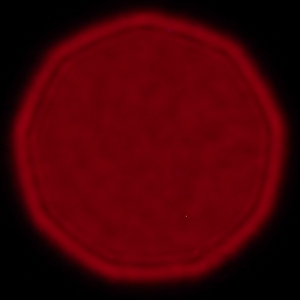

E-M5 II, 200 mm, f/8.0, center E-M5 II, 200 mm, f/8.0, corner
Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 50-200 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh
