Lens review

Fujifilm Fujinon XC 15-45 mm f/3.5-5.6 OIS PZ

14 January 2019
Arkadiusz Olech

6. Distortion

The Fujifilm X system is not consequent when it comes to the approach to the problem of distortion. Sometimes it is corrected by optics, without any help from software. In some cases, especially concerning wide angle lenses, optics constructors strongly support the performance of the lens by the camera distortion correction.

When you consult JPEG files the distortion level is low. At 15 mm you deal with slight ‘barrel’ version of that aberration, amounting to −0.62%, which decreases to almost zero (−0.09%) in the middle of the focal length range and then returns to the initial level at 45 mm (−0.53%). All these results are sufficiently low to say that aberration won’t bother you in real life photos. They also strongly suggest distortion is corrected by software.

One glance at RAW files developed by dcraw shows that the distortion is indeed very high. At 15 mm we got a result of −6.70%. That’s not the end of bad news because the photo shows presence of slight moustache distortion. If you limit our measurements to the 1:1 markings area distortion will increase to a huge level of −7.38%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of the focal length range you already deal with pincushion distortion but its value is not high, amounting to just +1.01%. Still it increases as you move toward the longer end of the focal length range and at 45 mm it reaches a quite noticeable value of +2.89%.

As in the case of the Fujinon 8-16 mm, tested by us not so long ago, there is a huge discrepancy in distortion results on both ends of the focal lengthrange – in this case it amounts to almost 10%. It is a really horrible result.

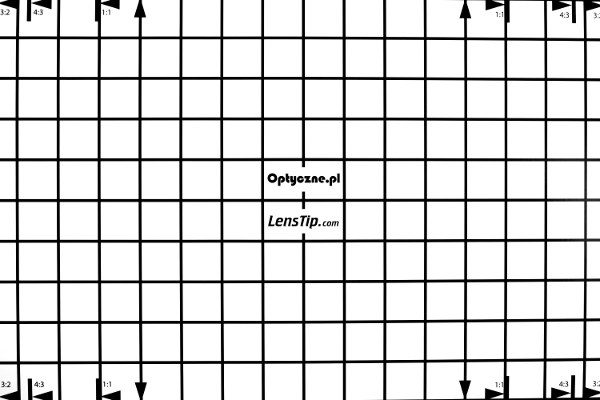

Fujinon X-T2, JPEG, 15 mm
Fujifilm Fujinon XC 15-45 mm f/3.5-5.6 OIS PZ - Distortion

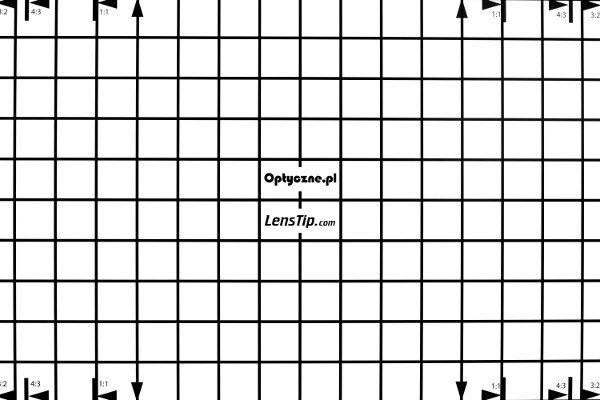

Fujinon X-T2, JPEG, 28 mm
Fujifilm Fujinon XC 15-45 mm f/3.5-5.6 OIS PZ - Distortion

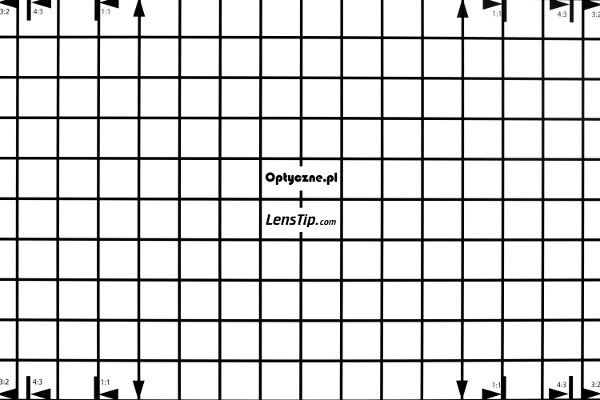

Fujinon X-T2, JPEG, 45 mm
Fujifilm Fujinon XC 15-45 mm f/3.5-5.6 OIS PZ - Distortion

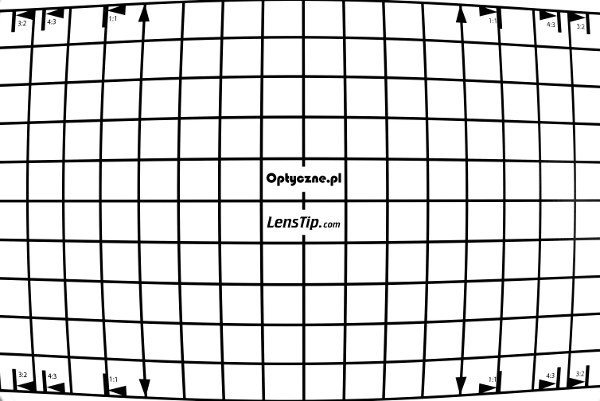

Fujinon X-T2, RAW, 15 mm
Fujifilm Fujinon XC 15-45 mm f/3.5-5.6 OIS PZ - Distortion

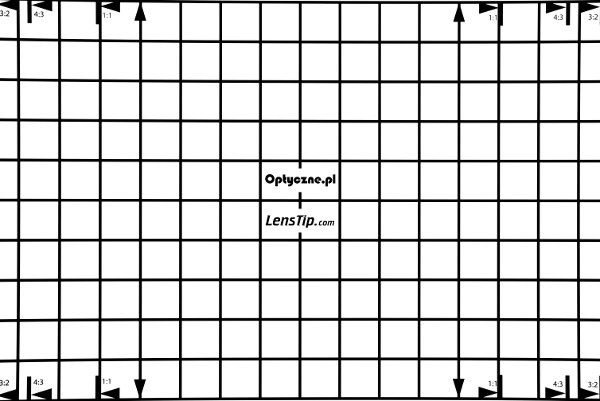

Fujinon X-T2, RAW, 28 mm
Fujifilm Fujinon XC 15-45 mm f/3.5-5.6 OIS PZ - Distortion

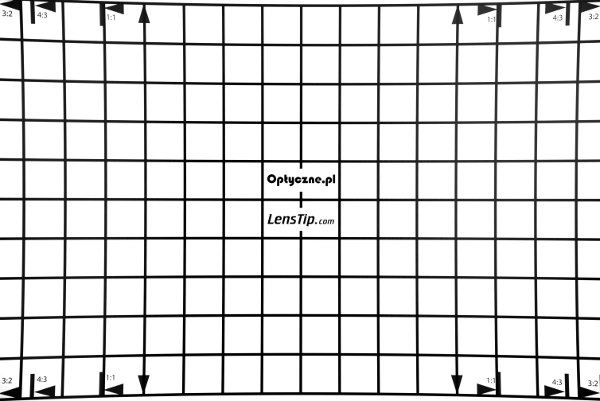

Fujinon X-T2, RAW, 45 mm
Fujifilm Fujinon XC 15-45 mm f/3.5-5.6 OIS PZ - Distortion
