Sigma S 70-200 mm f/2.8 DG OS HSM

30 April 2019
Arkadiusz Olech

8. Vignetting

First let's check how the Sigma S 70-200 mm f/2.8 performs on the smaller APS-C sensor of the Canon 50D – appropriate thumbnails are shown below.

Canon 50D, 70 mm, f/2.8 Canon 50D, 70 mm, f/4.0

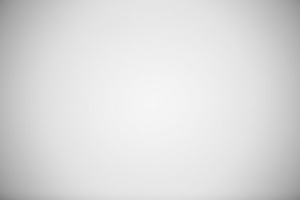

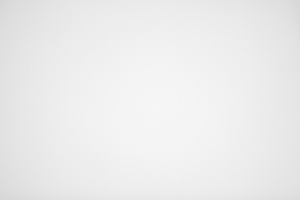

Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

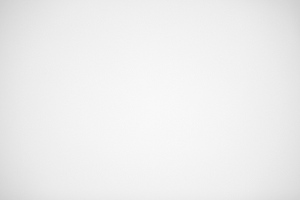

Canon 50D, 135 mm, f/2.8 Canon 50D, 135 mm, f/4.0

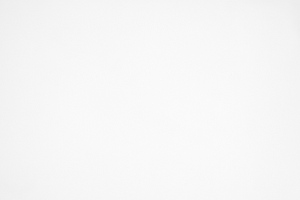

Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

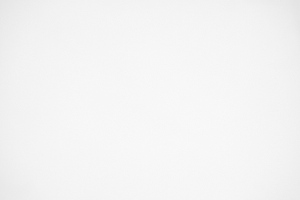

Canon 50D, 200 mm, f/2.8 Canon 50D, 200 mm, f/4.0

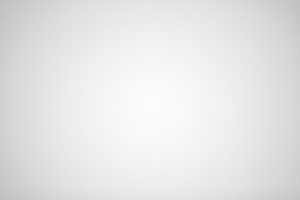

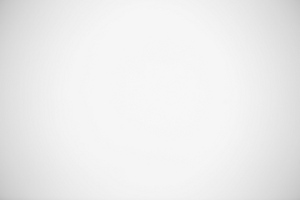

Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting
Canon 50D, 280 mm, (TC), f/4.0 Canon 50D, 280 mm (TC), f/5.6

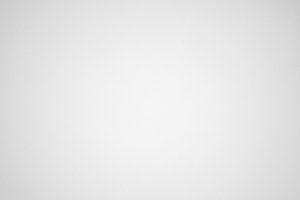

Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting


At 70 mm the vignetting won't be even the smallest problem because by f/2.8 it amounts to just 12% (−0.37 EV), and on stopping down to f/4.0 it decreases to a value of 4% (−0.12 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A similar situation can be observed at 135 mm where, at the maximum relative aperture, the brightness loss in frame corners is 15%(−0.47 EV) and then it decreases to 4% (−0.12 EV) on stopping down the aperture by one stop.

The biggest chances to notice any vignetting on the smaller sensor you get at 200 mm where, by f/2.8, that aberration amounts to 23% (−0.76 EV). The problem disappears almost completely already by f/4.0, where you lose just 7% (−0.20 EV) of light in the frame corners.

After attaching the 1.4x teleconverter the whole set fares a bit better – by f/4.0 its vignetting is 16% (−0.51 EV), and by f/5.6 it gets to merely 4% (−0.13 EV). Now let's check how the situation changes after passing to full frame – respective thumbnails you can find below.

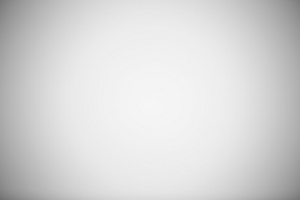

Canon 5D III, 70 mm, f/2.8 Canon 5D III, 70 mm, f/4.0
Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

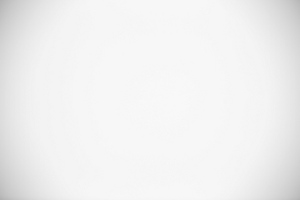

Canon 5D III, 135 mm, f/2.8 Canon 5D III, 135 mm, f/4.0
Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

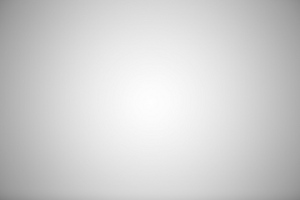

Canon 5D III, 200 mm, f/2.8 Canon 5D III, 200 mm, f/4.0
Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

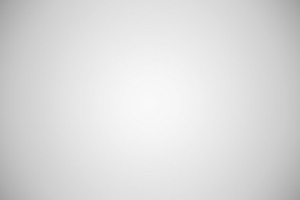

Canon 5D III, 280 mm, (TC), f/4.0 Canon 5D III, 280 mm (TC), f/5.6
Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting


If you employ the 70 mm focal length and the maximum relative aperture you face brightness loss of 43% (−1.60 EV) in frame corners, a result just by one percentage point better than the result of the predecessor. Fortunately, as soon as you stop down the aperture to f/4.0 you can reduce vignetting to a moderate level 19% (−0.62 EV), and after employing the f/5.6 aperture you can forget about this aberration as it amounts to just 10% (−0.29 EV).

In the middle of the focal range the situation worsens a bit and by f/2.8 the vignetting reaches 50% (−2.02 EV), a value by 5% higher than that of its predecessor. By f/4.0, f/5.6 and f/8.0 we obtained the following results: 26% (−0.87 EV), 16% (−0.50 EV) and 10% (−0.29 EV) respectively.

At the maximum focal length the vignetting performance is improved because by f/2.8 you lose just 45% (−1.74 EV) of light - it's 4% lower than in the case of the predecessor. As a result already by f/4.0 this aberration becomes moderate, with a value of 21% (−0.68 EV), and by f/5.6 it disappears completely, reaching just 10% (−0.31 EV).

The older Sigma joined with the older version of the 1.4x converter created a bottleneck in vignetting which level got to a monstruous level of 67%. The new Sigma S 70-200 mm f/2.8 OS and the new 1.4x teleconverter fare much better. By f/4.0 the brightness loss in frame corners is 35% (-1.23 EV) so over 30% lower than the result of the older set. Vignetting stops being bothersome already on stopping down the aperture to f/5.6, where it gets to 12%(−0.38 EV) and disappears completely by f/8.0, where it amounts to just 3% (−0.08 EV).

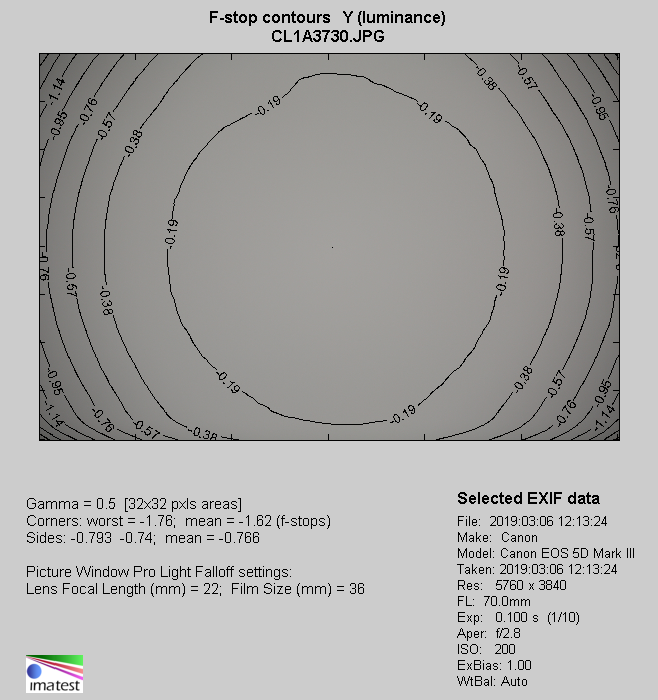

Canon 5D Mk III, 70 mm, f/2.8
Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

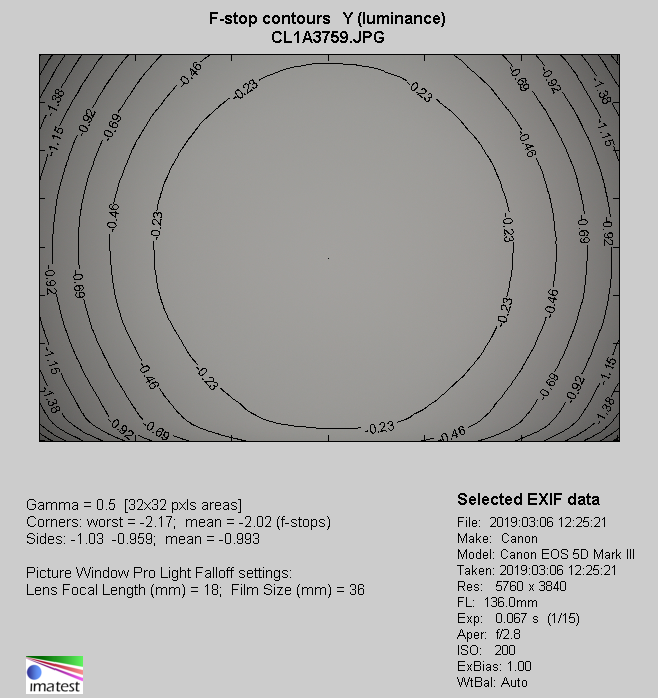

Canon 5D Mk III, 135 mm, f/2.8
Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

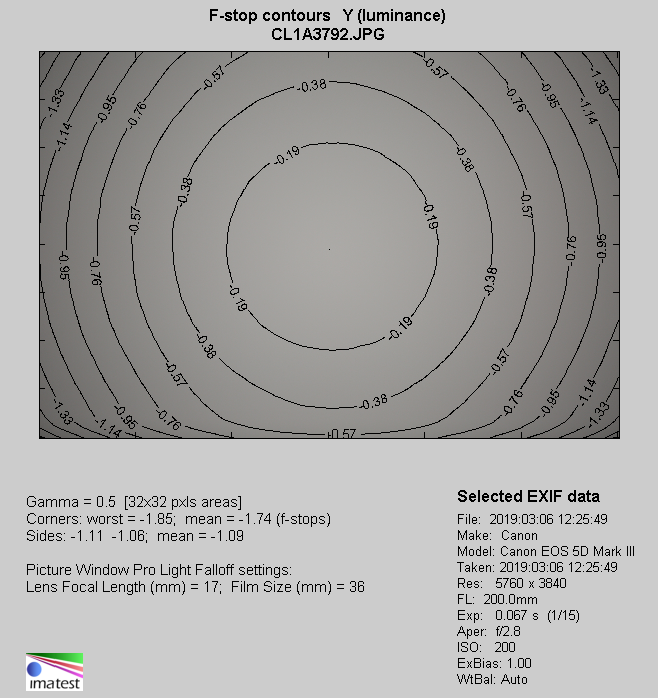

Canon 5D Mk III, 200 mm, f/2.8
Sigma S 70-200 mm f/2.8 DG OS HSM - Vignetting

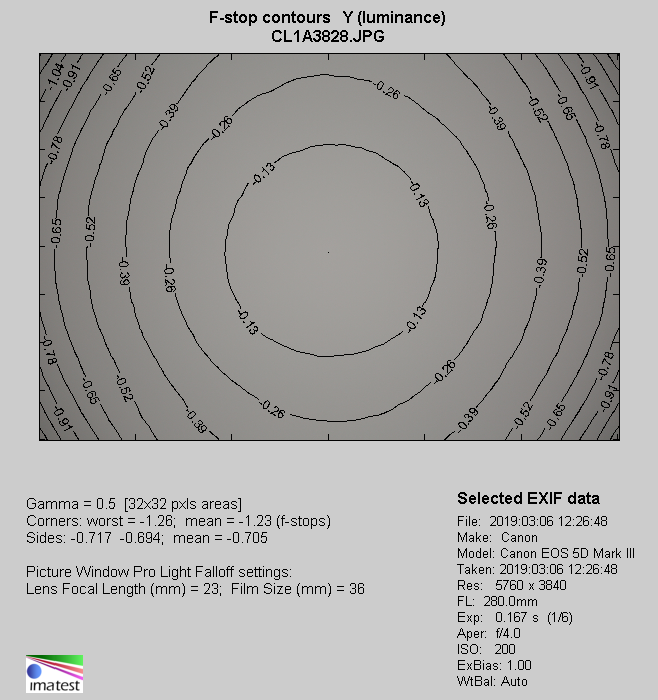

Canon 5D Mk III, 280 mm (TC), f/4.0
