Lens review

Sigma S 70-200 mm f/2.8 DG OS HSM

30 April 2019
Arkadiusz Olech

6. Distortion

The previous stabilized Sigma 70-200 mm f/2.8 didn't stand out in this category when compared to its direct rivals. On the full frame it got results of −1.36%, +0.75% and +1.59% at, respectively, 70, 135 and 200 mm. It fared weaker than not only the brand name Canon and Nikon devices but also than the Tamron SP 70-200 mm f/2.8 VC.

In the case of the new model we expected a better performance in this category and... unfortunately we were disappointed. An improvement is only visible at 70 mm where distortion decreased to −0.64%. You have to pay for it with a weaker performance in the middle of the focal range (+1.32%) and a slight decrease at 200 mm (+1.62%).

Of course as long as you stick to the smaller APS-C/DX sensor deformations are practically invisible, amounting to −0.36%, +0.47% and +0.62% at 70, 135 and 200 mm respectively.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Attaching the teleconverter helps noticeably to fight off distortion – its level amounts to +0.28% for the APS-C/DX sensor and to +0.53% for full frame.

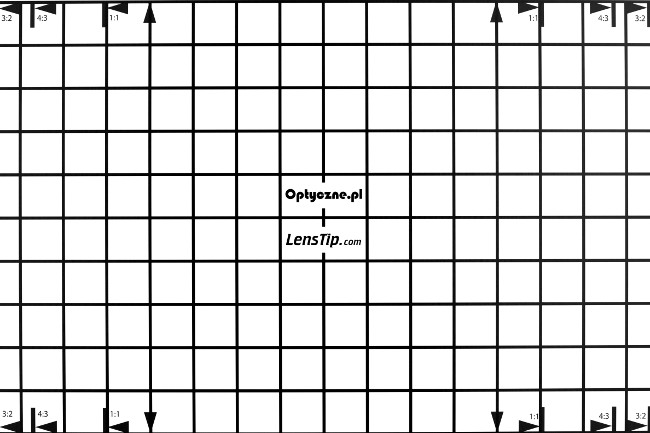

Canon 50D, 70 mm
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion

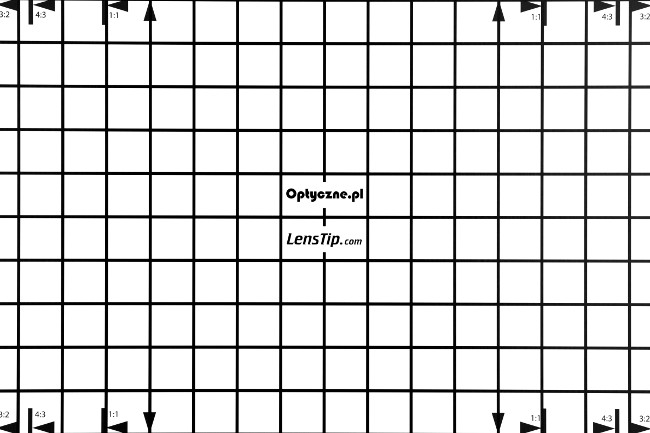

Canon 50D, 135 mm
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion

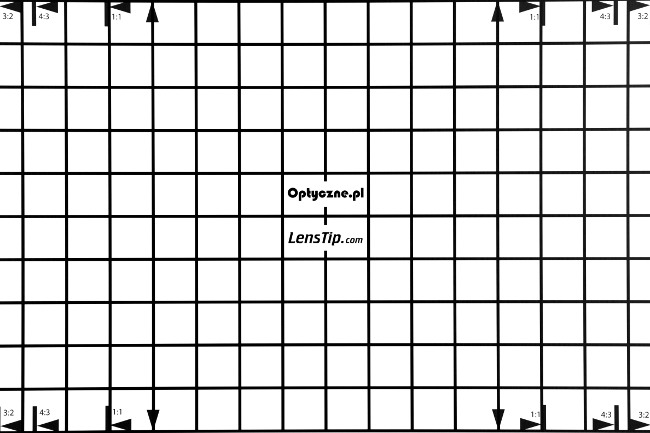

Canon 50D, 200 mm
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion

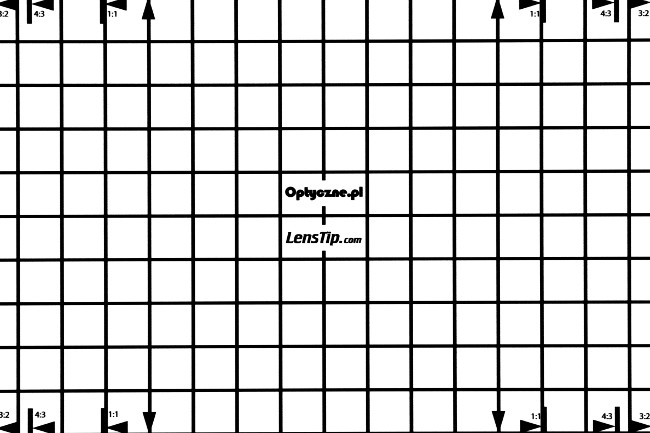

Canon 50D, 280 mm (TC)
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion

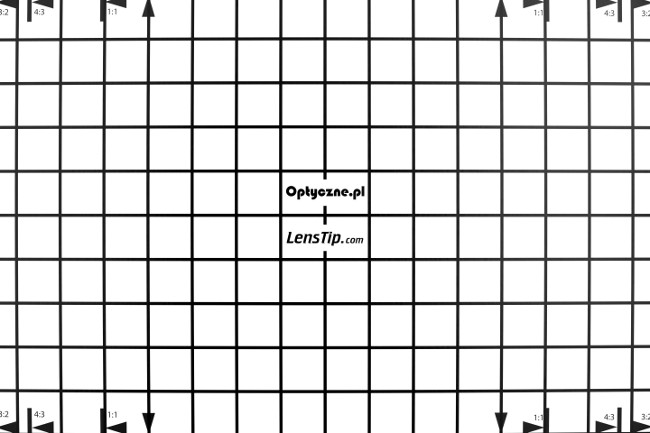

Canon 5D III, 70 mm
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion

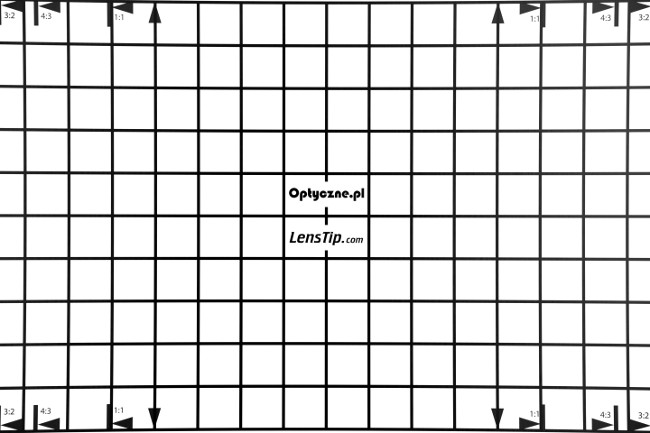

Canon 5D III, 135 mm
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion

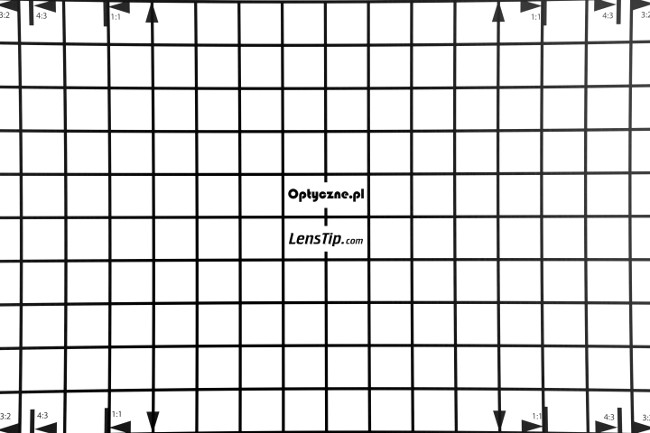

Canon 5D III, 200 mm
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion

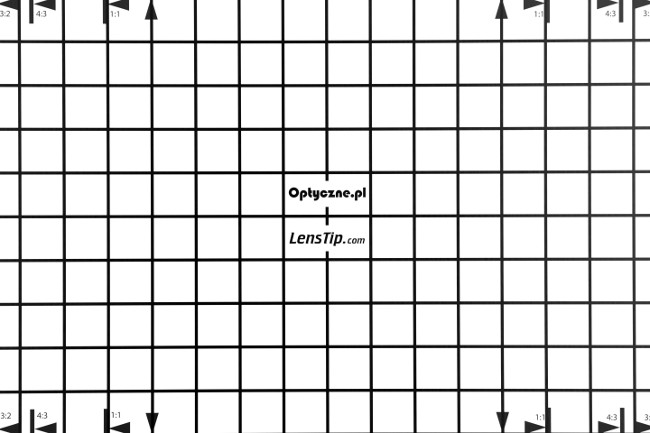

Canon 5D III, 280 mm (TC)
Sigma S 70-200 mm f/2.8 DG OS HSM - Distortion
