Viltrox PFU RBMH 20 mm f/1.8 ASPH

20 May 2019
Arkadiusz Olech

8. Vignetting

First let's check the vignetting performance on the smaller APS-C sensor – appropriate thumbnails are shown below.

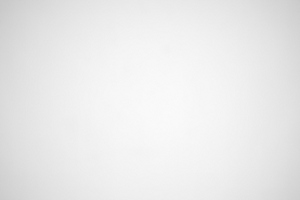

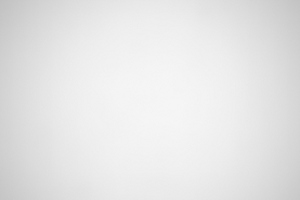

A7R II, APS-C, f/1.8 A7R II, APS-C, f/2.0
Viltrox PFU RBMH 20 mm f/1.8 ASPH - Vignetting Viltrox PFU RBMH 20 mm f/1.8 ASPH - Vignetting


No reasons to worry – at the maximum relative aperture the vignetting reaches a moderate level of 20% (−0.64 EV) and it decreases to 18% (−0.58 EV) on stopping down to f/2.0. By f/2.8 and higher apertures the brightness loss stays around 17% (−0.54 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let's see how the situation changes after passing to full frame.

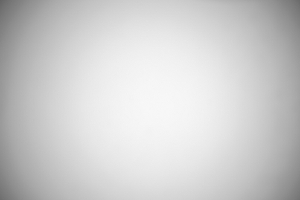

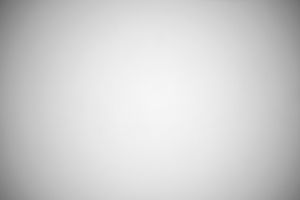

A7R II, FF, f/1.8 A7R II, FF, f/2.0
Viltrox PFU RBMH 20 mm f/1.8 ASPH - Vignetting Viltrox PFU RBMH 20 mm f/1.8 ASPH - Vignetting

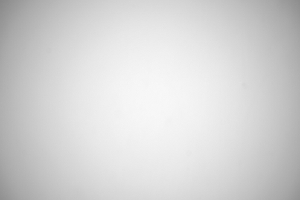

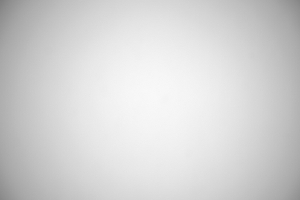

A7R II, FF, f/2.8 A7R II, FF, f/4.0
Viltrox PFU RBMH 20 mm f/1.8 ASPH - Vignetting Viltrox PFU RBMH 20 mm f/1.8 ASPH - Vignetting


At the maximum relative aperture the light fall-off in the frame corners amounts to as much as 56% (−2.38 EV) and it decreases to 53% (−2.21 EV) on stopping down the aperture to f/2.0. It is a better result than that of the Tokina Firin which had as much as 61% of brightness loss at its maximum relative aperture.

What's interesting, vignetting reacts very slowly to stopping down. By f/2.8 we got 45% (−1.74 EV), and by f/4.0 its level decreased slightly to 43% (−1.61 EV). Further stopping down didn't have any measureable influence on vignetting; it means a high result of over 40% is maintained even by f/8 and f/16.

It is a very curious situation. In the previous chapter we noticed lack of truncation of light circles; here we deal with very sluggish vignetting decrease even after significant stopping down of the aperture. The conclusion can be only one: glass and coating of this lens influence vignetting the most. Perhaps the producer used such anit-reflective coatings which provide weak transmission for light falling at obtuse angles. You cannot also exclude a pronounced influence connected to the lack of telecentricity and very big angles at which rays of light fall on microelements of the sensor.

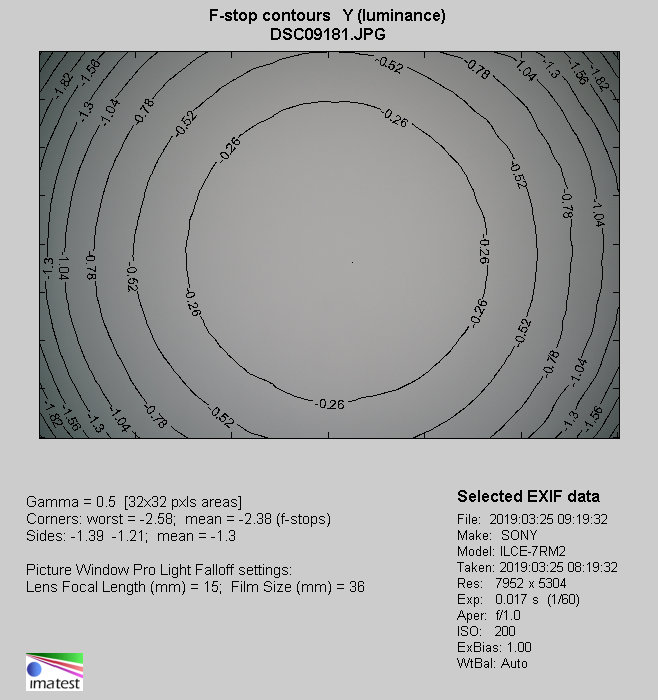

Sony A7R II, JPEG, f/1.8
Viltrox PFU RBMH 20 mm f/1.8 ASPH - Vignetting
