Sigma A 14-24 mm f/2.8 DG DN

23 December 2019
Arkadiusz Olech

8. Vignetting

First let's check how the Sigma A 14–24 mm f/2.8 DG DN fares on the smaller APS-C sensor – appropriate thumbnails you can find below.

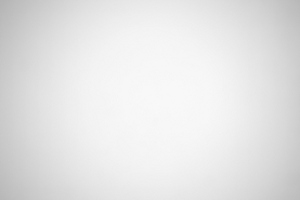

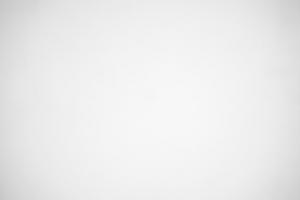

A7R II, APS-C, 14 mm, f/2.8 A7R II, APS-C, 14 mm, f/4.0
Sigma A 14-24 mm f/2.8 DG DN - Vignetting Sigma A 14-24 mm f/2.8 DG DN - Vignetting

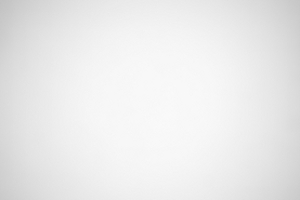

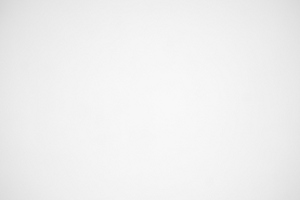

A7R II, APS-C, 19 mm, f/2.8 A7R II, APS-C, 19 mm, f/4.0
Sigma A 14-24 mm f/2.8 DG DN - Vignetting Sigma A 14-24 mm f/2.8 DG DN - Vignetting

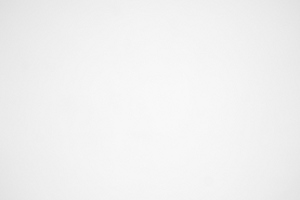

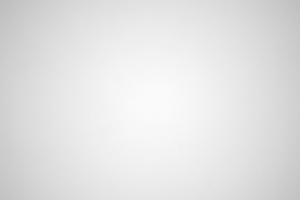

A7R II, APS-C, 24 mm, f/2.8 A7R II, APS-C, 24 mm, f/4.0
Sigma A 14-24 mm f/2.8 DG DN - Vignetting Sigma A 14-24 mm f/2.8 DG DN - Vignetting


At the combination of 14 mm focal length and f/2.8 aperture you deal with a moderate level, that of 26% (−0.86 EV), which decreases to 18% (−0.58 EV) on stopping down the aperture to f/4.0. By f/5.6 vignetting is 12% (−0.38 EV) and further stopping down doesn't make it decrease anymore in a noticeable manner.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of the focal range there are almost no problems at all. At the maximum relative aperture the brightness fall-off in the frame corners reaches 20% (−0.64 EV) and then it decreases to 12% (−0.36 EV) on stopping down the aperture to f/4.0. By f/5.6 the vignetting becomes imperceptible, reaching just 10% (−0.30 EV).

At 24 mm focal length and by f/2.8 brightness loss is 23% (−0.76 EV), but already by f/4.0 it becomes imperceptible, dropping to 9% (−0.27 EV).

Now let's check how the tested lens manages on full frame – below you can find appropriate images.

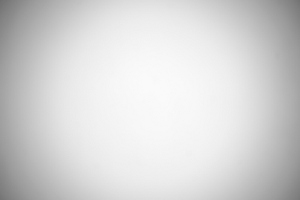

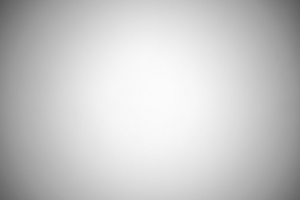

A7R II, FF, 14 mm, f/2.8 A7R II, FF, 14 mm, f/4.0
Sigma A 14-24 mm f/2.8 DG DN - Vignetting Sigma A 14-24 mm f/2.8 DG DN - Vignetting

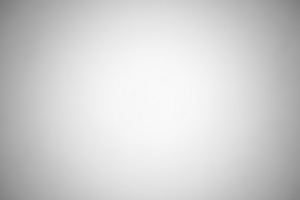

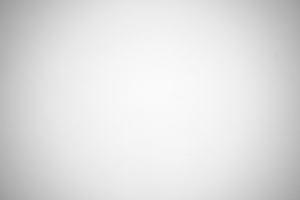

A7R II, FF, 19 mm, f/2.8 A7R II, FF, 19 mm, f/4.0
Sigma A 14-24 mm f/2.8 DG DN - Vignetting Sigma A 14-24 mm f/2.8 DG DN - Vignetting

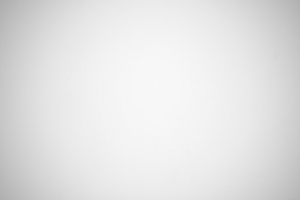

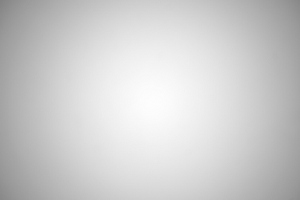

A7R II, FF, 24 mm, f/2.8 A7R II, FF, 24 mm, f/4.0
Sigma A 14-24 mm f/2.8 DG DN - Vignetting Sigma A 14-24 mm f/2.8 DG DN - Vignetting


This time there are far more problems because at 14 mm and by f/2.8 vignetting reaches a very high level of 62% (−2.79 EV). It is a result a bit higher than in the reflex camera model, which was 58%. Still, taking into account the fact that the mirrorless version is smaller and physically ligher, facing more serious telecentricity problems, these 4% of vignetting increase seem to be a small price to pay. It doesn't change the fact that both Sigmas 14-24 mm lose a lot of light on full frame, sad but true.

The problems don't end here. Because of the lack of telecentricity, mentioned before, vignetting hardly reacts to stopping down. By f/4.0 that aberration gets to 53% (−2.19 EV), by f/5.6 it is 49% (−1.93 EV), and by f/8.0 it amounts as much as 44% (−1.67 EV). Even by f/11 and f/16 you don't have any problems with noticing vignetting because, by these apertures, its level amounts to, respectively, 38% (−1.38 EV) and 33% (−1.17 EV).

At 19 mm focal length you can notice a distinct improvement of the performance but still the vignetting remains not especially susceptible to stopping down. By f/2.8 the brightness loss in frame corners amounts to 48% (−1.91 EV), by f/4.0 it reaches 36% (−1.30 EV), by f/5.6 it gets to 30% (−1.02 EV), and by f/8.0 it drops to 26% (−0.85 EV). Further stopping down doesn't have any measurable influence on vignetting any longer.

Very similar results you can observe at the maximum focal length. By f/2.8 we got a value of 46% (−1.78 EV) and it decreases to 29% (−0.98 EV) on stopping down the aperture to f/4.0. By f/5.6 vignetting amounts to 21% (−0.70 EV) and it doesn't change further even after a more pronounced stopping down of the aperture.

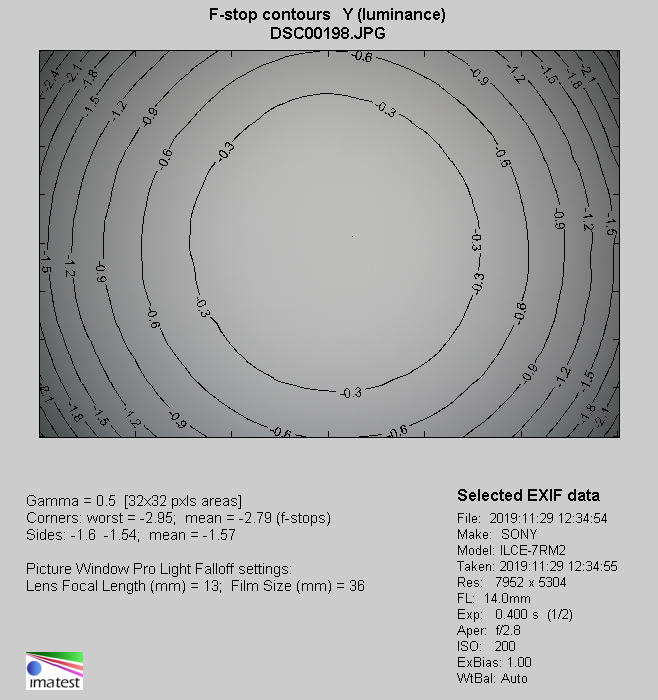

Sony A7R II, 14 mm, f/2.8
Sigma A 14-24 mm f/2.8 DG DN - Vignetting

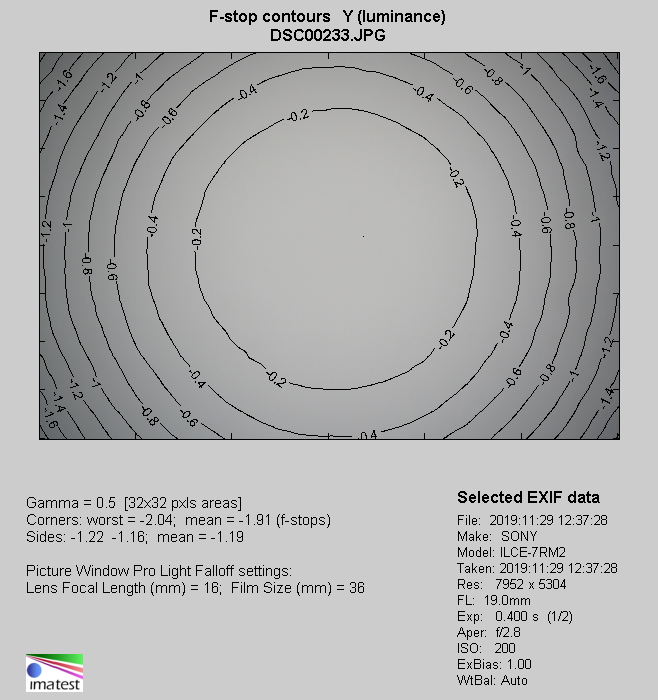

Sony A7R II, 19 mm, f/2.8
Sigma A 14-24 mm f/2.8 DG DN - Vignetting

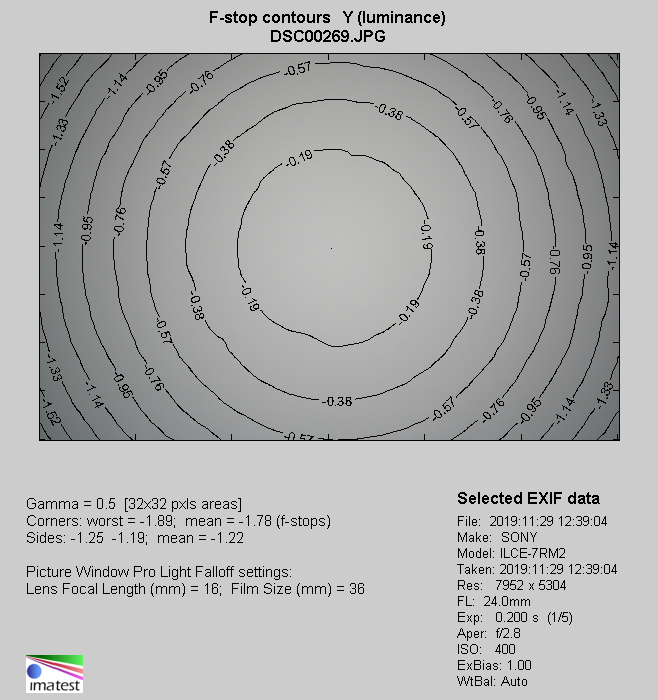

Sony A7R II, 24 mm, f/2.8
Sigma A 14-24 mm f/2.8 DG DN - Vignetting
