LensTip.com

Lens review

Venus Optics LAOWA 17 mm f/1.8 MFT II

28 January 2020
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Venus Optics LAOWA 17 mm f/1.8 MFT II is an instrument without any contacts so a camera body doesn't know what lens is attached to it; it also cannot try to correct its aberrations. The only operation takes place when you pass from RAW to JPEG files - it consists of cropping the field of view a bit. The cropping doesn't influence distortion in a noticeable manner because the measurements you get for both types of files are in accordance with each other within the limit of measurement error. In the case of JPEG files we got a result of −2.35%, and in the case of RAW files, developped with dcraw program, it was −2.38%.

It's a level a tad too high for a prime lens with an angle of view of about 65 degrees. Results of most of full frame 35 mm lenses range from −1 to −2%, and the best of them can reduce that aberration to imperceptible levels around −0.5%. It proves a prime lens can be properly corrected in this category; it's a pity the Laowa didn't even try to fight off distortion.

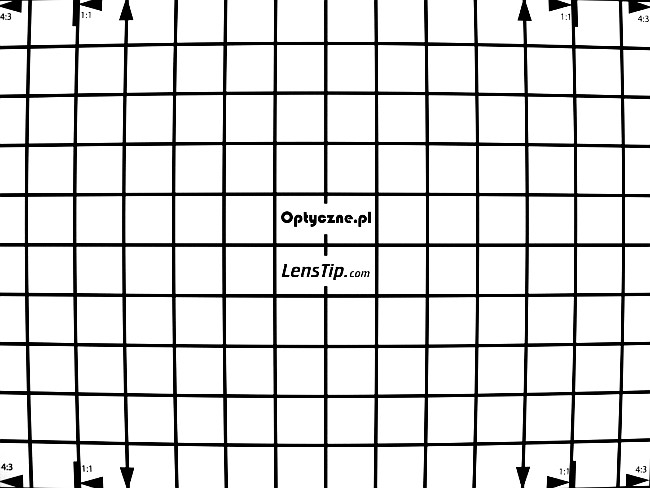

Olympus E-M5 II, 17 mm, JPEG
Venus Optics LAOWA 17 mm f/1.8 MFT II - Distortion

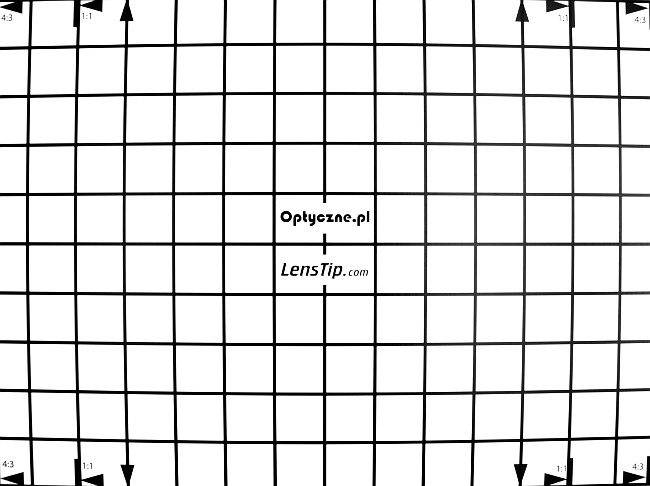

Olympus E-M5 II, 17 mm, RAW
Venus Optics LAOWA 17 mm f/1.8 MFT II - Distortion
