Lens review

Venus Optics LAOWA 17 mm f/1.8 MFT II

28 January 2020
Arkadiusz Olech

8. Vignetting

Let's glance at thumbnails, presented below, in order to assess vignetting of the tested lens on JPEG files; these were produced with the help of the Olympus O-MD E-M5 Mark II.

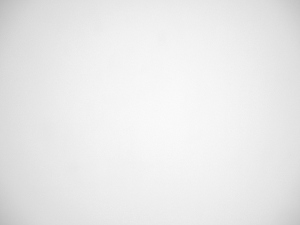

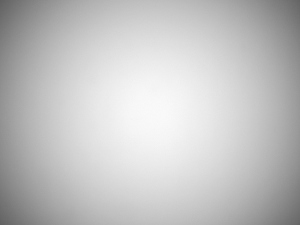

Olympus E-M5 II, JPEG, f/1.8 Olympus E-M5 II, JPEG, f/2.8
Venus Optics LAOWA 17 mm f/1.8 MFT II - Vignetting Venus Optics LAOWA 17 mm f/1.8 MFT II - Vignetting

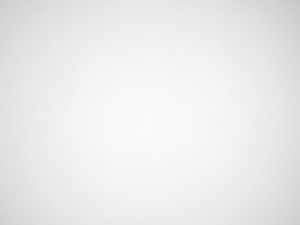

Olympus E-M5 II, JPEG, f/4.0 Olympus E-M5 II, JPEG, f/5.6
Venus Optics LAOWA 17 mm f/1.8 MFT II - Vignetting Venus Optics LAOWA 17 mm f/1.8 MFT II - Vignetting


Small physical dimensions of the tested lens had to influence the performance in this category. At the maximum relative aperture the brightness loss in frame corners is huge, amounting to as much as 59% (−2.59 EV). In the case of such a small detector as the Micro 4/3 it is a really high result.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

By f/2.8 vignetting decreases to a still visible value of 35% (−1.25 EV), and by f/4.0 it drops further to 22% (−0.73 EV). A low level, descending to the border of perception, is reached by f/5.6 and f/8.0 where we got the following results: 18% (−0.58 EV) and17% (−0.55 EV) respectively. Further stopping down didn't have any measurable influence on vignetting.

Olympus OM-D E-M5 Mark II, JPEG, f/1.8
Venus Optics LAOWA 17 mm f/1.8 MFT II - Vignetting
