8. Vignetting

Let's check how the tested lens performs in this category by examining both JPEG and RAW files developped with thrid-party software.

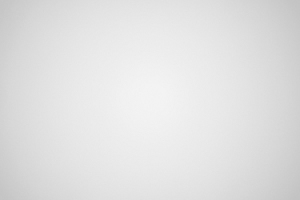

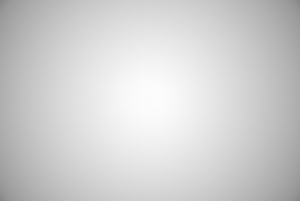

X-T2, JPEG, f/2.0 X-T2, RAW, f/2.0
Fujifilm Fujinon XC 35 mm f/2 - Vignetting Fujifilm Fujinon XC 35 mm f/2 - Vignetting

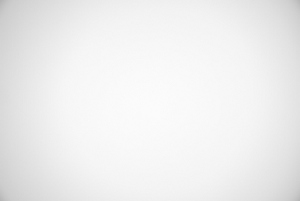

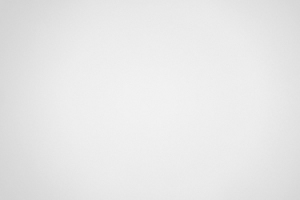

X-T2, JPEG, f/2.8 X-T2, RAW, f/2.8
Fujifilm Fujinon XC 35 mm f/2 - Vignetting Fujifilm Fujinon XC 35 mm f/2 - Vignetting

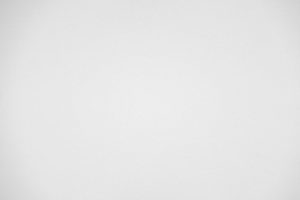

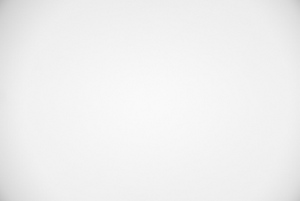

X-T2, JPEG, f/4.0 X-T2, RAW, f/4.0
Fujifilm Fujinon XC 35 mm f/2 - Vignetting Fujifilm Fujinon XC 35 mm f/2 - Vignetting


When you work with JPEG files you don't have to worry almost at all. Already at the maximum relative aperture vignetting amounts to just 19% (−0.61 EV), and on stopping down to f/2.8 it decreases to a level of 11% (−0.35 EV). What's interesting, changing the aperture to f/4.0 doesn't make any big difference and only after employing f/5.6 the problem disappears completely (7%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Still, only analysis of RAW files developped by independent software is able to reveal the truth about how optics deals with vignetting. There are far more problems, especially at the maximum relative aperture, where this aberration reaches 45% (−1.75 EV). On the one hand it's a lot, on the other hand the result is hardly a surprise – when you try to combine small physical dimensions and a good f/2.0 aperture fastness it cannot end well. Quid pro quo...

When you stop down the aperture to f/2.8 vignetting decreases to 25% (−0.85 EV), and by f/4.0 it drops to a level of 20% (−0.64 EV). On further stopping down the decrease of vignetting is slight. By f/5.6 the aberration reaches 18% (−056 EV), and by f/8.0 it amounts to 14% (−0.46 EV). You get some, but fortunately small chances, to notice light fall-off even by f/11 where that aberration's level approaches 11% (−0.33 EV).

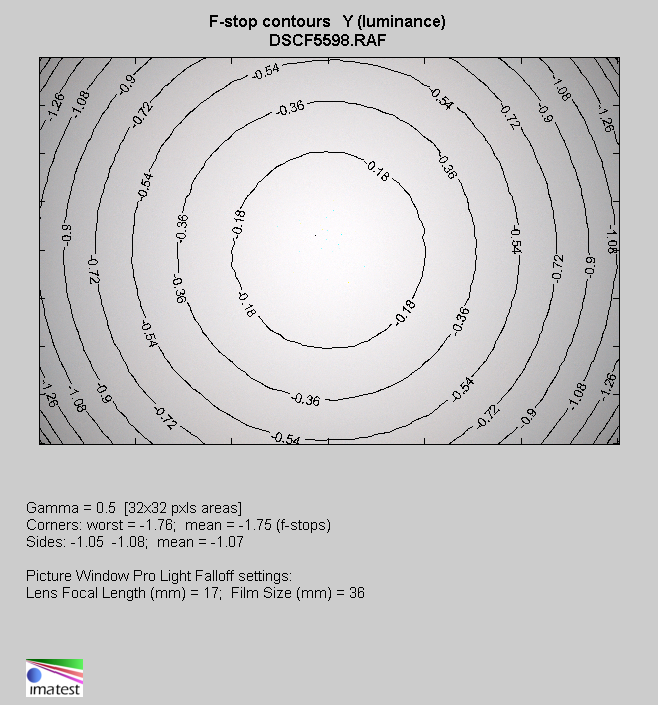

Fujifilm X-T2, RAW, f/2.0
Fujifilm Fujinon XC 35 mm f/2 - Vignetting
