LensTip.com

Lens review

Viltrox AF 23 mm f/1.4 XF

11 October 2020
Maciej Latałło

3. Build quality

Our chart presents a comparison of basic properties between the Viltrox AF 23 mm f/1.4 XF and its rivals with similar parameters. When it comes to dimensions and weight the Viltrox can be positioned in the middle of the group, similar thing can be said about its filter diameter. The complexity of optics is another matter – the Viltrox with the Fujinon feature the highest number of elements and when it comes to the number of groups the tested lens remains an indisputable leader.

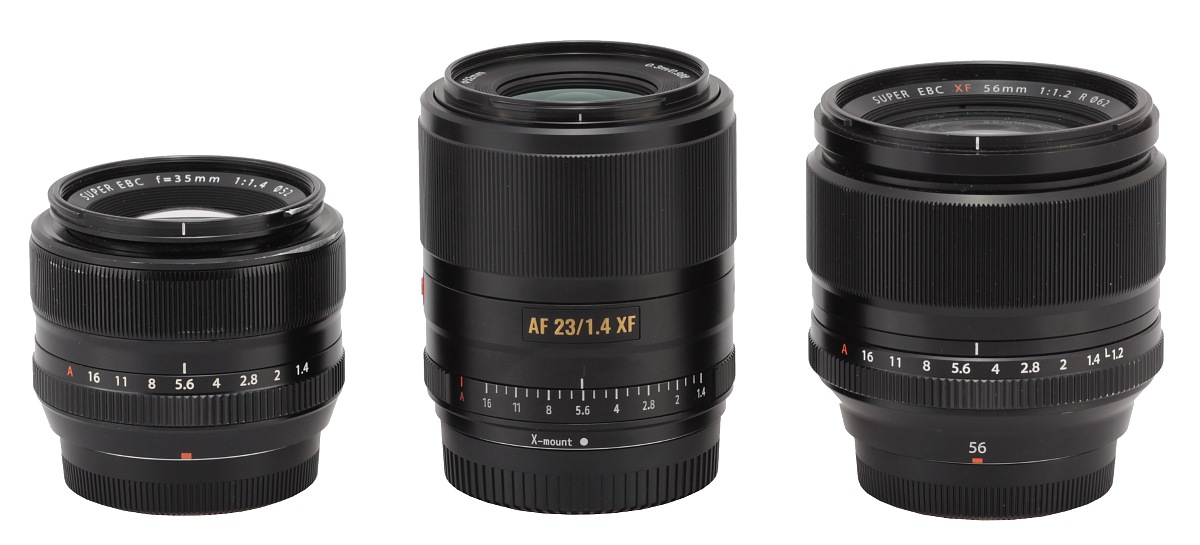

In the photo below the subject of our test is positioned between two Fujinons, the XF 35 mm f/1.4 R and the XF 56 mm f/1.2 R.

Viltrox AF 23 mm f/1.4 XF - Build quality

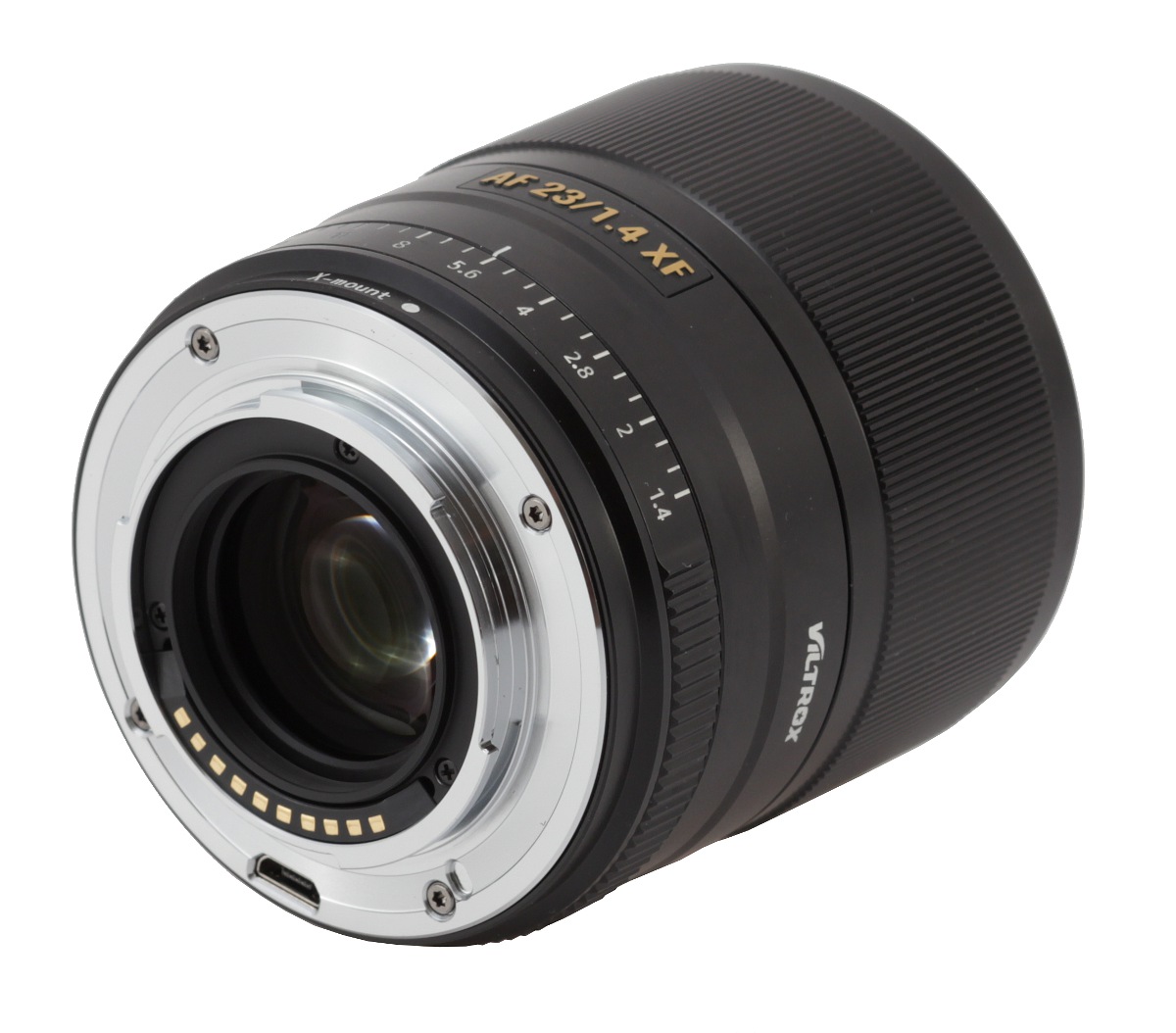

The tested lens starts with a metal mount surrounding a contact plate and a rear element, 25 mm in diameter. The element is hidden just several milimeters inside the casing and the area around it is well matted and black. From this side everything looks very well.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Viltrox AF 23 mm f/1.4 XF - Build quality

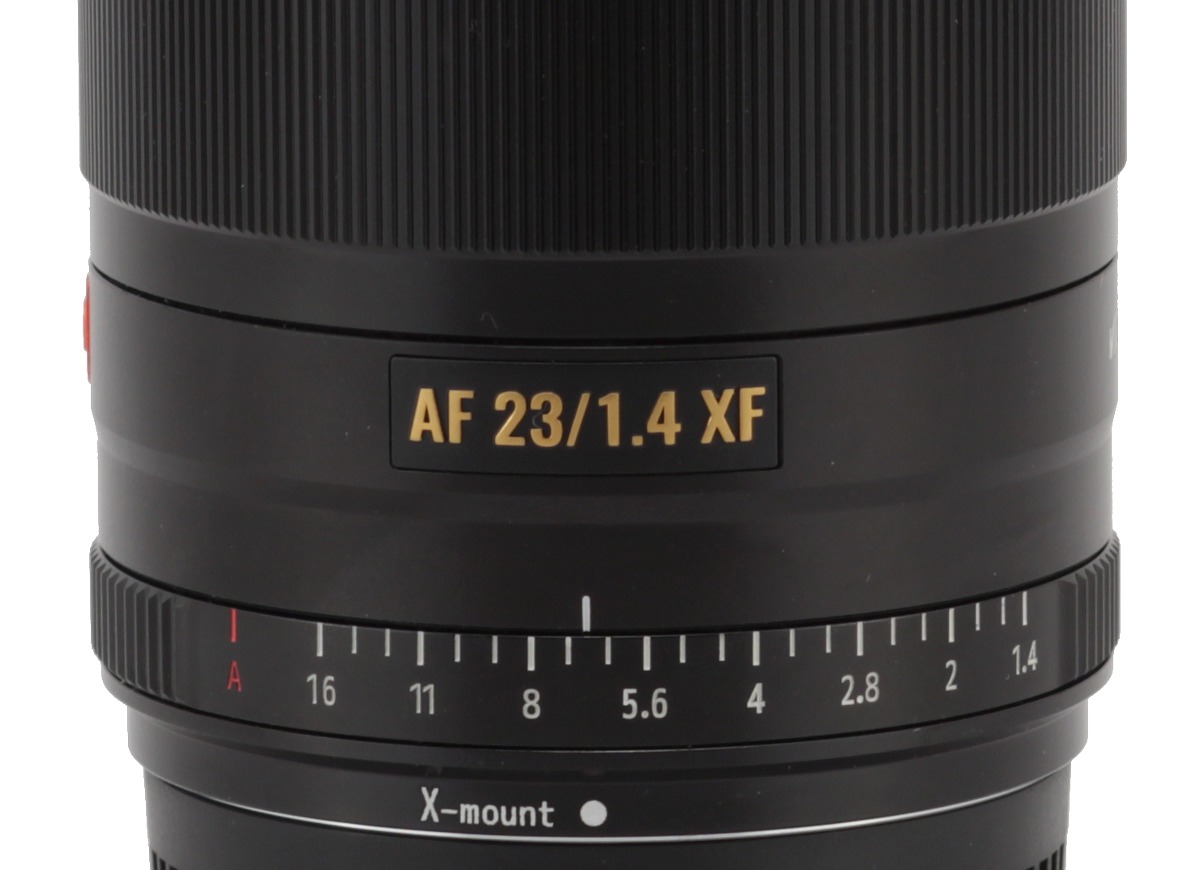

The barrel of the Viltrox 1.4/23 starts with a narrow, metal ring that doesn't move; it features the serial number and mount version of the instrument. Then you see an aperture ring, just 7.5 mm wide, with ribbed sides that allow you a firmer grip. In the middle there are aperture values with markings up to 1/3 EV but it should be mentioned that the ring is clickless so you can turn it as you wish, without paying the slightest attention to the markings.

Viltrox AF 23 mm f/1.4 XF - Build quality

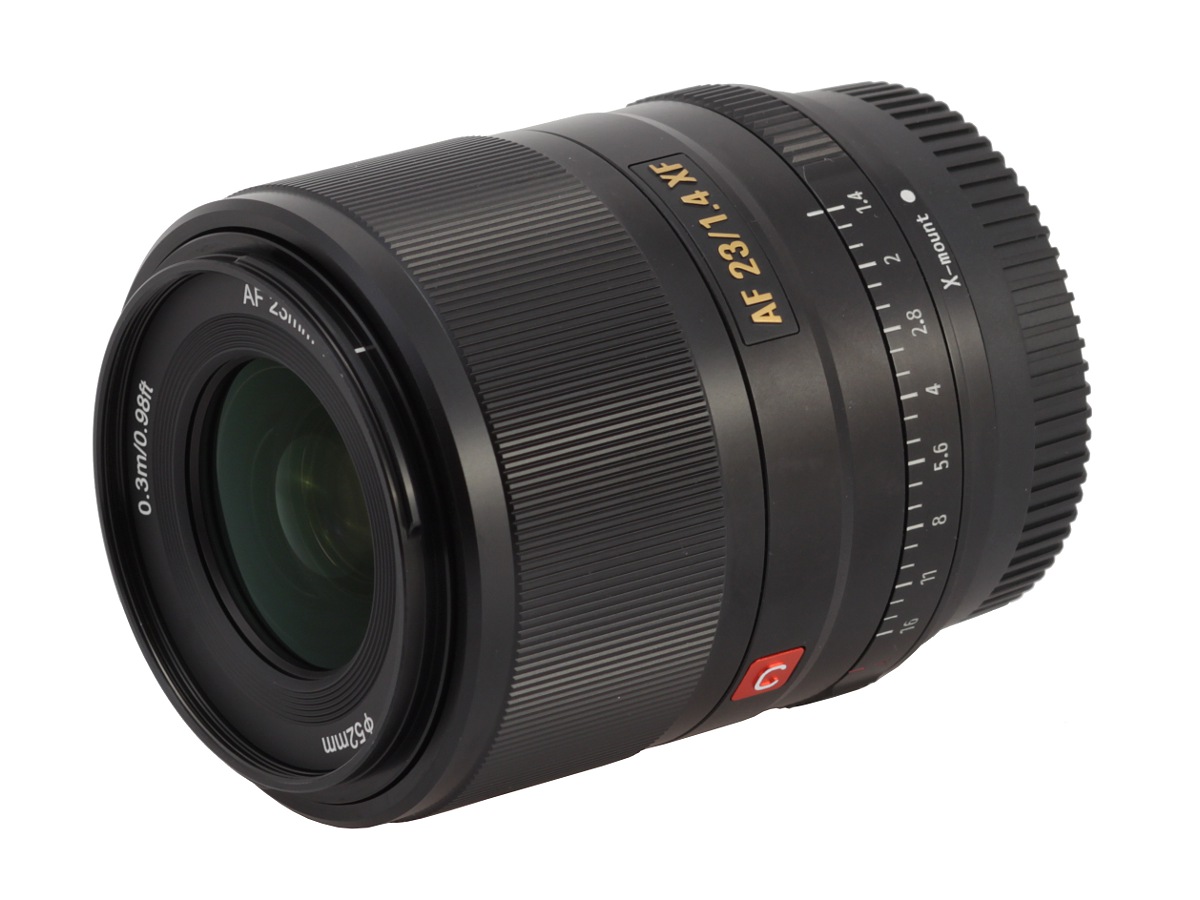

The next part of the barrel is made of metal and it doesn't move. On it you find parameters of the lens (AF 23/1.4 XF), the name of the producer and a red badge with a C letter.

A manual focus ring is the biggest part of the lens's barrel – it is 36 mm wide and almost completely covered by fine ribbing. You can't find any distance and/or depth of field scale on it but the last one does appear on the display of your camera if you choose the manual focusing mode. The ring is a well damped focus-by-wire construction; even if you turn it quickly, running through the whole distance scale needs an angle of over 200 degrees, and that value ensures very precise settings.

Viltrox AF 23 mm f/1.4 XF - Build quality

Out of the manual focus ring sticks a hood mount and that's how the Viltrox ends. The front element is slightly convex, it doesn't move, and is 32 mm in diameter.

Round it you can find a part of the barrel with the name and parameters of the lens and a non-rotating filter thread, 52 mm in diameter.

Viltrox AF 23 mm f/1.4 XF - Build quality

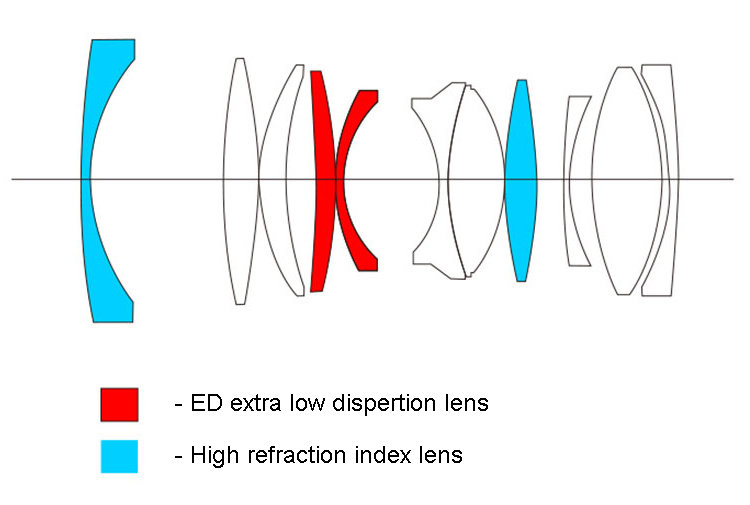

When it comes to optical construction the lens consists of 11 elements positioned in 10 groups. Among them you can find two elements made of low dispersion ED glass and two others made of high refraction index glass. Inside there is also a round aperture with nine blades which can be closed down to a value of f/16 at the maximum.

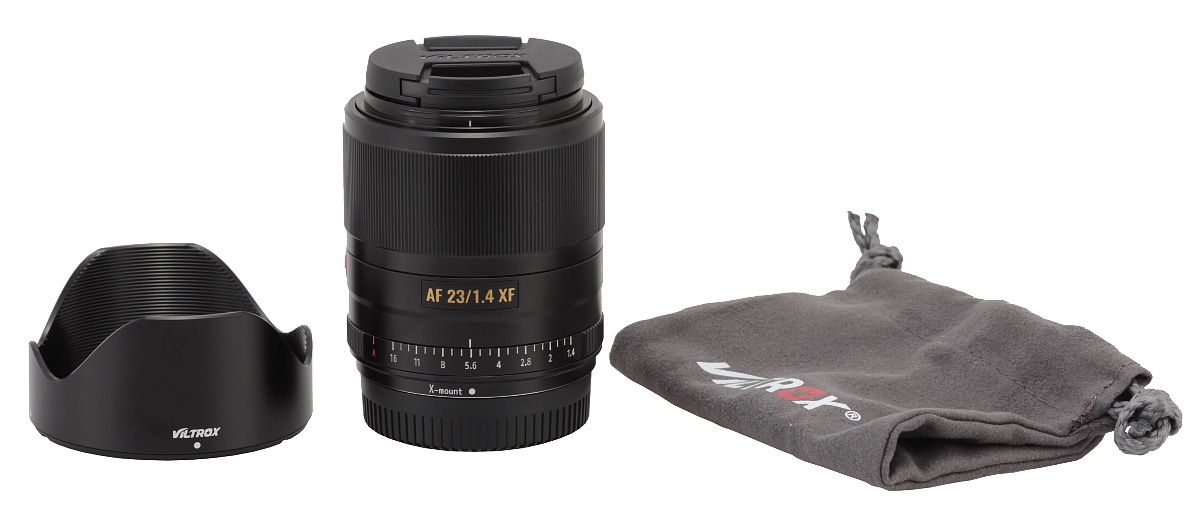

Buyers get in the box with the lens: both caps, a petal-type hood, and a soft pouch.

Viltrox AF 23 mm f/1.4 XF - Build quality

Viltrox AF 23 mm f/1.4 XF - Build quality
