8. Vignetting

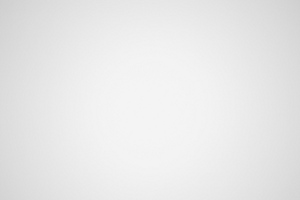

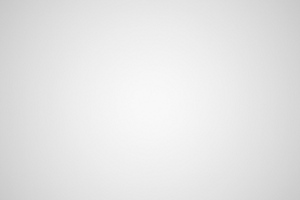

First let's check how the lens performs on the smaller APS-C sensor – appropriate thumbnails you can find below.

A7R II, APS-C, f/1.8 A7R II, APS-C, f/2.0
Samyang AF 75 mm f/1.8 FE - Vignetting Samyang AF 75 mm f/1.8 FE - Vignetting


In this case vignetting doesn't seem problematic – even at the maximum relative aperture that aberration is not especially bothersome, amounting to just 18% (−0.59 EV). Then it decreases to 14% (−0.44 EV) on stopping down the aperture to f/2.0. By f/2.8 vignetting disappears practically completely, reaching just 5% (−0.15 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

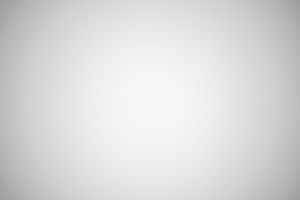

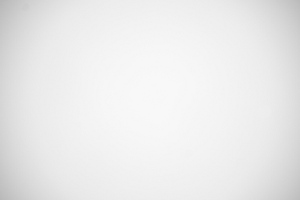

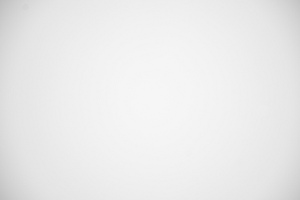

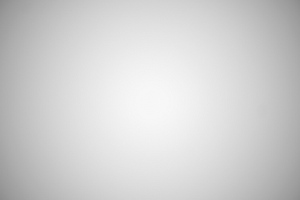

Now let's check the situation on full frame – appropriate thumbnails you can find below.

A7R II, FF, f/1.8 A7R II, FF, f/2.0
Samyang AF 75 mm f/1.8 FE - Vignetting Samyang AF 75 mm f/1.8 FE - Vignetting
A7R II, FF, f/2.8 A7R II, FF, f/4.0
Samyang AF 75 mm f/1.8 FE - Vignetting Samyang AF 75 mm f/1.8 FE - Vignetting


Taking into account small dimensions of the lens we expected here very serious problems and we got a very pleasant surprise. By f/1.8 vignetting reaches 43% (−1.61 EV) – quite a lot but still far lower than in case of other Sony FE mount constructions. For example the Sony FE 1.8/85 at its maximum relative aperture showed brightness loss in frame corners of 58%.

By f/2.0 vignetting decreases to 36% (−1.30 EV), and by f/2.8 it drops further to 25% (−0.83 EV). You are no longer bothered by more serious problems by f/4.0 and f/5.6 apertures, where we got the following values: 21% (−0.68 EV) and 15% (−0.48 EV) respectively. By f/8.0 this aberration gets reduced even more, reaching just 12% (−0.36 EV). Further stopping down doesn't have any measurable influence on vignetting values.

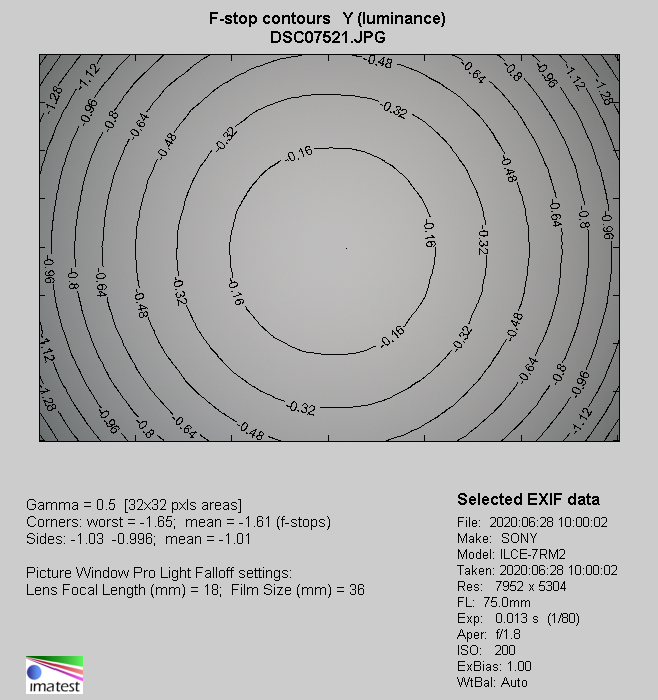

Sony A7R II, JPEG, f/1.8
Samyang AF 75 mm f/1.8 FE - Vignetting
