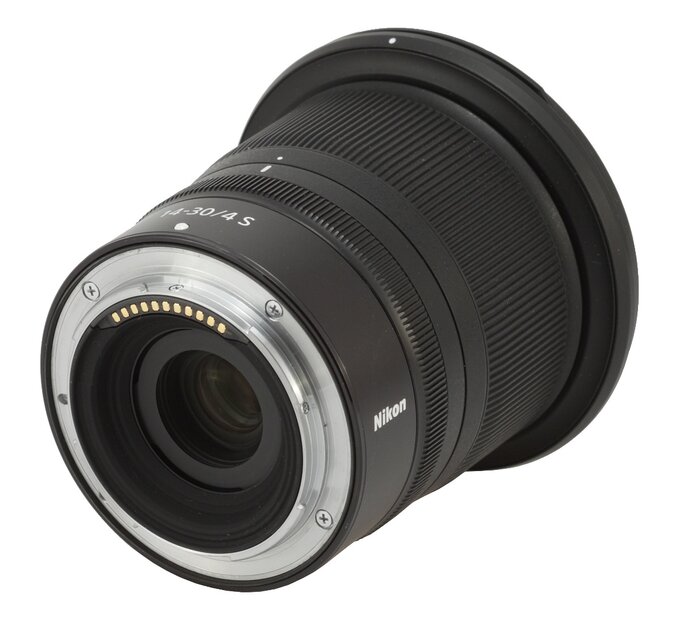

The tested lens starts with a metal mount surrounding contacts and a rear element, 22 mm in diameter. In folded position and at 14 mm that element is a bit deeper than the contacts and when you pass to 30 mm it hides over 2.5 cm deep inside the tube. The interior of that tube is properly blackened but, unfortunately, we noticed many slits and visible electronic parts – you can't say the lens is fully sealed from this side and it's not a piece of good news.
Please Support Us
If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

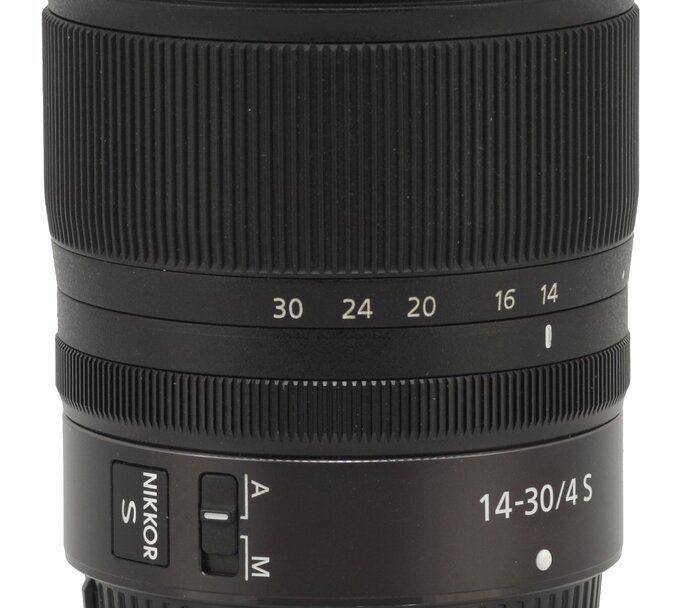

The first part of the proper body of the Nikkor is a black ring made of metal that doesn't move. The ring is 18 mm wide, with a white dot, making an alignment with a camera easier. Apart from the dot it also features an inscription with the lens's parameters, the producers logo, an AF/MF switch, used to control the focusing mechanism working modes, a 'Nikkor S' series plate, a serial number, the focusing mechanism working range (∞–0.28m/0.92ft), and also information that the lens was produced in Thailand.
Then you see a manual focus ring, less than 1 cm wide, covered by fine ribbing. It doesn't feature any distance scale or DOF scale. It is a 'focus-by-wire' stepping construction and its focus throw depends strongly on the speed of your turning. If you move the ring fast it amounts to less than 90 degrees, when you turn it slower you are able to reach even over 180 degrees. With the parameters of the lens both these values are sufficient to allow you very precise settings.
Further on you find another immobile ring, this time made of plastics and devoid of any inscriptions, and a big aperture ring, as wide as 39 mm, most of its surface covered by ribbed rubber armour. Below that ring you see focal length markings at 14, 16, 20, 24, and 30 mm along with a red dot, indicating the resting position of the lens.
When the lens is in its resting position the part of the device sticking out from the body (so minus the mount) is 85 mm long. Passing from the resting position to the14 mm focal length the lens increases to 113 mm and it is at its longest. Increasing the focal length makes the front element system go back and the length of the lens decreases to 101 mm at the 24 mm focal length. When you pass to 30 mm the length of the lens increases a bit once again, this time to 102 mm.

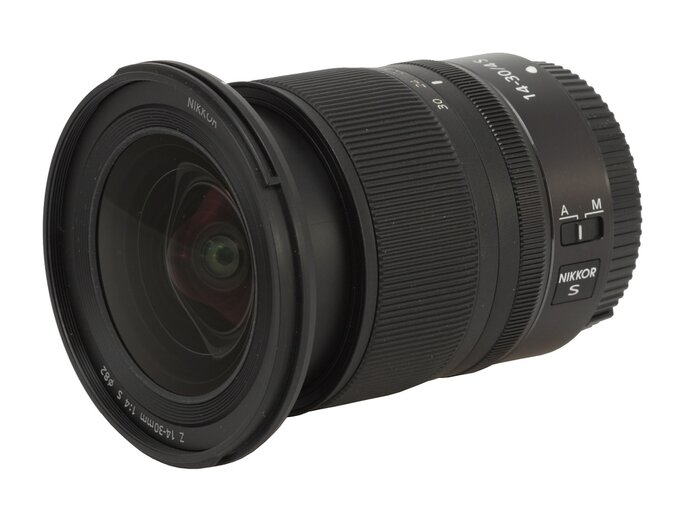

The front element system extends on a homogeneous tube made of plastics. The front element itself is slightly convex, 57 mm in diameter. It is surrounded by an inscription with the name and parameters of the lens, a non-rotating fitler thread, 82 mm in diameter, and a hood mount.
When it comes to optical construction you deal here with as many as 14 elements positioned in 12 groups. The producers weren't skimpy when it comes to special elements: you find here as many as four low dispersion ED glass elements and four others that are aspherical in shape. Inside there is also a round aperture with seven blades which can be closed down to a value of f/22 at the maximum. The producers also boast of Nano Crystal Coat and super-hydrophobic fluorine coating, covering the surface of all outer optical elements.

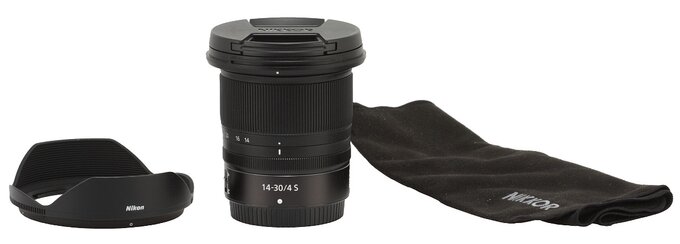

Buyers get in the box with the lens: two caps, a soft pouch and a petal-type hood.
