LensTip.com

Lens review

Sigma C 65 mm f/2 DG DN

27 February 2021
Maciej Latałło

8. Vignetting

First, let's check vignetting levels for the smaller APS-C sensor – appropriate thumbnails you can find below.

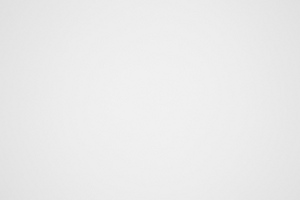

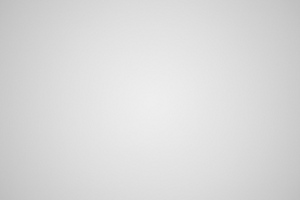

A7R II, APS-C, f/2.0 A7R II, APS-C, f/2.8
Sigma C 65 mm f/2 DG DN - Vignetting Sigma C 65 mm f/2 DG DN - Vignetting


In this case some chances to notice vignetting you get only at the maximum relative aperture where its level amounts to 19% (−0.62 EV). By f/2.8 it decreases to a practically imperceptible value of 7% (−0.20 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to the bigger, full frame sensor there are a bit more problems and you can see them very well in photos below.

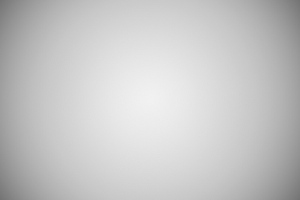

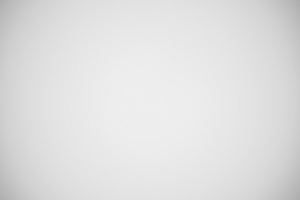

A7R II, FF, f/2.0 A7R II, FF, f/2.8
Sigma C 65 mm f/2 DG DN - Vignetting Sigma C 65 mm f/2 DG DN - Vignetting

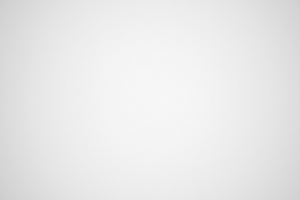

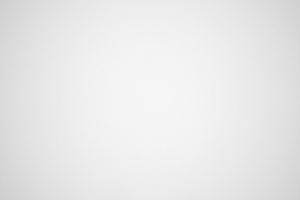

A7R II, FF, f/4.0 A7R II, FF, f/5.6
Sigma C 65 mm f/2 DG DN - Vignetting Sigma C 65 mm f/2 DG DN - Vignetting


At the maximum relative aperture we got a result reaching a high level of 51% (−2.08 EV). What's interesting, when compared to its direct rivals, the Sigma actually fares pretty well. The Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro, mentioned already in this test, a lens of siginifcant physical dimensions, had a result of 54%; the Sony Carl Zeiss Sonnar T* FE 55 mm f/1.8 ZA by f/1.8 could reach even 59% and on stopping down its aperture to f/2.0 the result of 53% still was weaker than that the Sigma .

Stopping down the aperture of the tested Sigma is quite effective when it comes to vignetting reduction because by f/2.8 you can decrease its level to 27% (−0.91 EV), and by f/4.0 that aberration becomes not especially bothersome, dropping to just 16% (−0.51 EV). Further stopping down doesn't have any measurable effect on the aberration, described in this chapter.

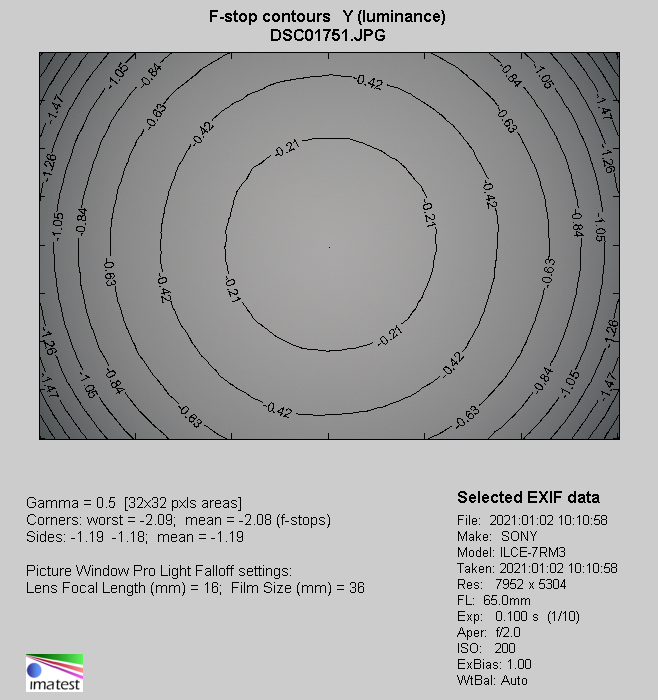

Sony A7R III, JPEG, f/2.0
Sigma C 65 mm f/2 DG DN - Vignetting
