LensTip.com

Lens review

Samyang AF 35 mm f/1.8 FE

7 May 2021
Maciej Latałło

8. Vignetting

First, let's check the vignetting performance on the smaller APS-C sensor – appropriate thumbnails you can find below.

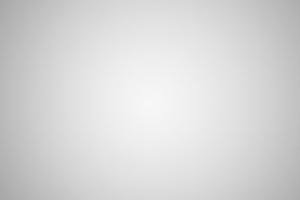

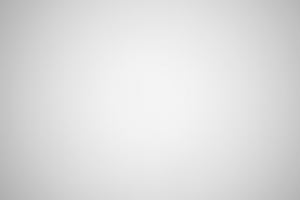

A7R III, APS-C, f/1.8 A7R III, APS-C, f/2.0
Samyang AF 35 mm f/1.8 FE - Vignetting Samyang AF 35 mm f/1.8 FE - Vignetting


Small physical dimensions of this lens mean you can notice vignetting even on the APS-C class sensor. At the maximum relative aperture that aberration reaches 31% (−1.06 EV) and it decreases to 26% (−0.89 EV) on stopping down the aperture to f/2.0. Problems end by f/2.8 and f/4.0, where we got the following results: 13% (−0.41 EV) and 11% (−0.34 EV) respectfully.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now it's time to examine the situation on full frame – appropriate thumbnails can be found below.

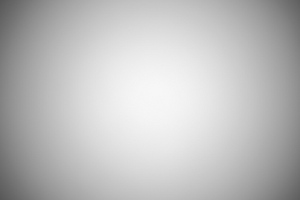

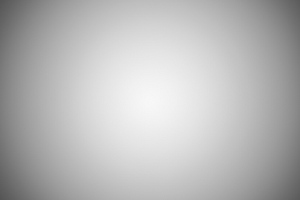

A7R III, FF, f/1.8 A7R III, FF, f/2.0
Samyang AF 35 mm f/1.8 FE - Vignetting Samyang AF 35 mm f/1.8 FE - Vignetting

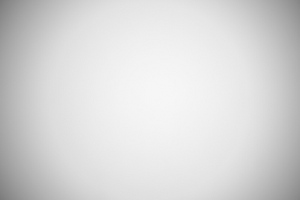

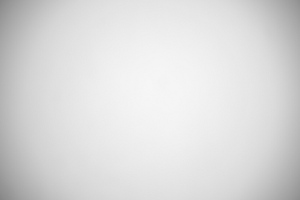

A7R III, FF, f/2.8 A7R III, FF, f/4.0
Samyang AF 35 mm f/1.8 FE - Vignetting Samyang AF 35 mm f/1.8 FE - Vignetting


According to our expectations there are a lot of visible issues. Vignetting not only reaches high values but also only moderately well reacts to stopping down. By f/1.8 we got a value of 64% (−2.98 EV), which decreases just slightly to 63% (−2.86 EV) after applying the f/2.0 relative aperture. Brightness loss in frame corners remains significant also by f/2.8 and f/4.0, where we got, respectively, 47% (−1.86 EV) and 43% (−1.63 EV). By f/5.6 this aberration reaches 36% (−1.31 EV), by f/8.0 it amounts to 31% (−1.09 EV), and by f/11.0 it decreases to 30% (−1.02 EV). By f/16.0 the vignetting level remains, within margin of error, the same as by f/11.

Even if in this category the Samyang presents results that can hardly be called good, it still performs better than the more expensive Sony FE 1.8/35.

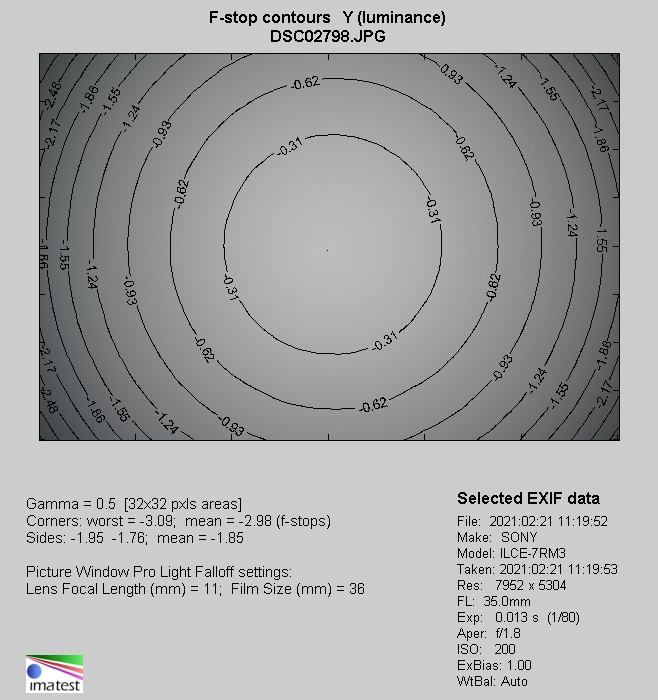

Sony A7R III, JPEG, f/1.8
Samyang AF 35 mm f/1.8 FE - Vignetting
