Lens review

Fujifilm Fujinon XF 18 mm f/1.4 R LM WR

22 June 2021
Maciej Latałło

8. Vignetting

First let's check the performance of the tested lens on both JPEG and RAW files developped by independent software.

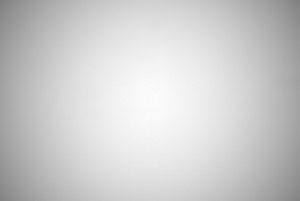

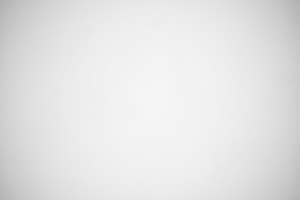

X-E1, JPEG, f/1.4 X-E1, RAW, f/1.4
Fujifilm Fujinon XF 18 mm f/1.4 R LM WR - Vignetting Fujifilm Fujinon XF 18 mm f/1.4 R LM WR - Vignetting

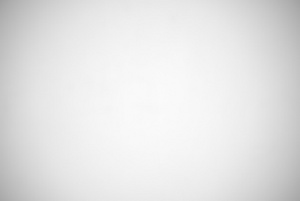

X-E1, JPEG, f/2.0 X-E1, RAW, f/2.0
Fujifilm Fujinon XF 18 mm f/1.4 R LM WR - Vignetting Fujifilm Fujinon XF 18 mm f/1.4 R LM WR - Vignetting

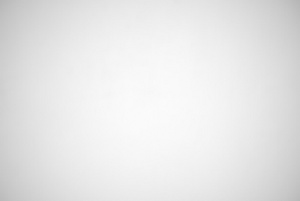

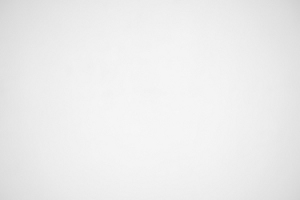

X-E1, JPEG, f/2.8 X-E1, RAW, f/2.8
Fujifilm Fujinon XF 18 mm f/1.4 R LM WR - Vignetting Fujifilm Fujinon XF 18 mm f/1.4 R LM WR - Vignetting


It is clear that vignetting is corrected on JPEG files and you can't switch that process off. As a result its level is rather low. By f/1.4 brightness loss in frame corners amounts to 27% (-0.90 EV) and it decreases to 18% (-0.58 EV) on stopping down the aperture to f/2.0. By f/2.8 and higher apertures vignetting keeps the same level of 13% (-0.42 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Only while examining RAW files you can see the real level of this aberration. At the maximum relative aperture it amounts to 48% (-1.87 EV). It's a high value but, if you take into account the aperture fastness and angle of view, you can say the Fujinon still managed to emerge unscathed. Especially that by f/2.0 vignetting decreases to 38% (-1.18 EV), by f/2.8 it drops to 26% (-0.86 EV), and by f/4.0 it is diminished even a bit more, to 25% (-0.85 EV). Further stopping down doesn't have any measureable influence on the aberration described here.

Fujifilm X-T2, RAW, f/1.4
Fujifilm Fujinon XF 18 mm f/1.4 R LM WR - Vignetting
